Relay Test

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove starter relay from PDC. See Fig 1.
  2. A relay in de-energized position should have continuity between terminals 87A and 30, and no continuity between terminals 87 and 30. If OK, go to step  3. If not OK, replace faulty relay.
  3. Resistance between terminals 85 and 86 (electromagnet) should be 75 +/- 5 ohms. If OK, go to step  4. If not OK, replace faulty relay.
  4. Connect a battery to terminals 85 and 86. There should now be continuity between terminals 30 and 87, and no continuity between terminals 87A and 30. If OK, perform following Relay Circuit Test. If not OK, replace faulty relay.

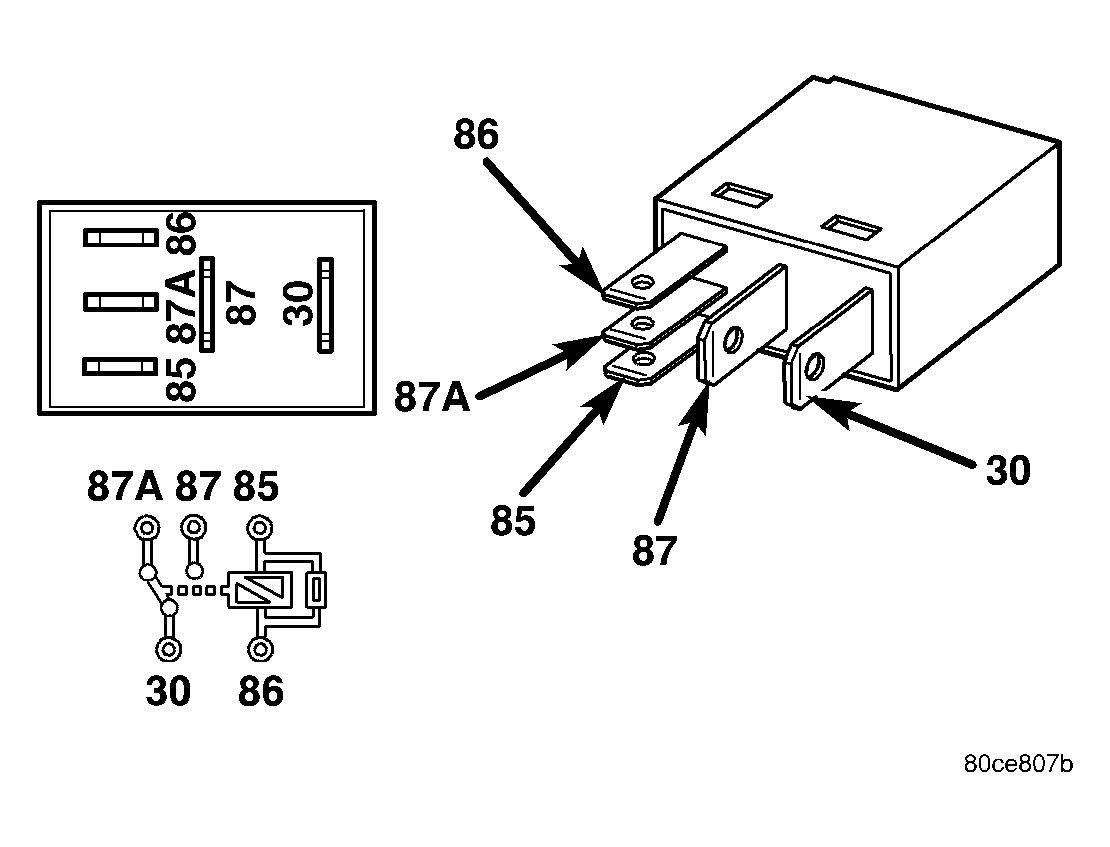

Fig 1: Starter Relay (ISO Micro Relay)
GC0026390Courtesy of DAIMLERCHRYSLER CORP.
30 - COMMON FEED
85 - COIL GROUND
86 - COIL BATTERY
87 - NORMALLY OPEN
87A - NORMALLY CLOSED
