Rear Door

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

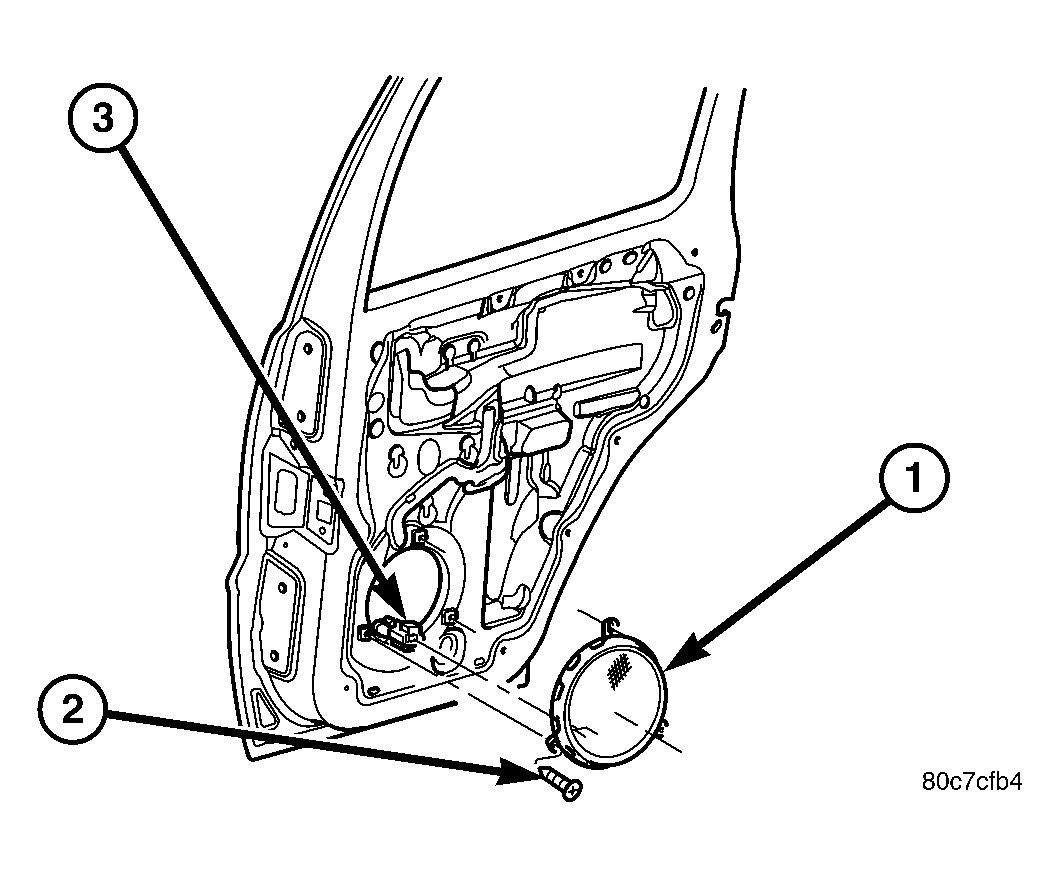

Fig 1: REAR DOOR SPEAKER
GC0026351Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the rear door trim panel (Refer to BODY/DOORS - REAR/TRIM PANEL - REMOVAL) .
  3. Remove the speaker mounting fasteners. See Fig 1.
  4. Remove the speaker (1) from the door and disconnect the wire harness connector (3).
