Remote Switches: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DISABLE THE AIRBAG SYSTEM BEFORE ATTEMPTING ANY STEERING WHEEL, STEERING COLUMN, SEAT BELT TENSIONER, SIDE AIRBAG, OR INSTRUMENT PANEL COMPONENT DIAGNOSIS OR SERVICE. DISCONNECT AND ISOLATE THE BATTERY NEGATIVE (GROUND) CABLE, THEN WAIT TWO MINUTES FOR THE AIRBAG SYSTEM CAPACITOR TO DISCHARGE BEFORE PERFORMING FURTHER DIAGNOSIS OR SERVICE. THIS IS THE ONLY SURE WAY TO DISABLE THE AIRBAG SYSTEM. FAILURE TO TAKE THE PROPER PRECAUTIONS COULD RESULT IN ACCIDENTAL AIRBAG DEPLOYMENT AND POSSIBLE PERSONAL INJURY.

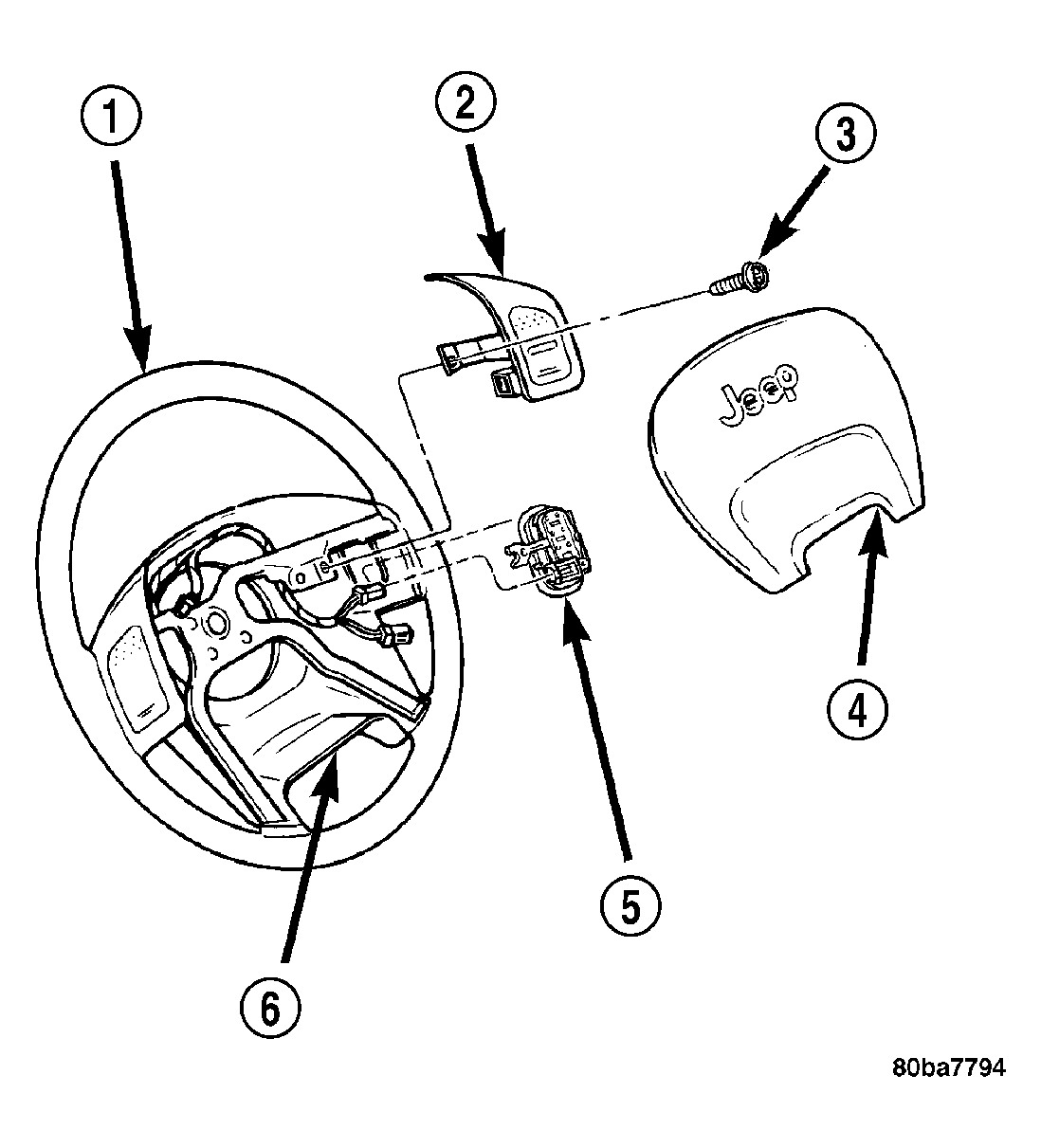

Fig 1: REMOTE RADIO SWITCHES

Courtesy of DAIMLERCHRYSLER CORP.

Disconnect and isolate the battery negative cable.
Remove the driver side airbag from the vehicle (Refer to ELECTRICAL/RESTRAINTS/DRIVER AIRBAG - REMOVAL) .
Remove the speed control switches. See Fig 1.
Unplug the wire harness connector from the remote radio switch (5).
Depress the tabs on each side of each switch and push the switch through the rear steering wheel cover.
