Section 521 (Audio System & Video System): Radio: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

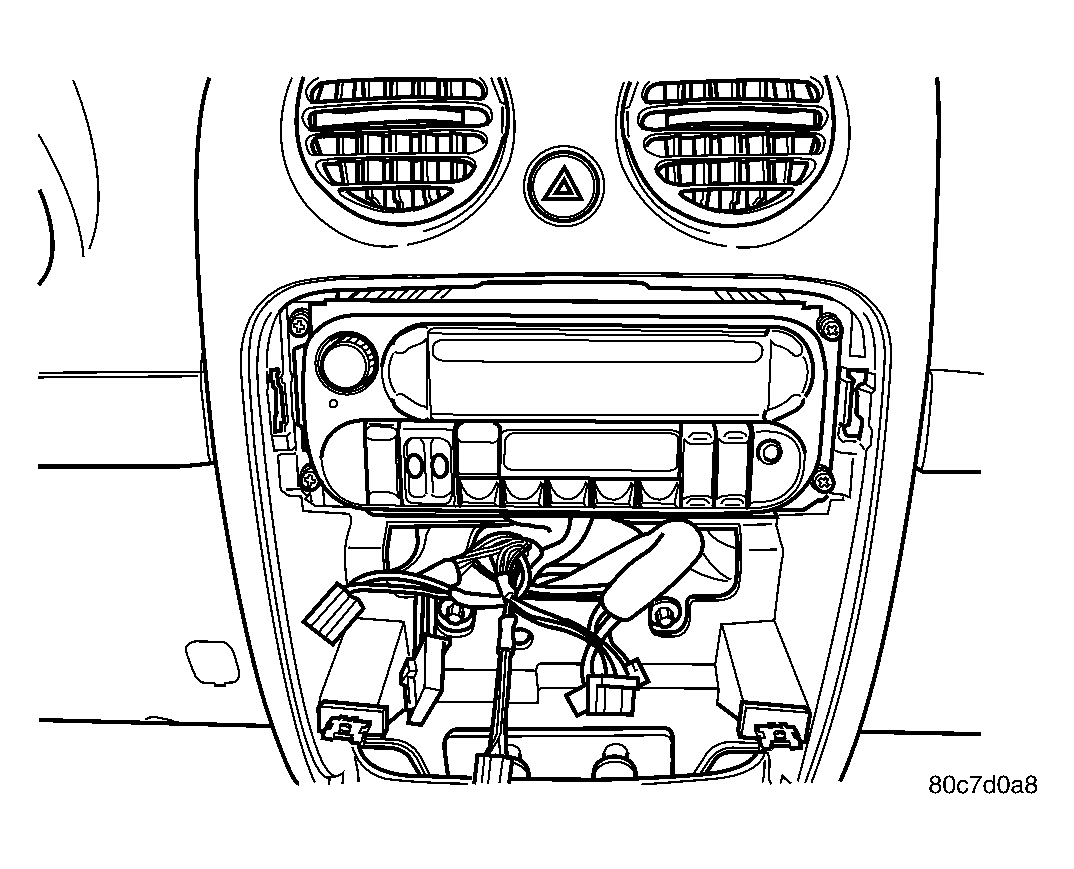

Fig 1: RADIO
GC0026325Courtesy of DAIMLERCHRYSLER CORP.
  1. Disconnect and isolate the battery negative cable.
  2. Remove the instrument panel center trim panel.
  3. Remove the radio mounting fasteners. See Fig 1.

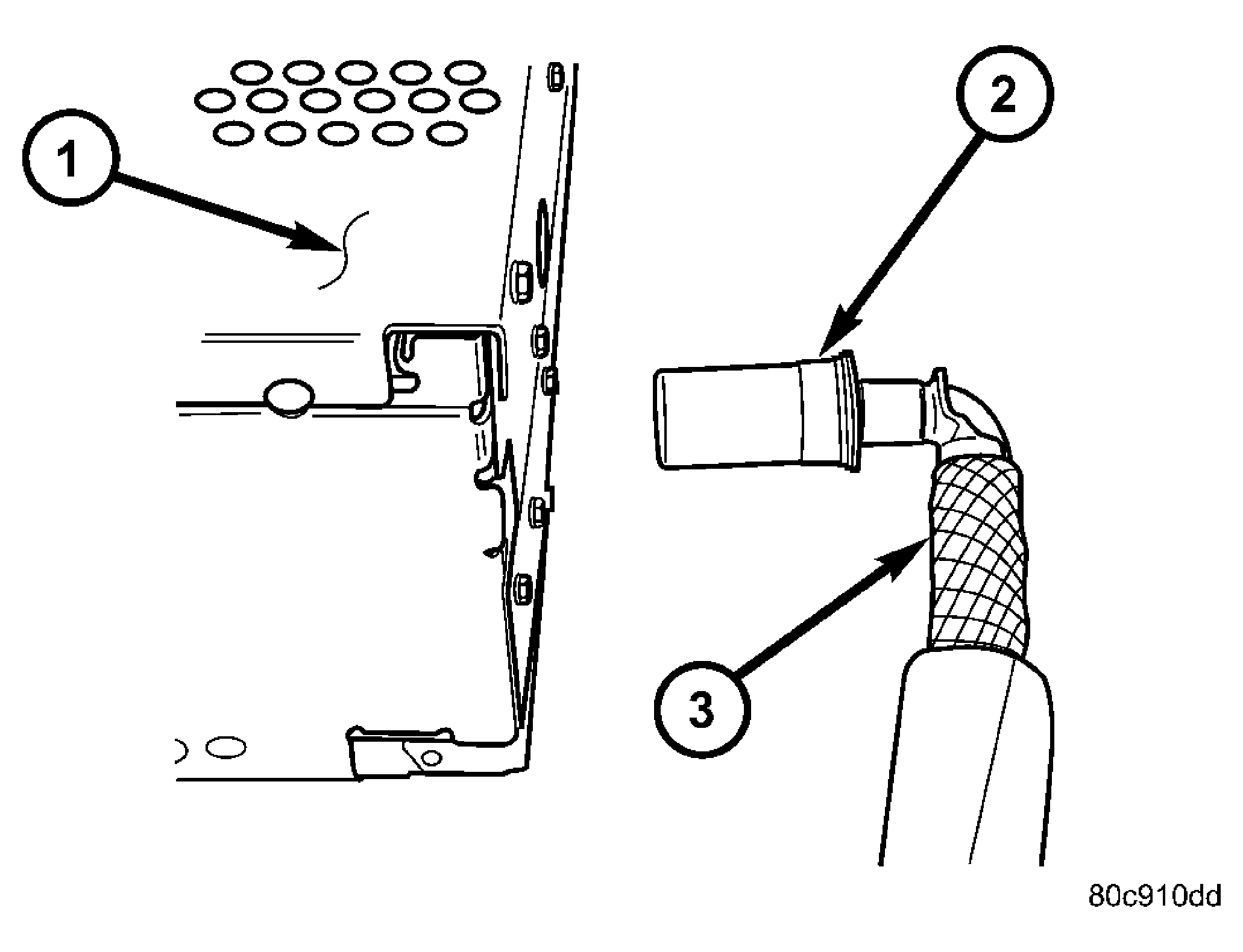

    Fig 2: Antenna To Radio
    GC0022858Courtesy of DAIMLERCHRYSLER CORP.
    CAUTION: Pulling the antenna cable straight out of the radio without pulling on the locking antenna connector could damage the cable or radio.
  4. Disconnect the antenna cable by pulling the locking antenna connector (2) away from the radio. See Fig 2.
  5. Disconnect the electrical harness connector(s).
  6. Remove radio from instrument panel.
