Amplifier Choke And Relay: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the battery negative cable.
- Remove knee blocker cover and knee blocker.

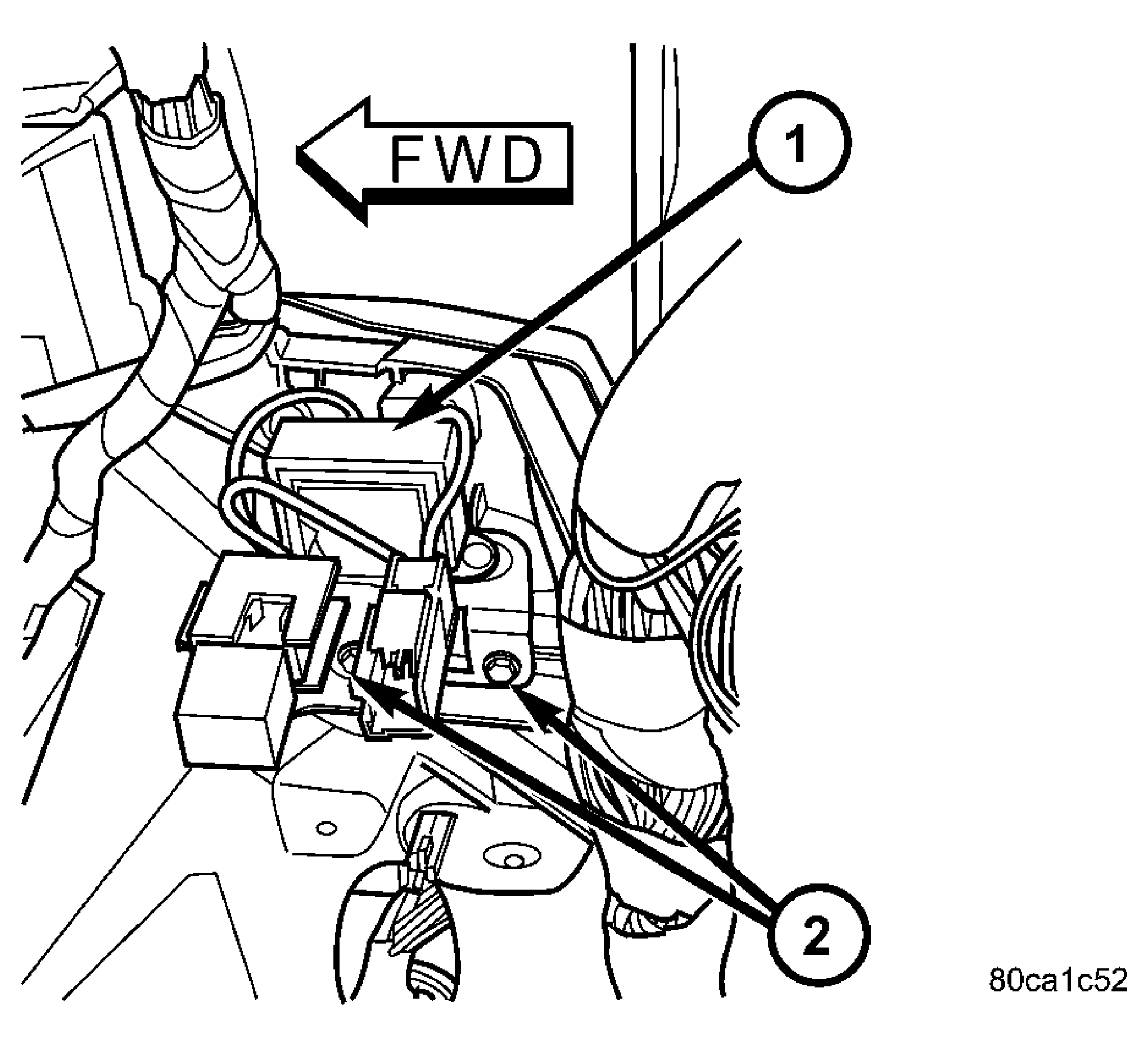

- Disconnect the electrical harness connector from the amplifier choke and relay. See Fig 1.
- Remove mounting fasteners and amplifier choke and relay (1).
