Crankshaft Position Sensor: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

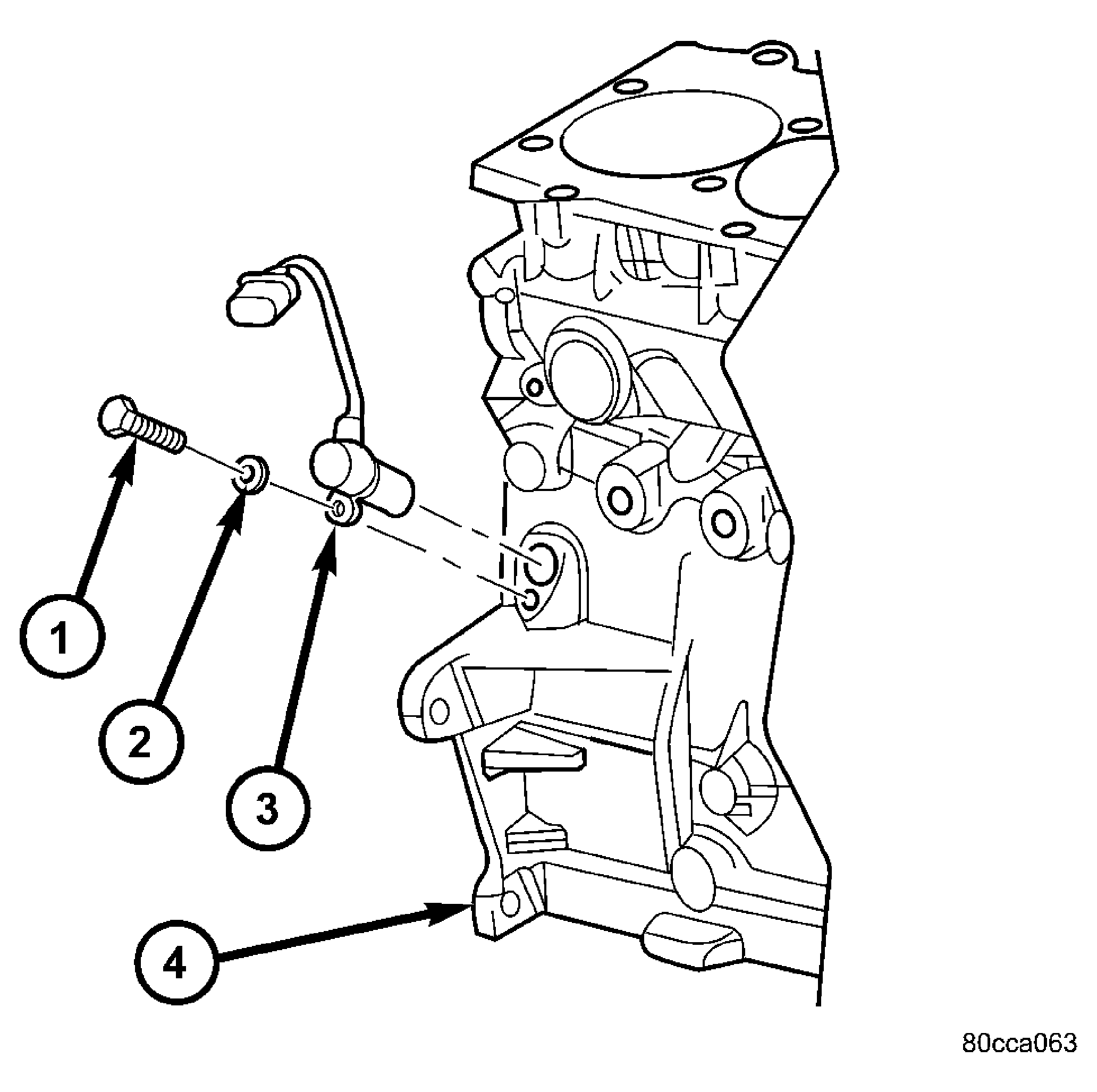

| 1 - RETAINING BOLT |
| 2 - WASHER |
| 3 - CRANKSHAFT POSITION (CKP) SENSOR |
| 4 - ENGINE BLOCK |
- Disconnect negative battery cable.
- Raise vehicle on hoist.
- Remove exhaust pipe to turbocharger down pipe retaining bolts and lower exhaust pipe from turbocharger downpipe.
- Disconnect crankshaft position sensor electrical connector.
- Remove the heat shield.
- Remove crankshaft position sensor retaining bolt and remove sensor from engine block. See Fig 1.
