Crankshaft Position Sensor: Description
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

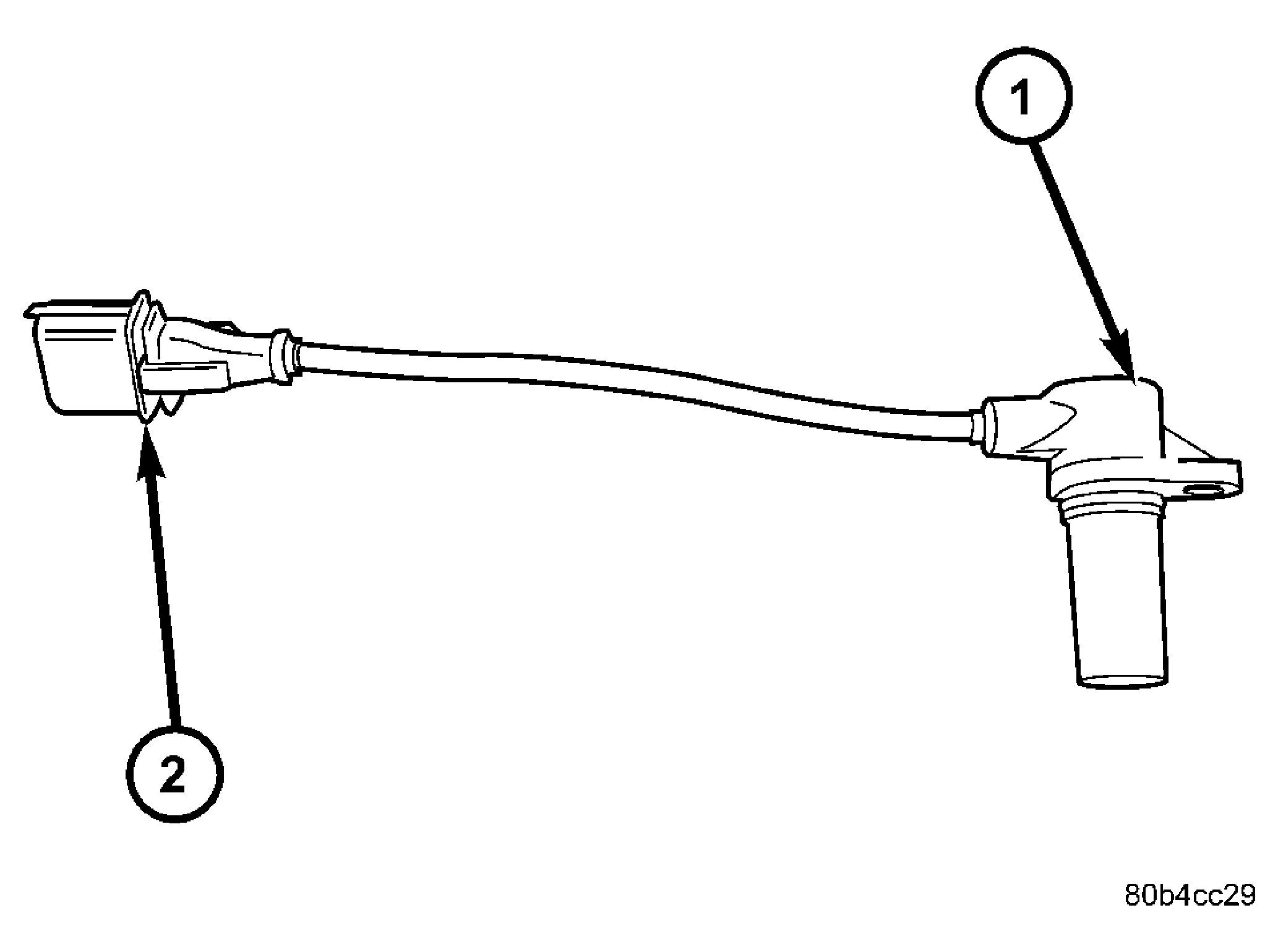

The crankshaft position sensor is mounted in the right rear of the engine block, below the turbocharger, behind a heat shield. See Fig 1. This sensor is used to detect engine speed.
| 1 - CRANKSHAFT POSITION SENSOR |
| 2 - CRANKSHAFT POSITION SENSOR ELECTRICAL CONNECTOR |
