Boost Pressure Sensor: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable.
Remove engine cover and bracket assembly (Refer to ENGINE COVER - REMOVAL) or (Refer to ENGINE COVER - REMOVAL) or (Refer to ENGINE COVER - REMOVAL) .
Disconnect sensor electrical connector. See Fig 1.
Remove retaining bolts and remove sensor from cylinder head cover/intake manifold. See Fig 1.

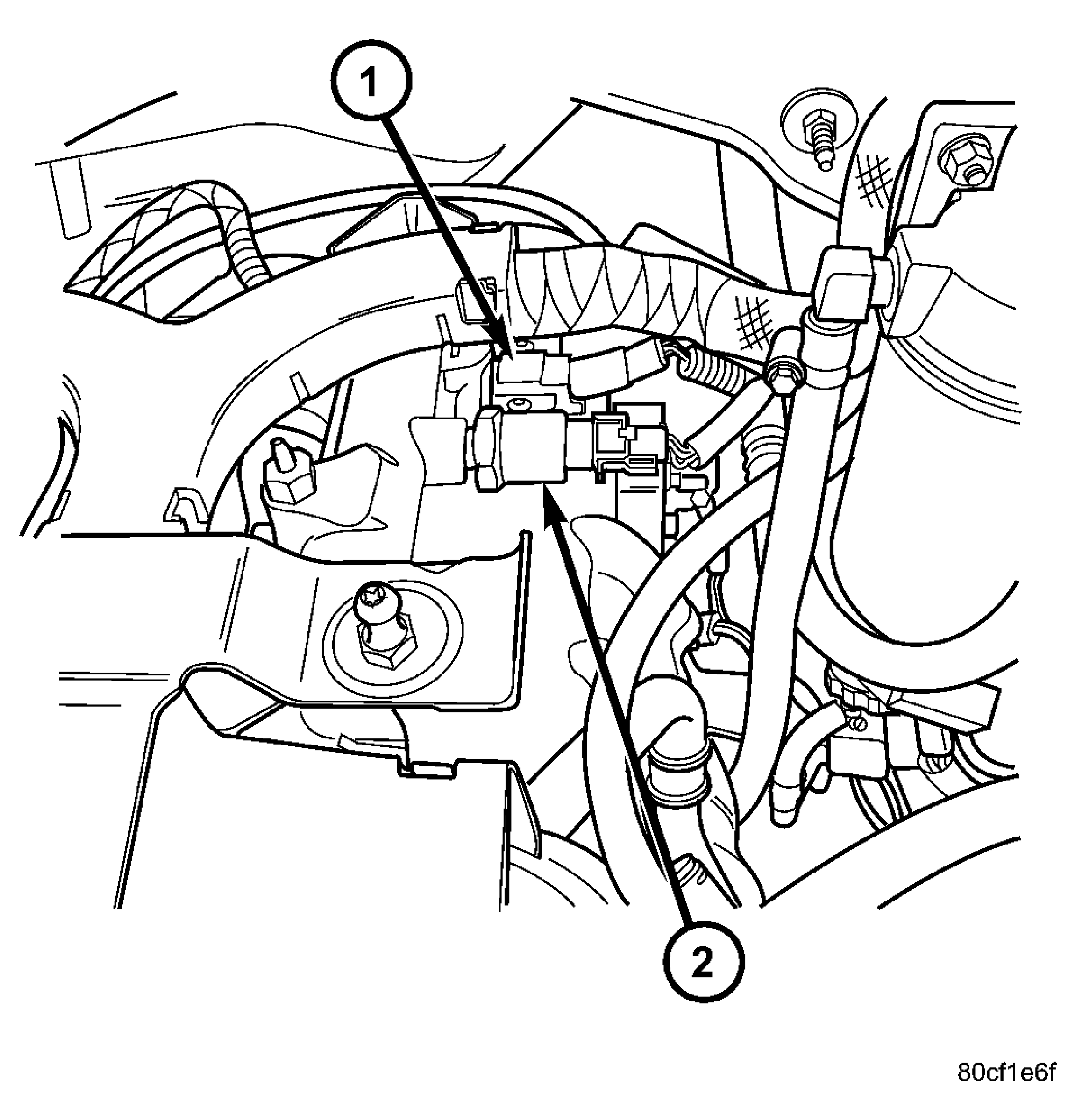

Fig 1: SENSOR LOCATIONS

Courtesy of DAIMLERCHRYSLER CORP.

1 - BOOST PRESSURE/INTAKE AIR TEMPERATURE SENSOR

2 - FUEL RAIL PRESSURE SENSOR
