Throttle Control Cable: Removal: 2.4L
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Be careful not to damage or kink the cable core wire (within the cable sheathing) while servicing accelerator pedal or throttle cable.

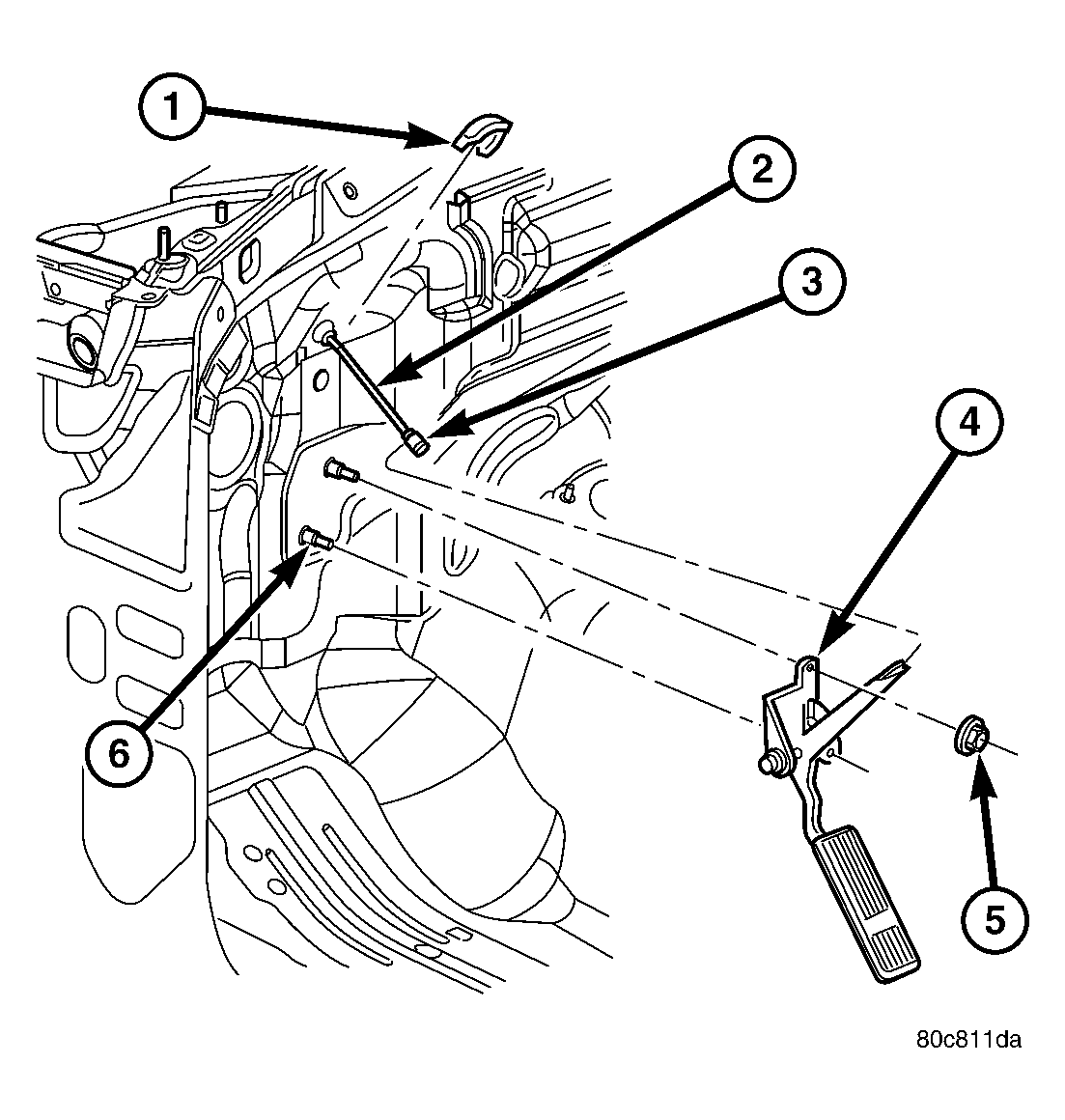

| 1 - METAL THROTTLE CABLE CLIP |
| 2 - THROTTLE CABLE |
| 3 - PLASTIC CABLE RETAINER |
| 4 - PEDAL/BRACKET ASSEMBLY |
| 5 - PEDAL MOUNTING NUTS (2) |
| 6 - PEDAL MOUNTING STUDS (2) |

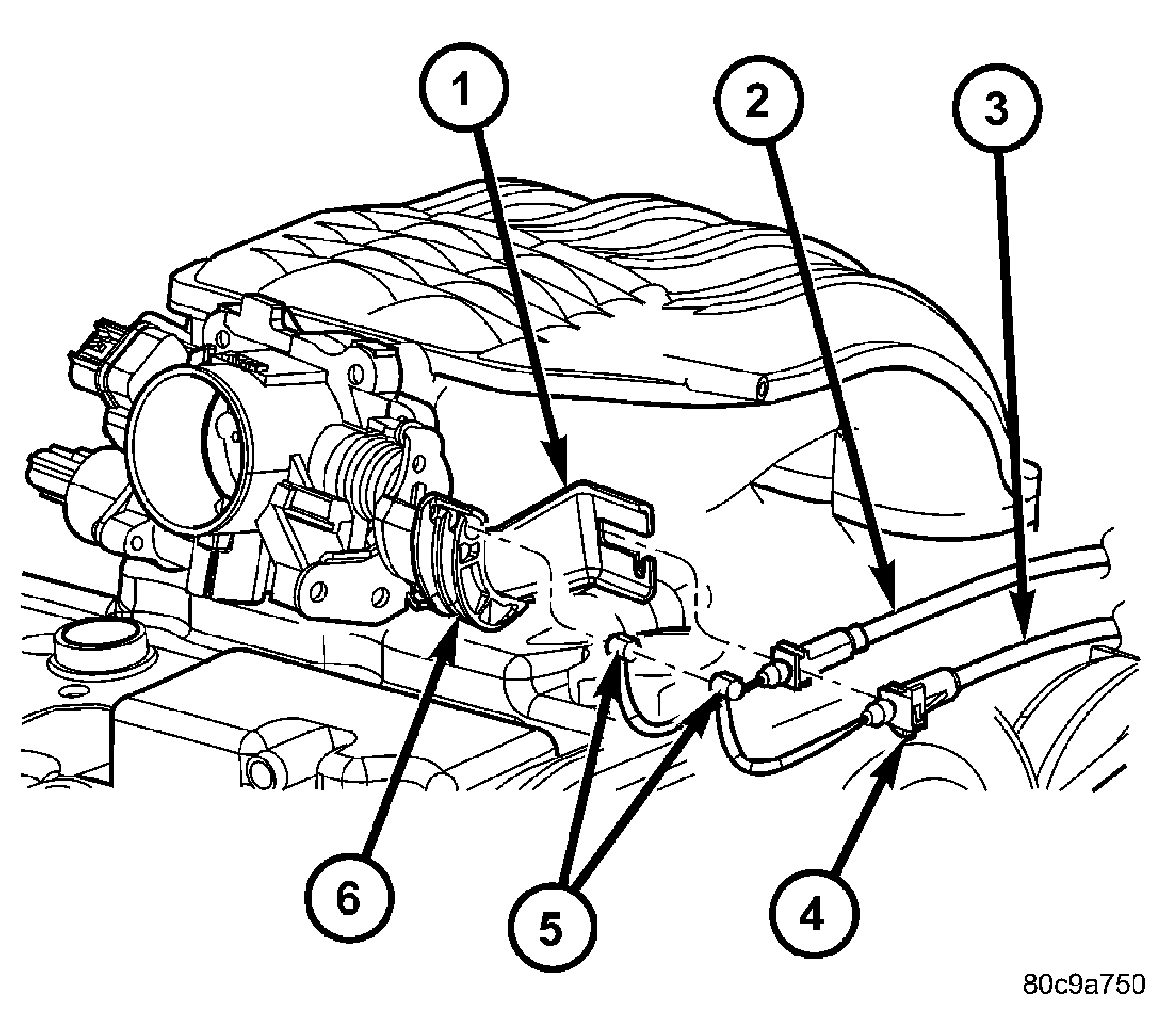

| 1 - MOUNTING BRACKET |
| 2 - SPEED CONTROL CABLE |
| 3 - THROTTLE CABLE |
| 4 - RELEASE TAB |
| 5 - CABLE PINS |
| 6 - BELLCRANK |
- From inside vehicle, hold up accelerator pedal. Remove plastic cable retainer (clip) and throttle cable core wire from upper end of pedal arm. See Fig 1. Plastic cable retainer snaps into top of pedal arm.
- Remove cable core wire at pedal arm.
- From inside vehicle, remove metal clip holding cable to dashpanel. See Fig 1.
- Remove air box at throttle body.
- Unsnap cable from dashpanel routing clip.
- Remove cable housing from dash panel and pull into engine compartment.
- Hold throttle in wide open position. While held in this position, slide throttle cable pin from throttle body bellcrank. See Fig 2.
- Using a pick or small screwdriver, press release tab to release plastic cable mount from bracket. See Fig 2. Press on tab only enough to release cable from bracket. If tab is pressed too much, it will be broken. To remove throttle cable from throttle body bracket, slide cable towards front of vehicle.
- Remove throttle cable from vehicle.
