Map Sensor: Removal: 2.4L
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
The Manifold Absolute Pressure (MAP) sensor is mounted into the rear of the intake manifold. See Fig 1. An o-ring is used to seal the sensor to the intake manifold. See Figure.
- Disconnect electrical connector at sensor.
- Clean area around MAP sensor.
- Remove sensor mounting screw (TORX head).
- Remove MAP sensor from intake manifold.
- Check condition of sensor o-ring. See Figure.

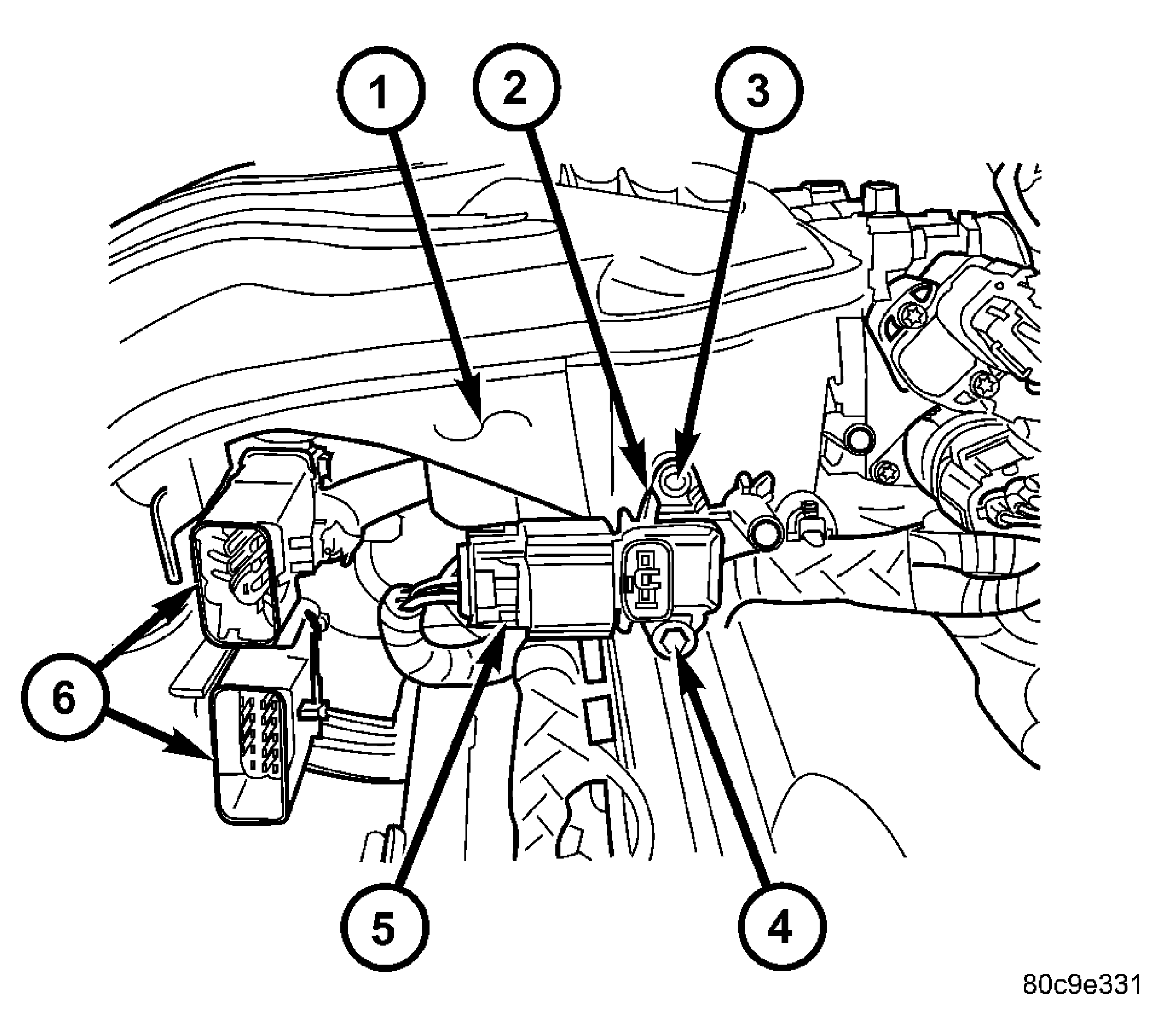

| 1 - REAR OF INTAKE MANIFOLD |
| 2 - MAP SENSOR |
| 3 - ALIGNMENT PIN |
| 4 - MOUNTING BOLT (TORX) |
| 5 - ELECTRICAL CONNECTOR |
| 6 - MAIN ENGINE HARNESS CONNECTORS |
