Intake Air Temperature Sensor: Installation: 3.7L
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

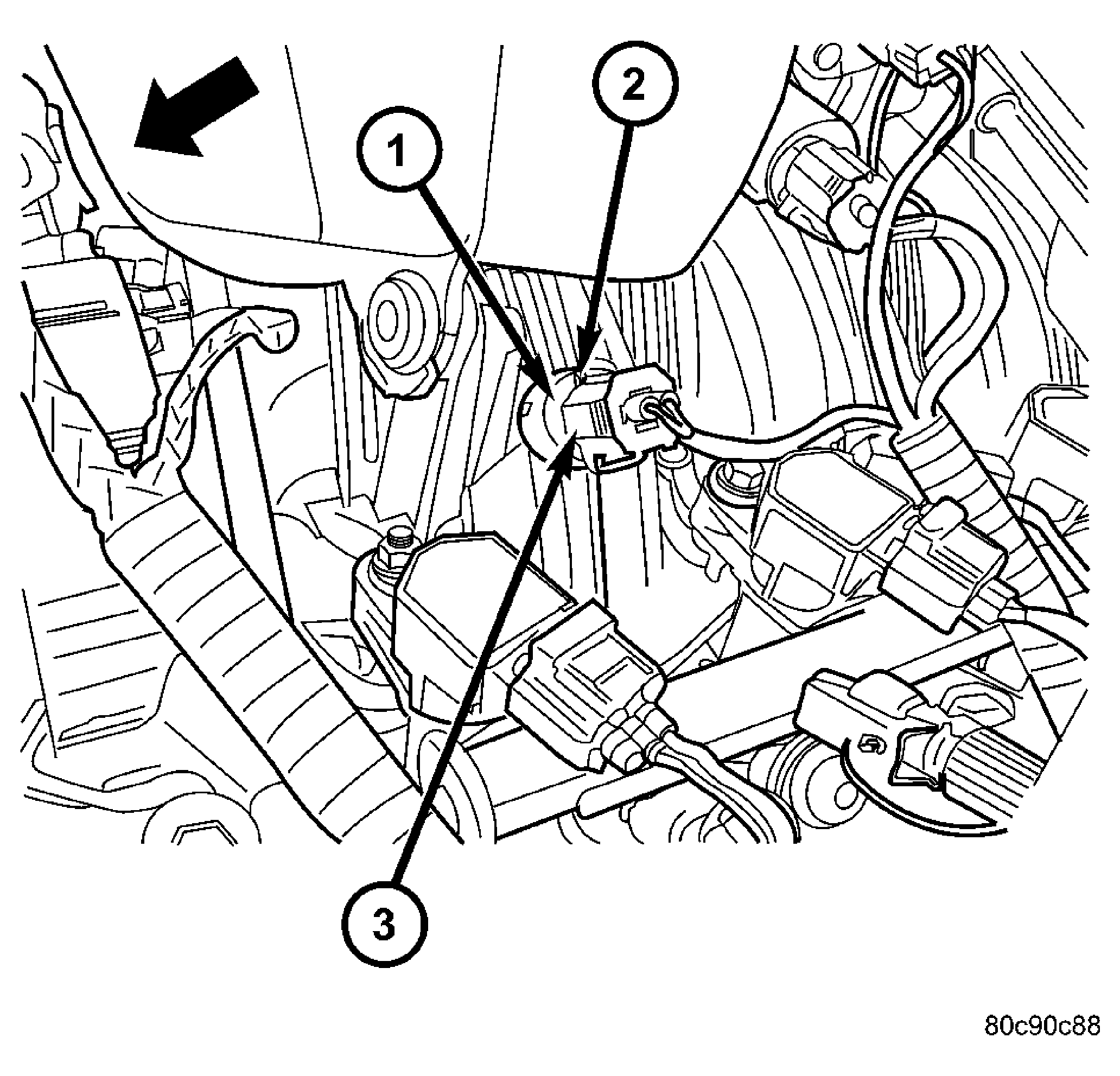

The intake manifold air temperature (IAT) sensor is installed into the left side of intake manifold plenum. See Figure.
- Check condition of sensor o-ring.
- Clean sensor mounting hole in intake manifold.
- Position sensor into intake manifold and rotate clockwise until past release tab. See Figure.
- Install electrical connector.
