Idle Air Control Motor: Removal: 2.4L

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

The Idle Air Control (IAC) motor is located on the rear side of the throttle body. See Fig 1.

Disconnect electrical connector from IAC motor.
Remove two mounting bolts (screws).
Remove IAC motor from throttle body.

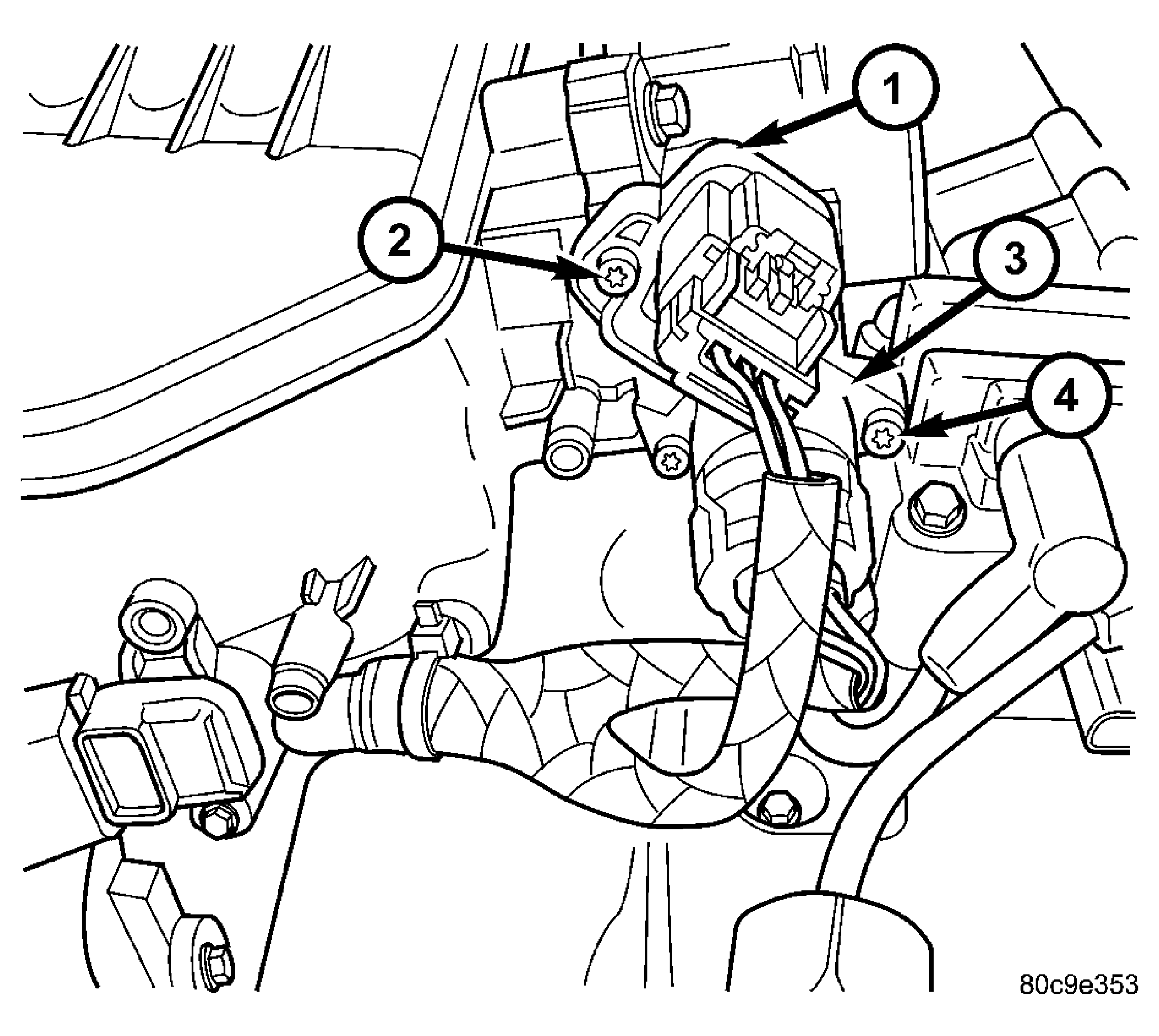

Fig 1: TPS/IAC MOTOR - 2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1 - THROTTLE POSITION SENSOR (TPS)

2 - MOUNTING SCREWS

3 - IDLE AIR CONTROL MOTOR (IAC)

4 - MOUNTING SCREWS
