Fuel Injector: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove fuel rail. Refer to REMOVAL .

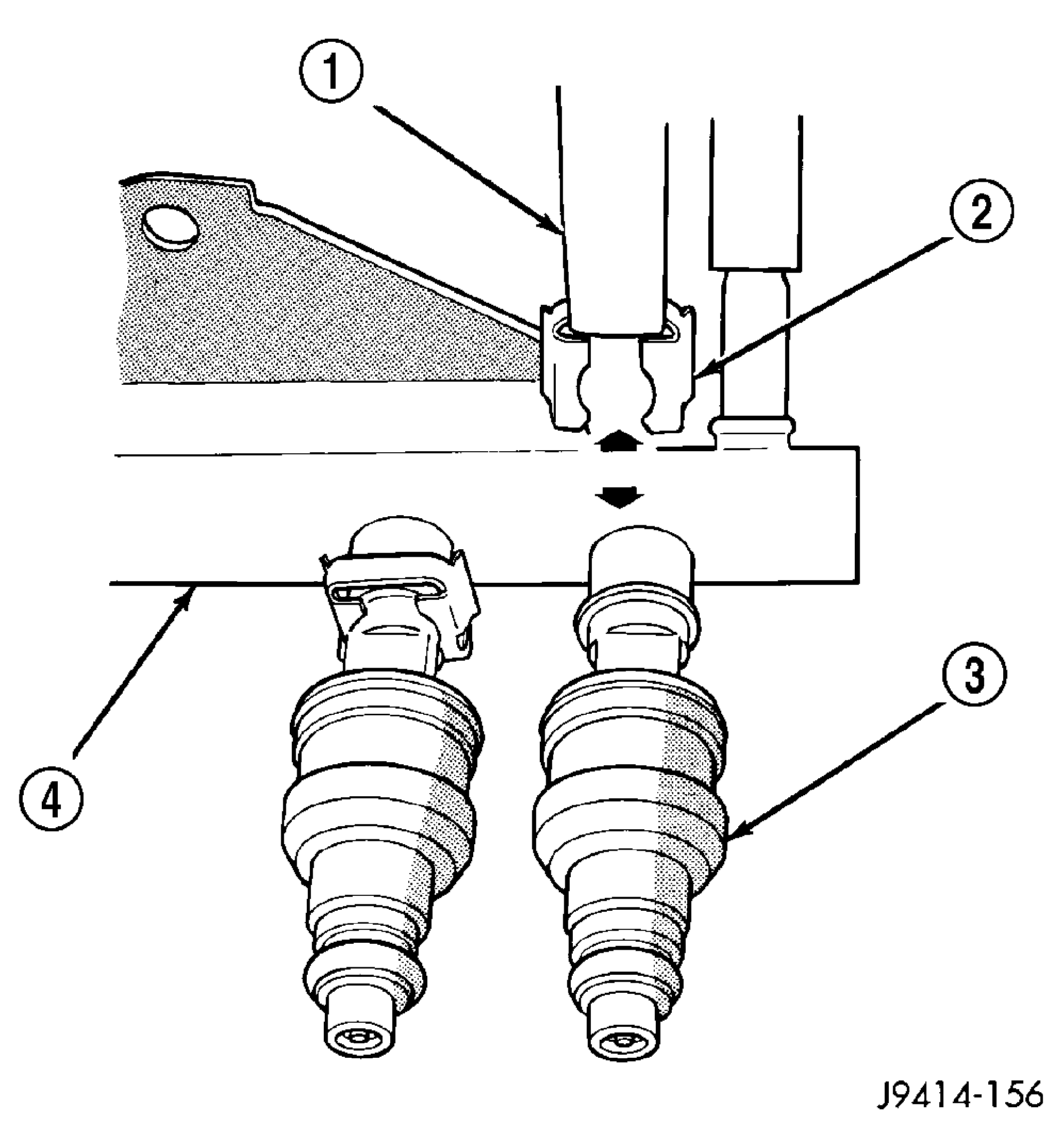

- Disconnect clip(s) that retain fuel injector(s) to fuel rail. See Fig 1.
Courtesy of DAIMLERCHRYSLER CORP.
| 1 - PLIERS |
| 2 - INJECTOR CLIP |
| 3 - FUEL INJECTOR |
| 4 - FUEL RAIL - TYPICAL |
