Fuel Injector: Description
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

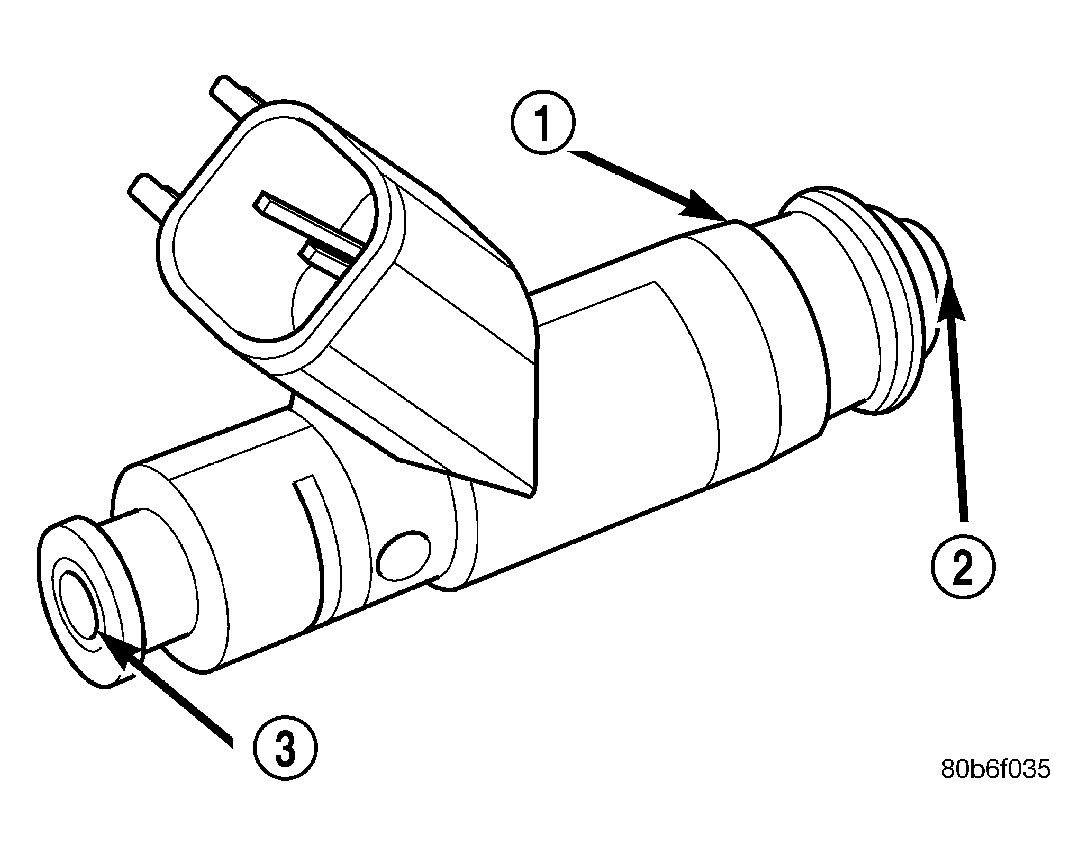

An individual fuel injector is used for each individual cylinder. See Fig 1.
| 1 - INJECTOR BODY |
| 2 - FUEL OUTLET NOZZLE |
| 3 - FUEL INLET NOZZLE |
