Crankshaft Position Sensor: Removal: 2.4L

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

The Crankshaft Position (CKP) sensor is mounted into the right front side of the cylinder block. See Fig 1. It is positioned and bolted into a machined hole.

Disconnect sensor electrical connector.
Remove sensor bolt.
Carefully twist sensor from cylinder block.
Check condition of sensor o-ring. See Fig 2.

Fig 1: CKP SENSOR LOCATION-2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1 - RIGHT FRONT ENGINE MOUNT

2 - CKP SENSOR

3 - MOUNTING BOLT

4 - ELECTRICAL CONNECTOR

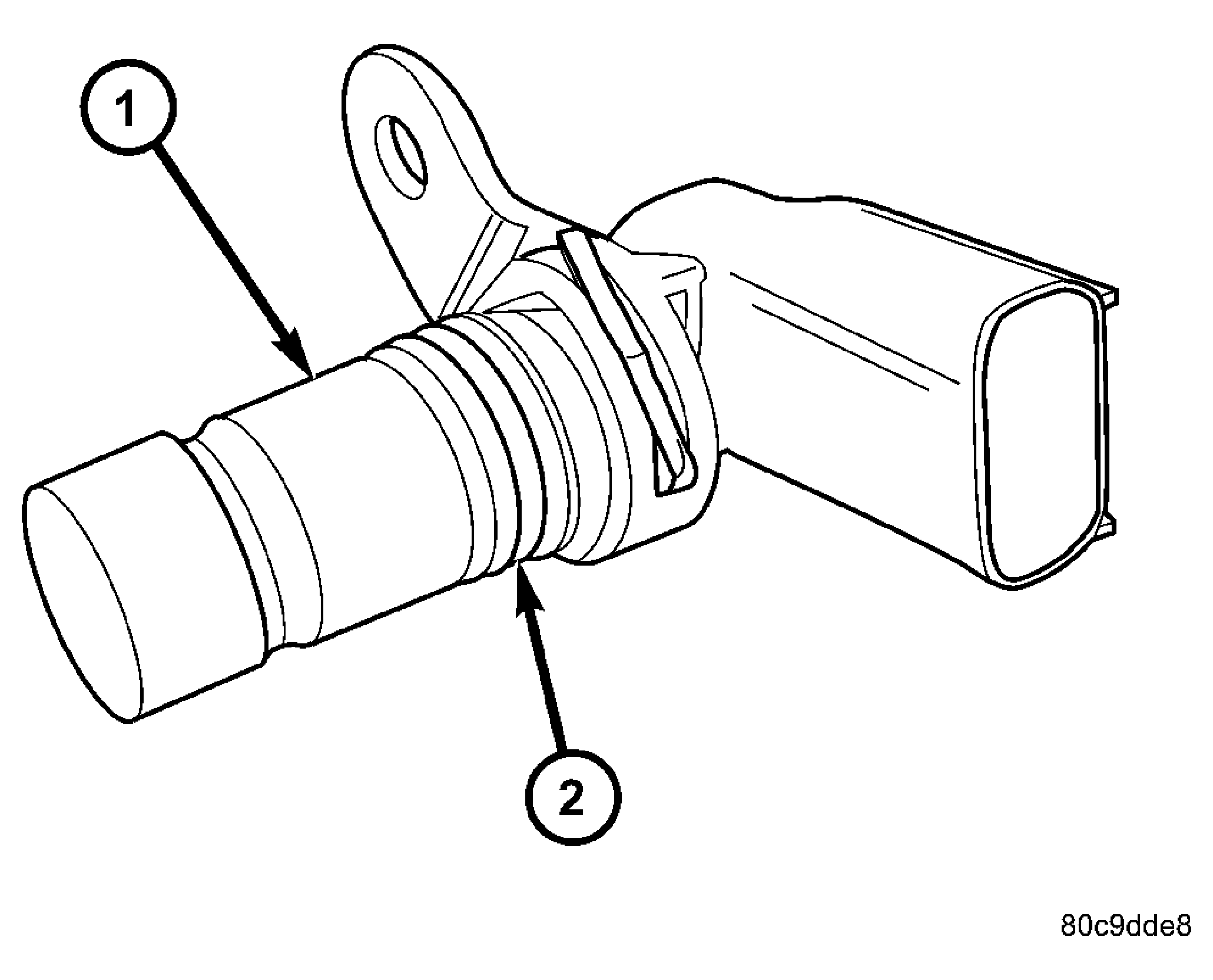

Fig 2: CKP AND O-RING-2.4L

Courtesy of DAIMLERCHRYSLER CORP.

1 - CKP SENSOR

2 - O-RING
