Crankshaft Position Sensor: Description: 3.7L
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

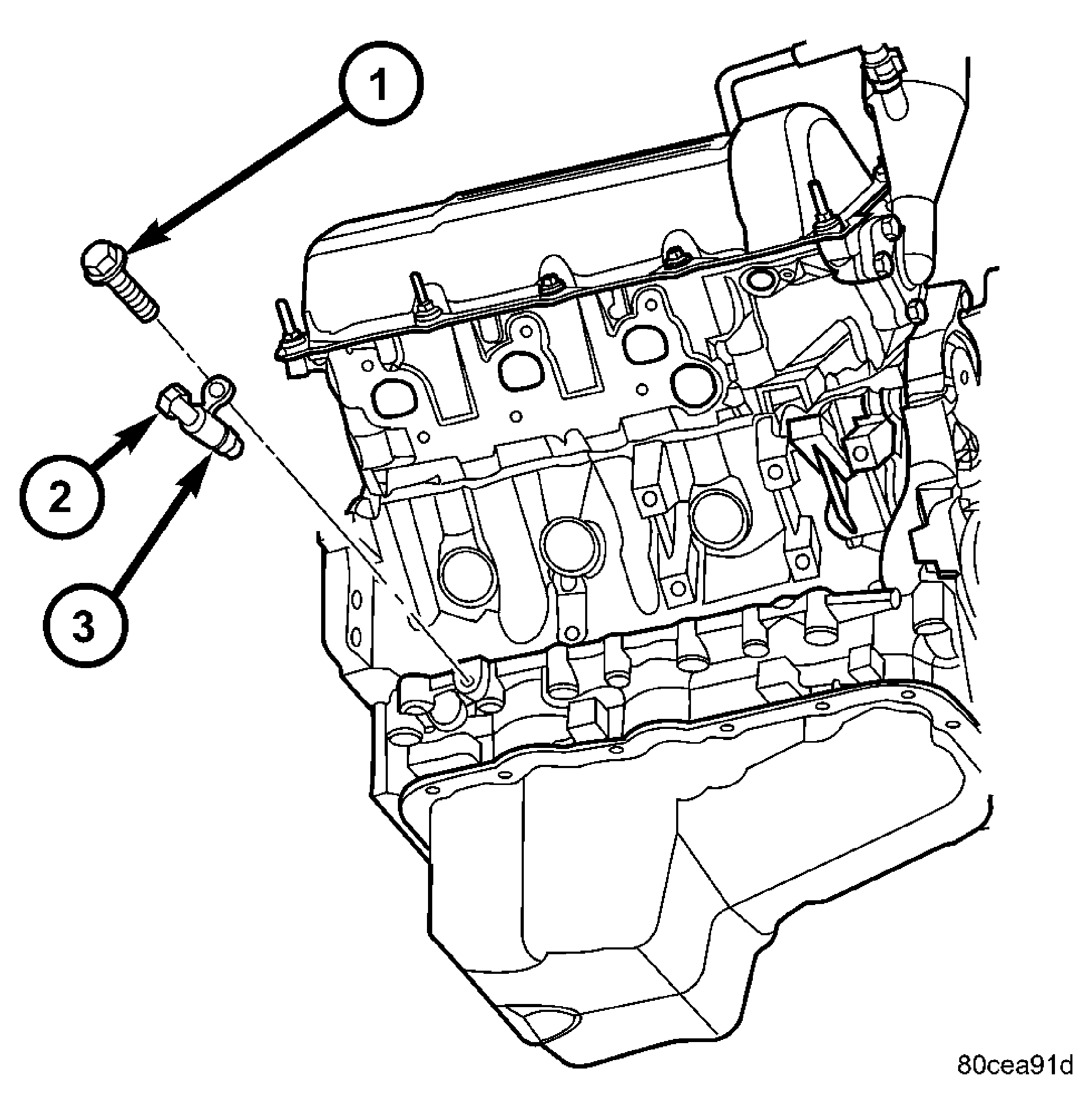

The Crankshaft Position (CKP) sensor is mounted into the right rear side of the cylinder block. See Fig 1. It is positioned and bolted into a machined hole.
| 1 - MOUNTING BOLT |
| 2 - CKP SENSOR |
| 3 - O-RING |
