Fuel Pressure Regulator: Description
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

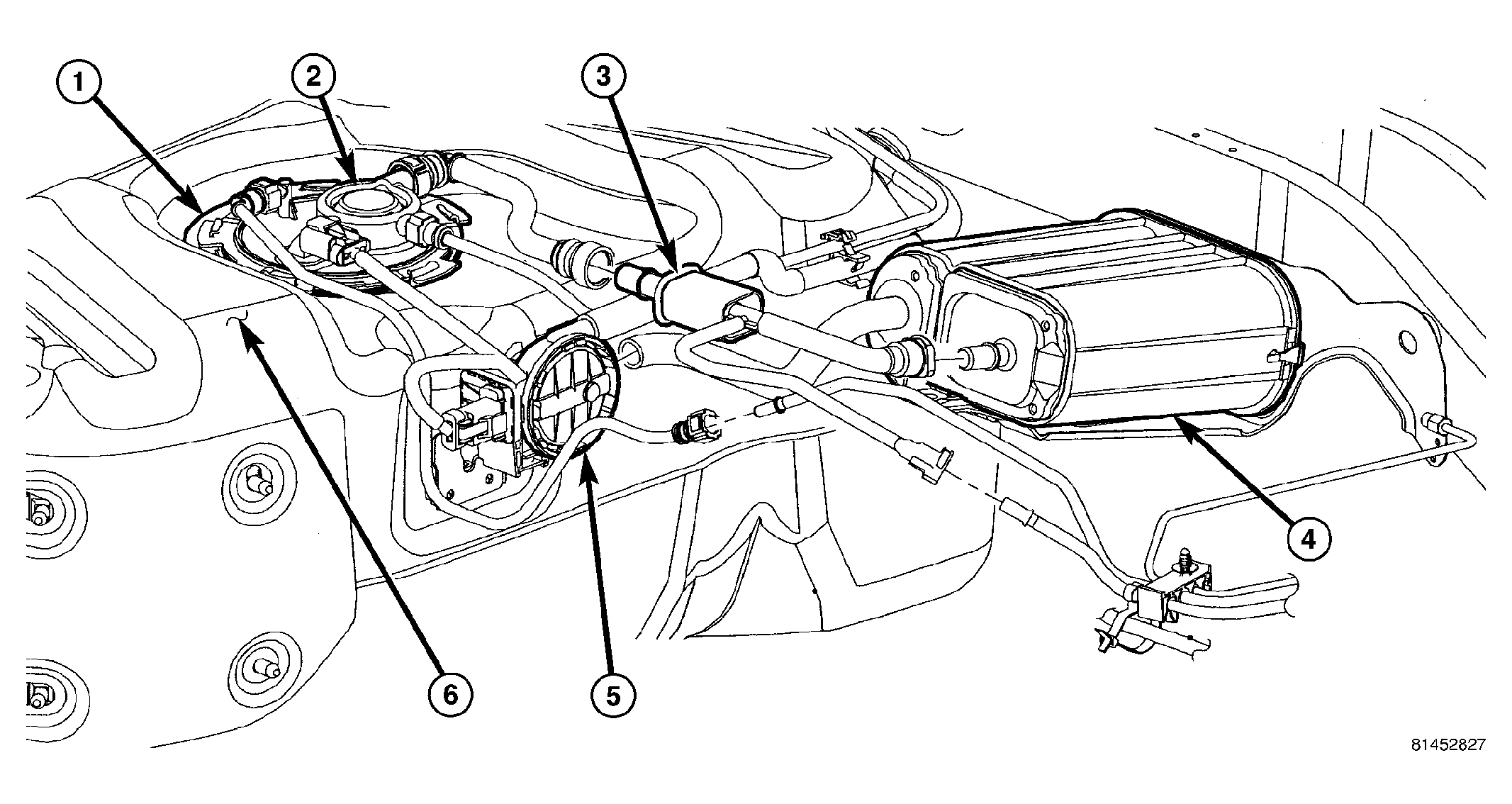

| 1 - FUEL PUMP MODULE LOCK RING | 4 - EVAP CANISTER |
| 2 - FUEL PUMP MODULE | 5 - NVLD PUMP |
| 3 - ISOLATOR SLEEVE | 6 - FUEL TANK |
The fuel pressure regulator is located on the top of the fuel pump module assembly (2), and is non-serviceable. See Fig 1.
