Electronic Vehicle Info Center: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect and isolate the battery negative cable.
Remove the overhead console from the headliner.

Remove the four screws that secure the Electronic Vehicle Information Center (EVIC) module to the overhead console housing. See Fig 1.

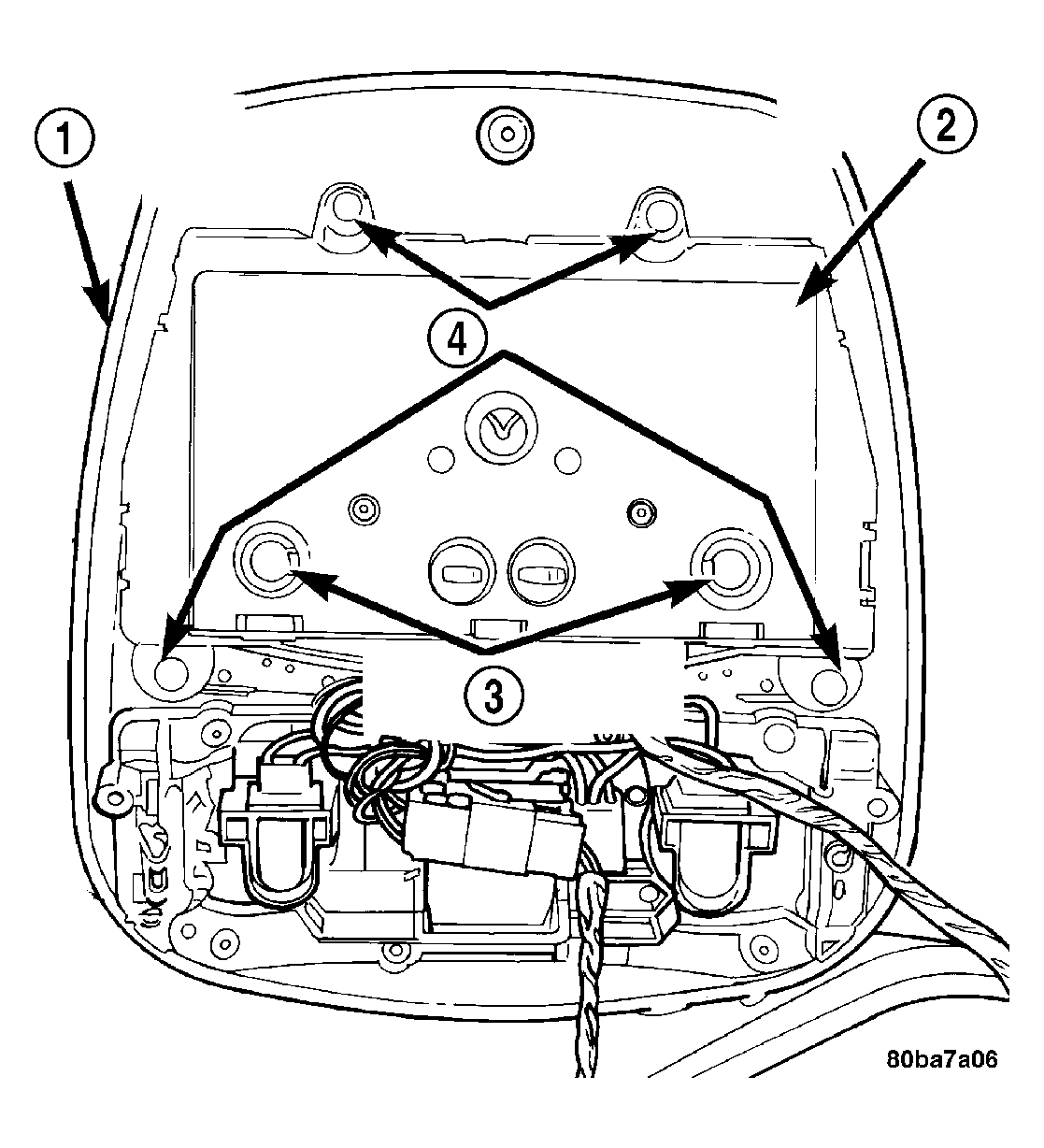

Fig 1: Electronic Vehicle Information Center (EVIC) Module

Courtesy of DAIMLERCHRYSLER CORP.

1 - OVERHEAD CONSOLE HOUSING

2 - EVIC MODULE

3 - ILLUMINATION LAMPS

4 - SCREWS (4)

Remove the EVIC module from the overhead console housing.

NOTE: IF THE EVIC MODULE IS BEING REPLACED, THE TIRE PRESSURE MONITORING SYSTEM MUST BE PROGRAMMED. REFER TO TIRES/WHEELS FOR DETAILED INSTRUCTIONS.
