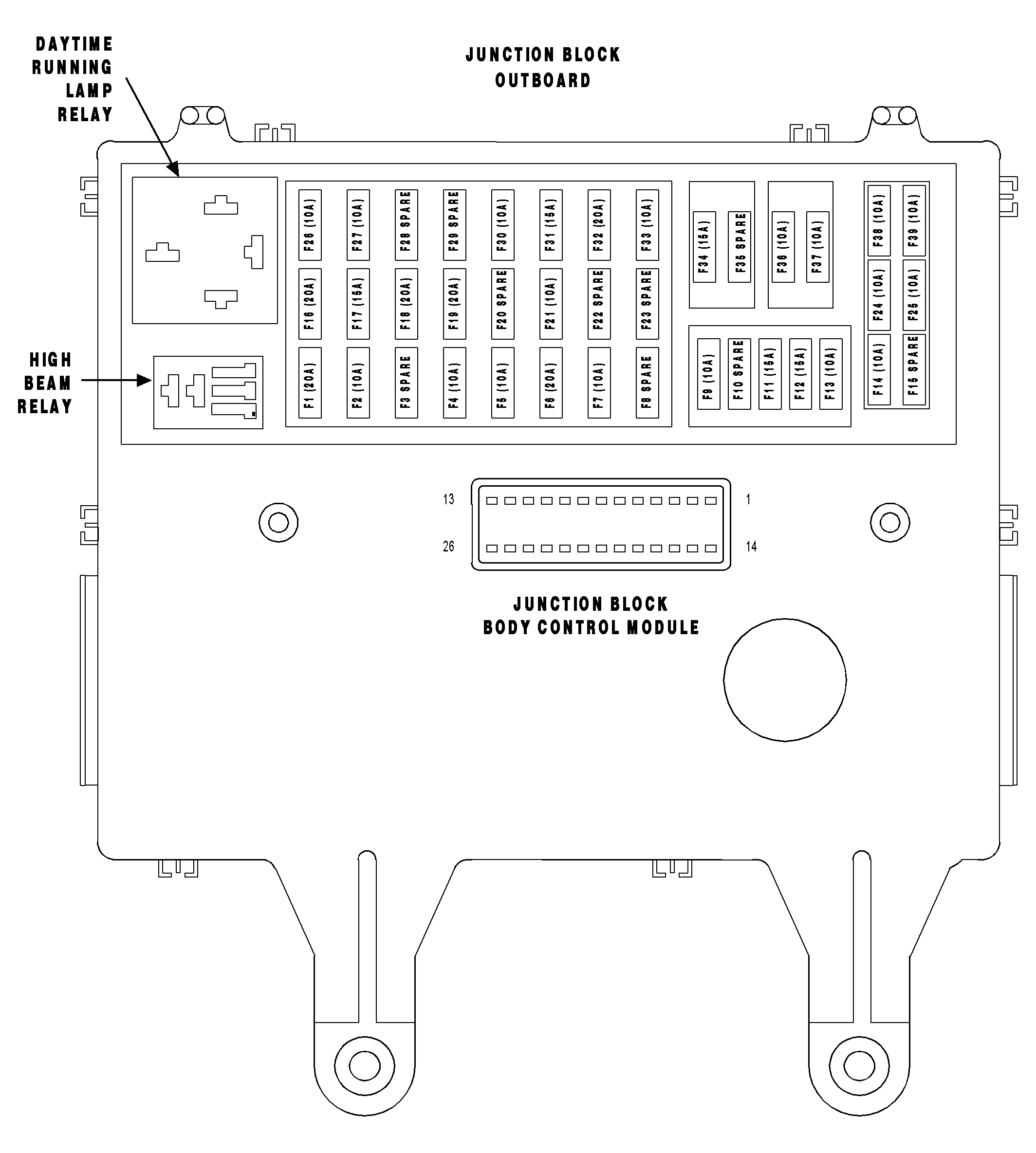

High Beam Relay Connector End View
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
HIGH BEAM RELAY
 Courtesy of DAIMLERCHRYSLER CORP.
|
| CAV |
CIRCUIT |
FUNCTION |
| 30 |
INTERNAL |
FUSED B(+) |
| 85 |
INTERNAL |
FUSED B(+) |
| 86 |
INTERNAL |
HIGH BEAM RELAY CONTROL |
| 87 |
INTERNAL |
FRONT FOG LAMP RELAY OUTPUT |
| 87A |
- |
- |
