Trailer Tow Connector: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

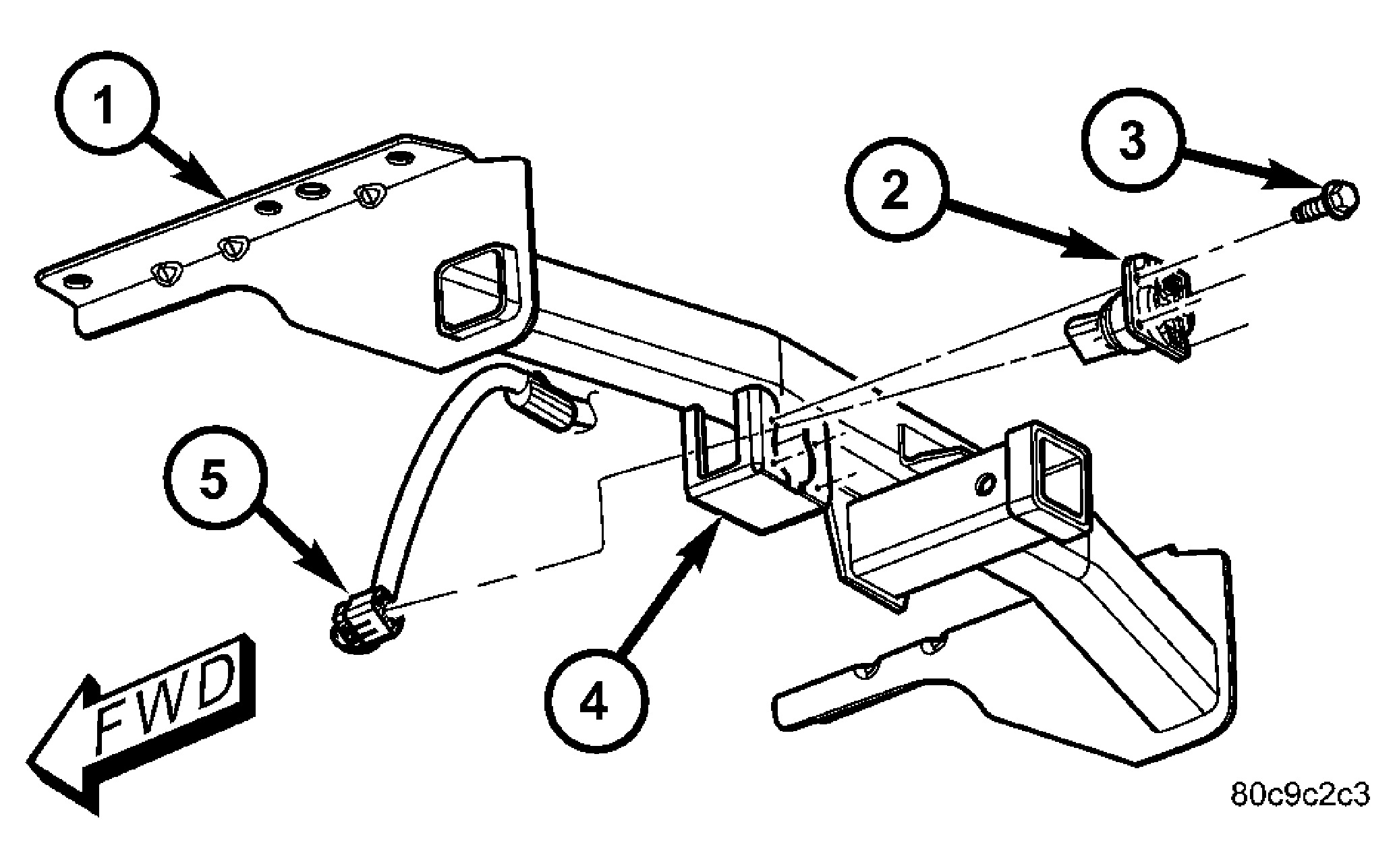

  1. Position the trailer tow connector to the trailer hitch receiver. See Figure.
  2. Reconnect the rear body wire harness connector to the trailer tow connector.
  3. Position the trailer tow connector into the bracket on the trailer hitch receiver.
  4. Install and tighten the four screws that secure the trailer tow connector to the hitch receiver bracket. Tighten the screws to 4 N.m (35 in. lbs.).
  5. Reconnect the battery negative cable.
