Repeater Lamp: Removal: Lamp

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Side repeater lamps are used only on vehicles manufactured for certain markets where these lamps are required.

Disconnect and isolate the battery negative cable.

Using a trim stick or another suitable wide flat-bladed tool, carefully pry at the clearance notch in the lower edge of the repeater lamp lens to disengage the snap features of the lens from the mounting hole in the front fender panel. See Fig 1.

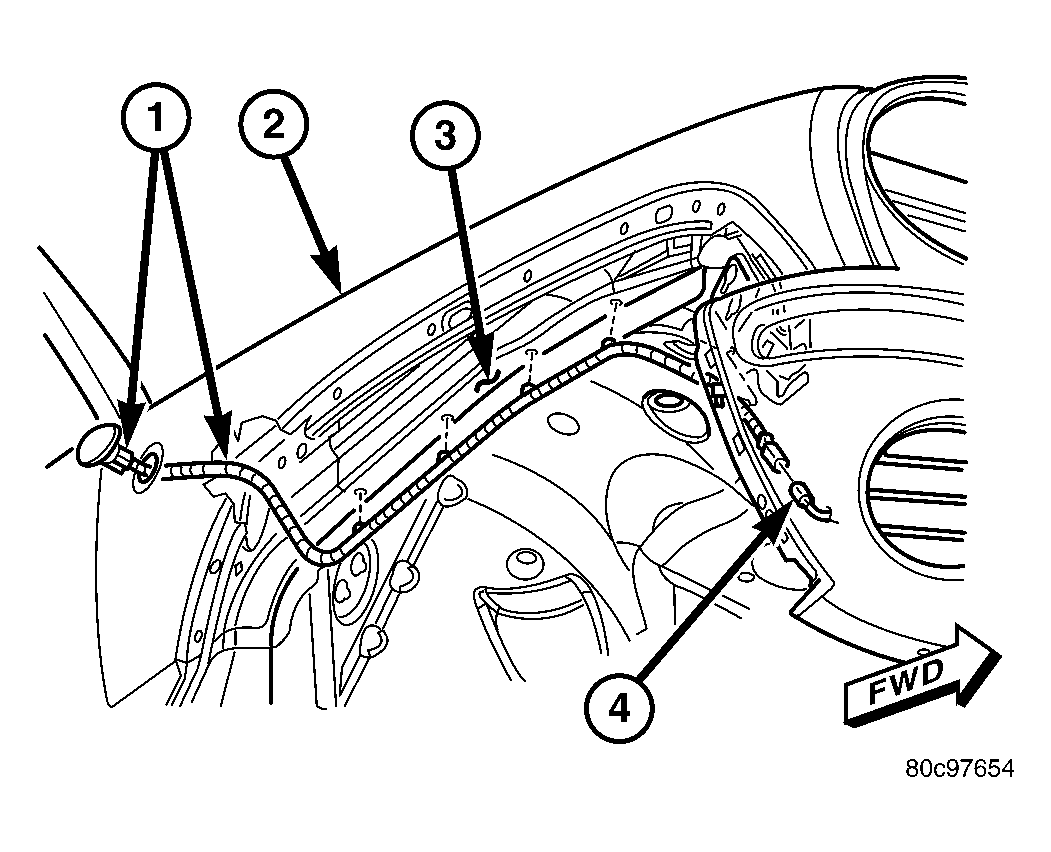

Fig 1: Repeater Lamp Unit Remove/Install

Courtesy of DAIMLERCHRYSLER CORP.

1 - REPEATER LAMP UNIT

2 - FRONT FENDER PANEL

3 - INNER FENDER

4 - FRONT FASCIA WIRE HARNESS

Pull the lamp unit out from the front fender panel far enough to access and disconnect the wire harness connector from the lamp socket.
Remove the lamp unit from the front fender panel.
