Repeater Lamp: Removal: Bulb

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Side repeater lamps are used only on vehicles manufactured for certain markets where these lamps are required.

Disconnect and isolate the battery negative cable.
Remove the repeater lamp unit from the front fender panel. (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/REPEATER LAMP UNIT - REMOVAL) .

Rotate the repeater lamp socket in the lamp lens counterclockwise about 30 degrees to unlock it. See Fig 1.

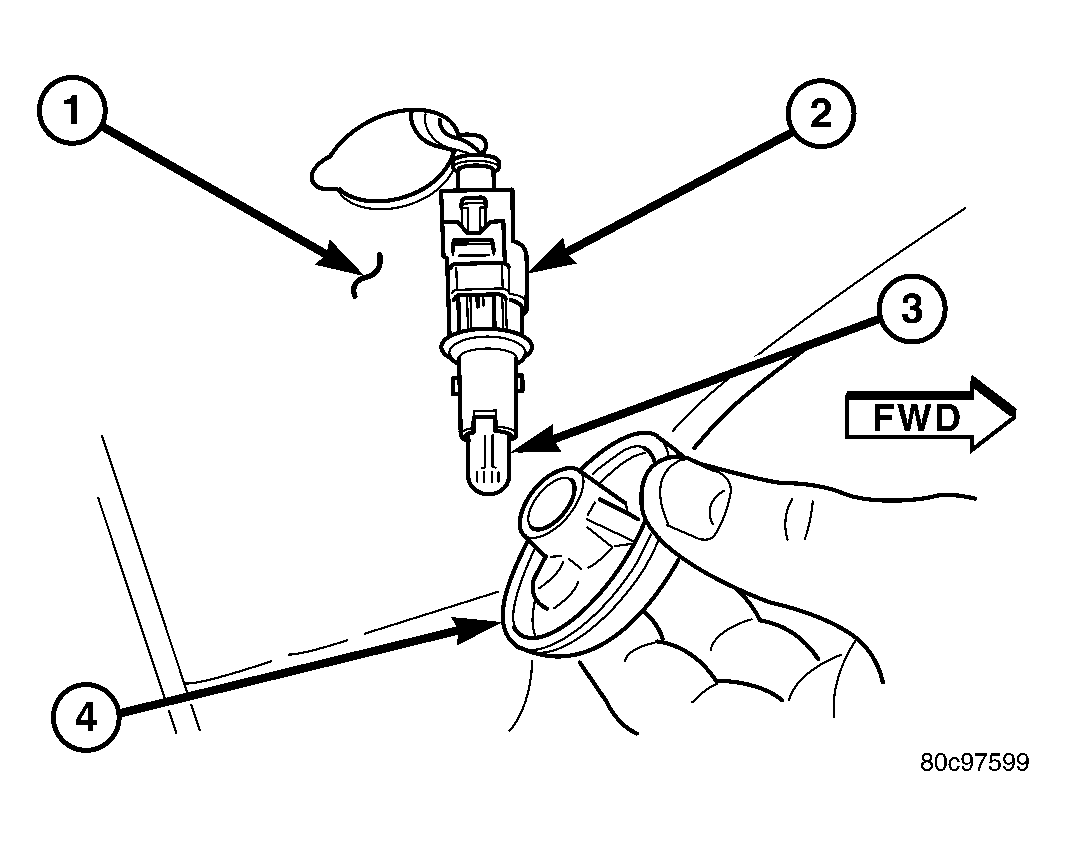

Fig 1: Repeater Lamp Bulb Remove/Install

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT FENDER

2 - SOCKET

3 - BULB

4 - LENS

Pull the socket and bulb straight out of the keyed opening in the lamp lens.
Pull the base of the bulb straight out of the lamp socket.
