Lamp - North AMERICA

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the license plate lamp unit to the rear bumper fascia.
  2. Reconnect the lamp socket pigtail wire connector.

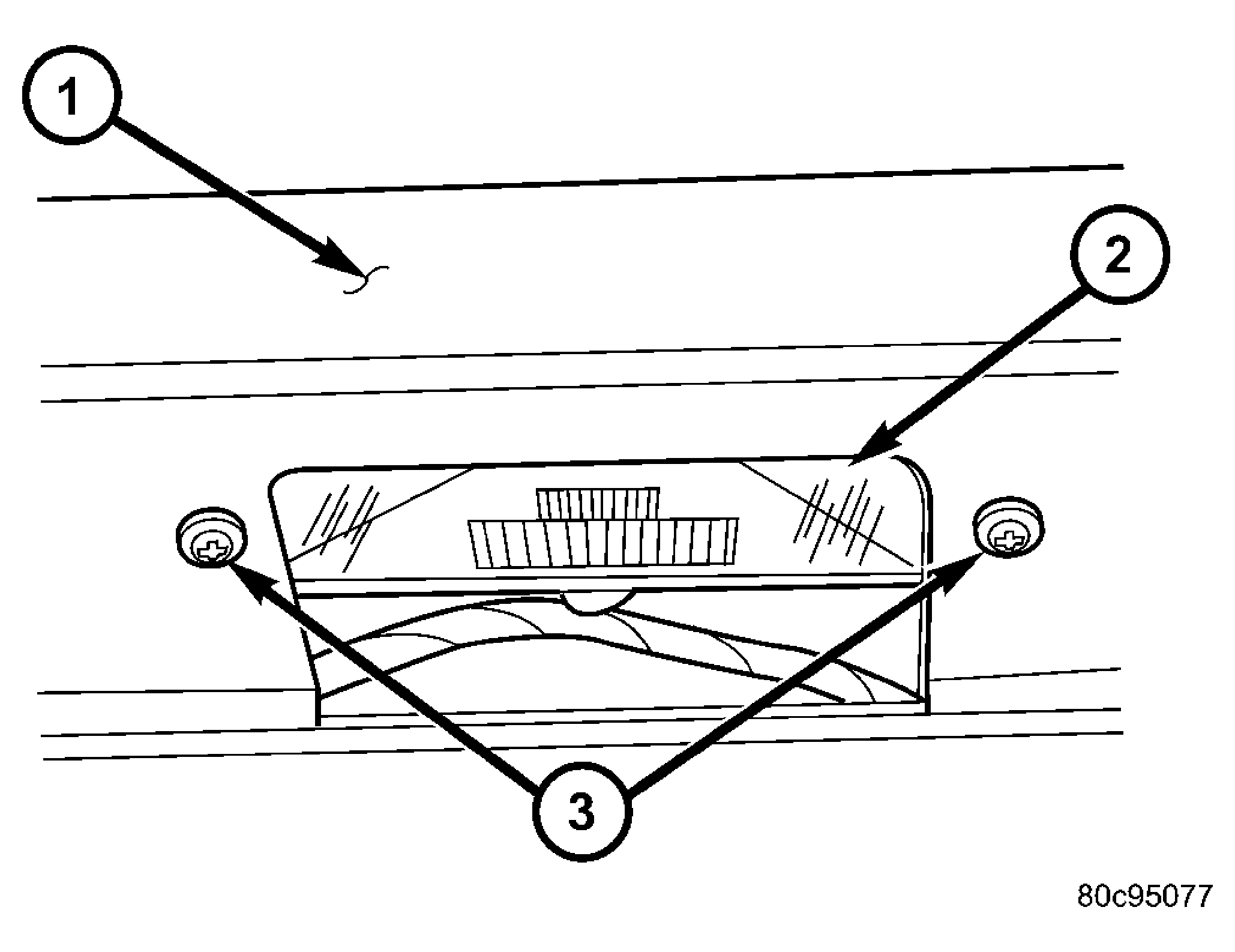

  3. Position the lamp unit into the mounting hole in the rear bumper fascia. See Figure.
  4. Install and tighten the two screws that secure lamp unit to the fascia. Tighten the screws to 2 N.m (20 in. lbs.).
  5. Reconnect the battery negative cable.
