Bulb - Export
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket and/or the lamp wiring.
- Align the base of the bulb with the license plate lamp socket.
- Push the bulb straight into the socket until the base is firmly seated.
- Align the socket and bulb with the keyed opening on the top of the license plate lamp housing. See Figure.
- Insert the socket and bulb into the housing until the socket is firmly seated.
- Rotate the socket clockwise about 30 degrees to lock it into place.

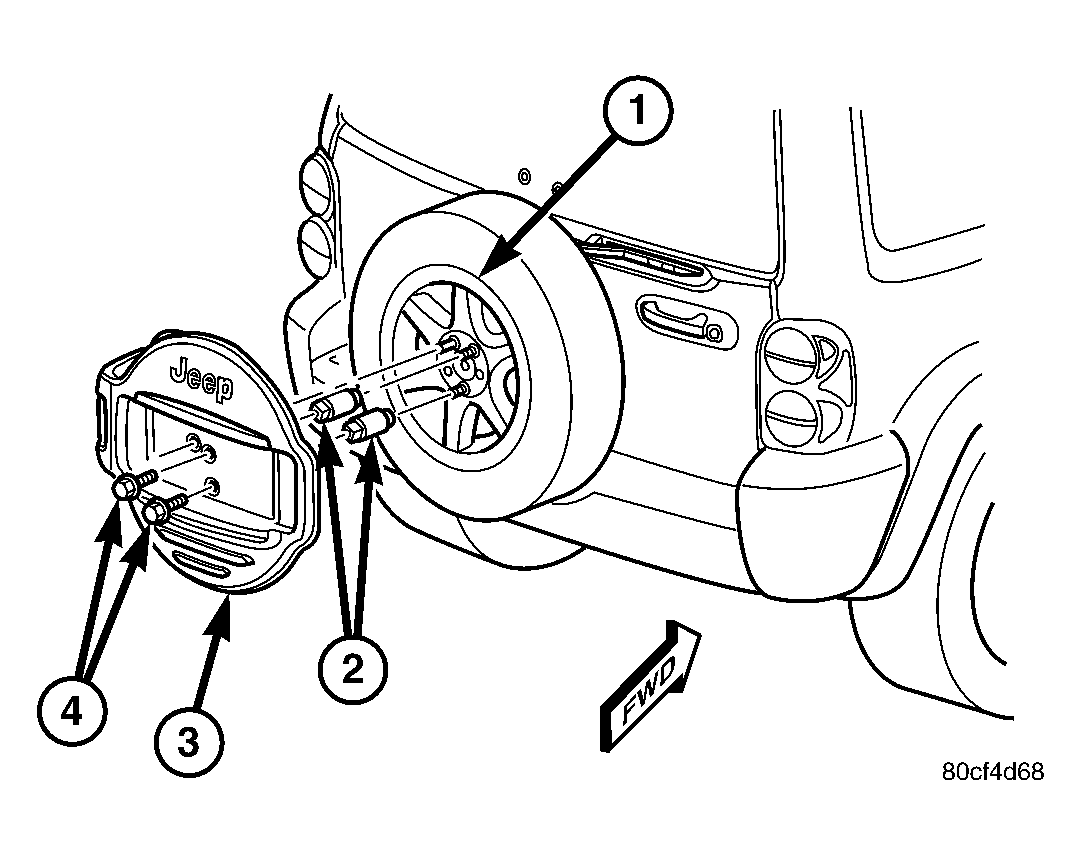

- Swing the license plate bracket back against the spare tire. See Figure.
- Lift up the bottom of the license mounting plate far enough to install and tighten the two screws that secure the license plate bracket to the special lug nuts on the spare tire. Tighten the screws to 28 N.m (21 ft. lbs.).
- Lower the bottom of the license mounting plate and snap it into place on the license plate bracket.
- Reconnect the battery negative cable.
