Lamp Bar: Installation: Cover

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

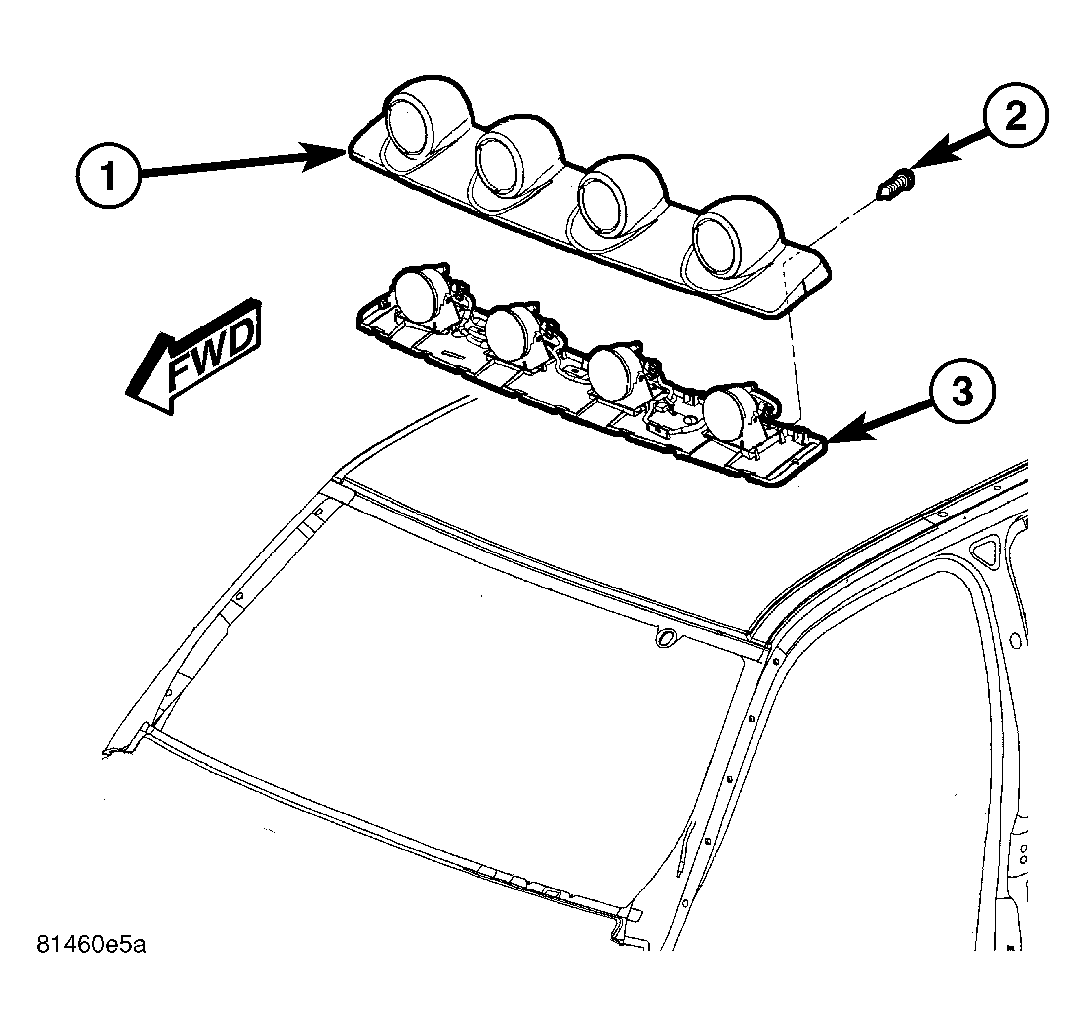

  1. Position the front edge of the light bar cover on the roof panel just ahead of the front edge of the light bar reinforcement. See Figure.
  2. Slide the cover rearward to engage the front edge of the cover under the forward edge of the reinforcement, then lower the rear edge of the cover into position.
  3. Install and tighten the four screws that secure the rear edge of the cover to the reinforcement. Tighten the screws to 2 N.m (17 in. lbs.).
