Lamp Bar Switch: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, occupant classification system, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
NOTE:
A light bar lamp switch is used only on vehicles equipped with the optional light bar and auxiliary off-road lamps.
- Disconnect negative battery cable.

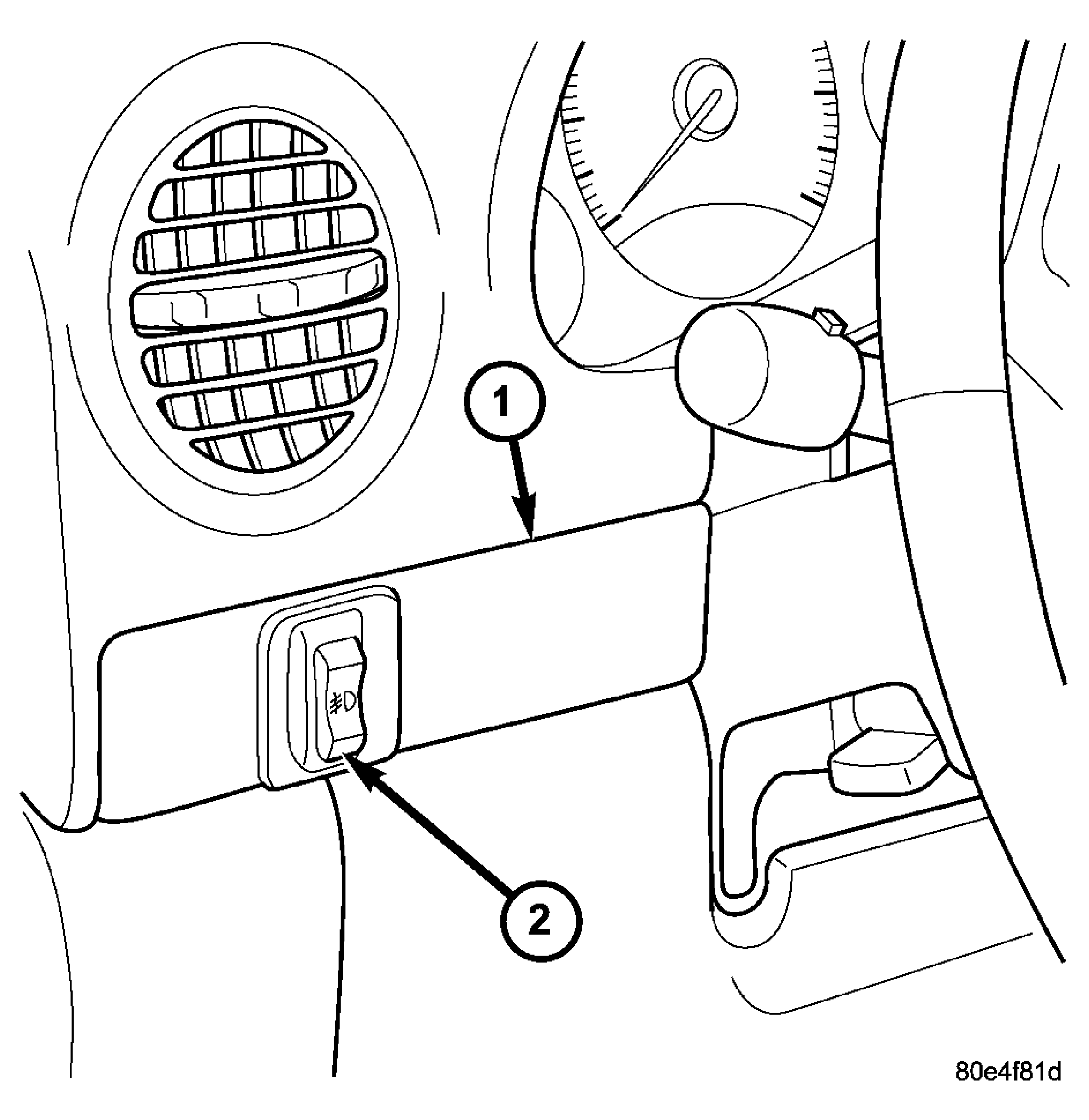

- Remove the driver side outboard bezel from the instrument panel. See Fig 1. (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL DRIVER SIDE BEZEL - REMOVAL)
.
1 - BEZEL 2 - SWITCH - Disconnect the instrument panel wire harness connector from the light bar lamp switch connector receptacle.
- From the back of the trim bezel, depress the two lower latch features on the switch housing and rock the bottom of the switch out through the face of the bezel.
- From the back of the trim bezel, depress the two upper latch features on the switch housing and push the switch out through the face of the bezel.
