Headlamp Unit: Installation: Lamp

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the headlamp unit to the grille opening reinforcement.

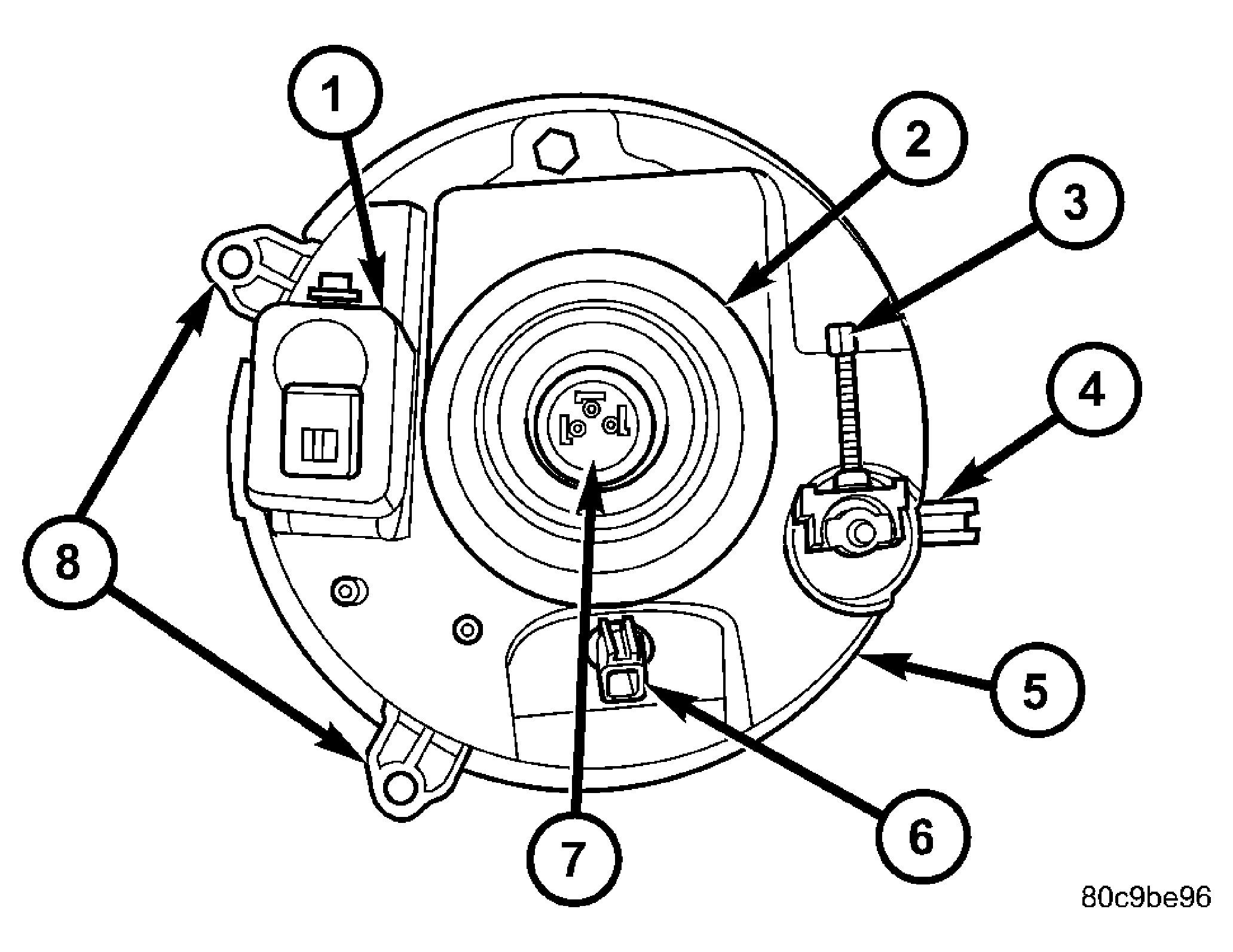

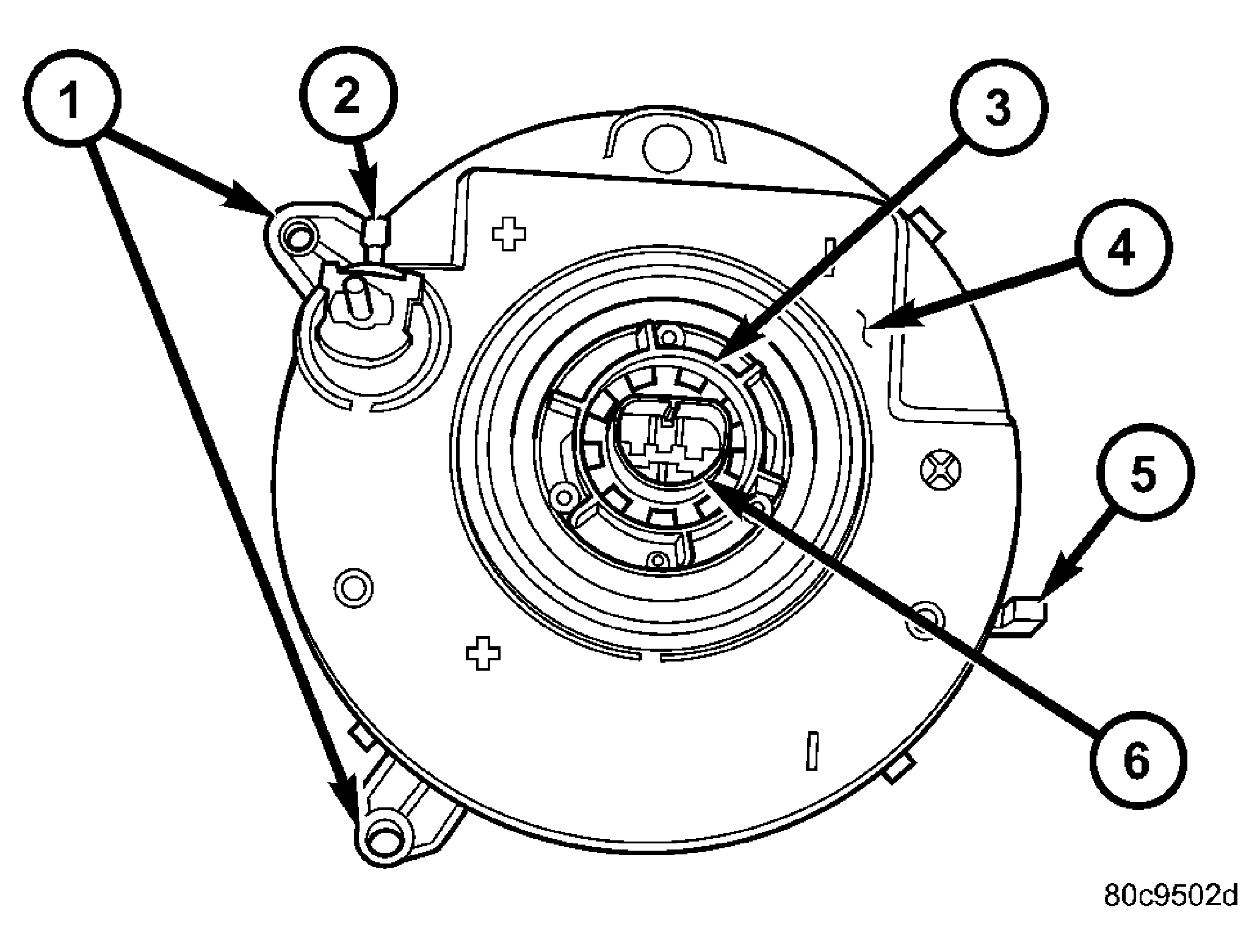

  2. Reconnect the wire harness connectors to the headlamp bulb socket (North America), the headlamp bulb base (Export), the front position lamp socket (if equipped), and the headlamp leveling motor (if equipped). See Figure or Figure.
  3. Engage the locator tab on the outboard side of the headlamp unit into the engagement slot in the outboard edge of the grille opening reinforcement.

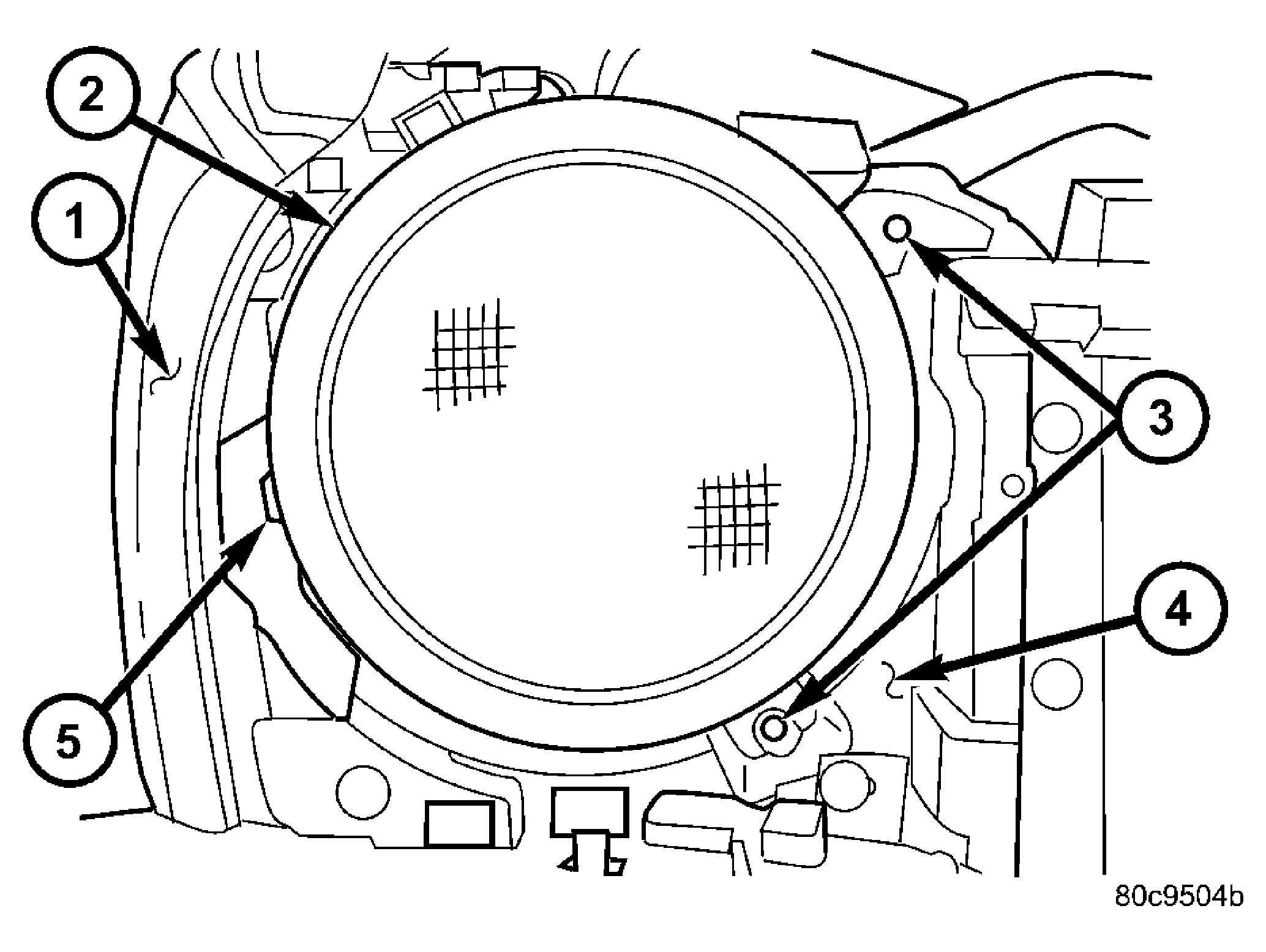

  4. Align the two mounting tabs on the inboard side of the headlamp unit housing to the mounting holes in the grille opening reinforcement. See Figure.
  5. Install and tighten the two screws that secure the mounting tabs on the inboard side of the headlamp housing to the grille opening reinforcement. Tighten the screws to 3 N.m (30 in. lbs.).
  6. Reinstall the grille panel onto the grille opening reinforcement. (Refer to BODY/EXTERIOR/GRILLE - INSTALLATION) .
  7. Reconnect the battery negative cable.
  8. Confirm proper headlamp unit alignment. (Refer to ELECTRICAL/LAMPS/LIGHTING - EXTERIOR/HEADLAMP UNIT - ADJUSTMENTS) .
