Bulb - North AMERICA
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket and/or the lamp wiring.
CAUTION:
Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.

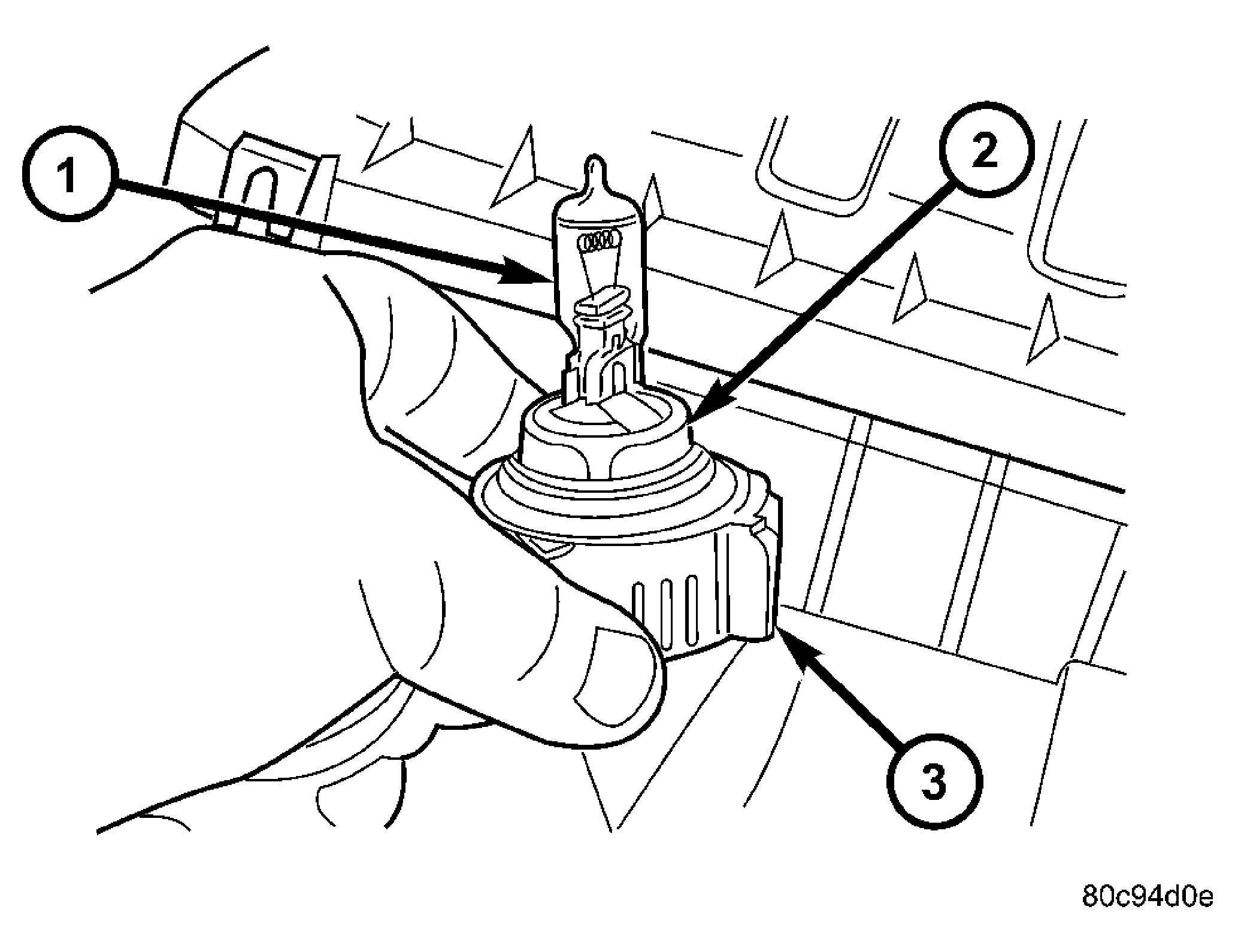

- Position the headlamp bulb and socket into the lock ring. See Figure.
- Reconnect the grille opening reinforcement wire harness connector to the headlamp bulb socket connector receptacle.
- Position the lock ring, socket, and bulb down behind the upper radiator crossmember and align them with the keyed opening on the back of the headlamp unit housing.
- Push the socket and bulb unit straight into the headlamp housing until they are firmly seated.

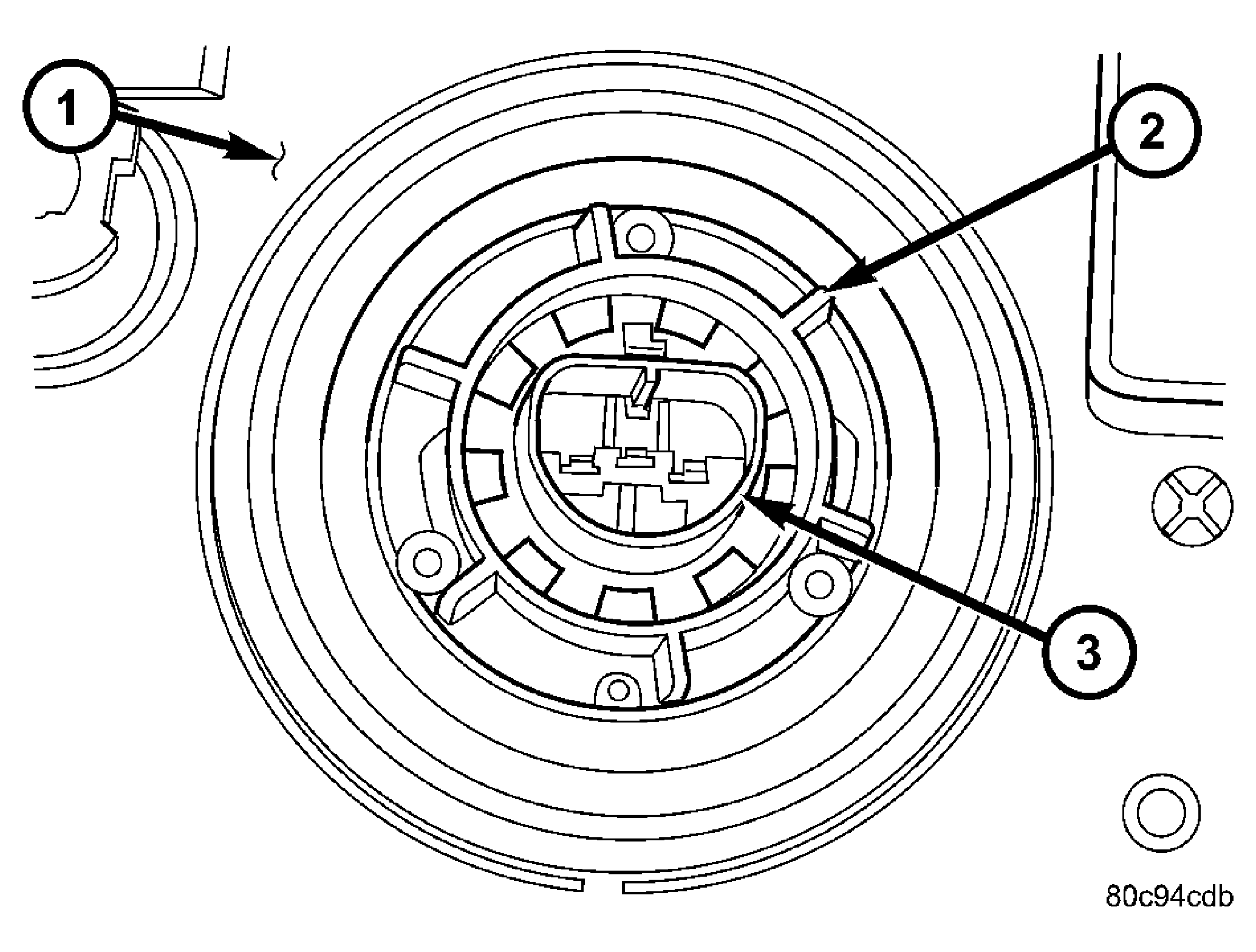

- Position the lock ring over the socket and engage it with the flange on the back of the headlamp housing. See Figure.
- Rotate the lock ring on the back of the headlamp housing clockwise about 30 degrees to lock it into place.
- Reconnect the battery negative cable.
