Headlamp Leveling Switch: Installation
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid personal injury or death, on vehicles equipped with airbags, disable the supplemental restraint system before attempting any steering wheel, steering column, airbag, occupant classification system, seat belt tensioner, impact sensor, or instrument panel component diagnosis or service. Disconnect and isolate the battery negative (ground) cable, then wait two minutes for the system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the supplemental restraint system. Failure to take the proper precautions could result in accidental airbag deployment.
NOTE:
A headlamp leveling switch is used only on vehicles manufactured for certain markets where headlamp leveling is required.

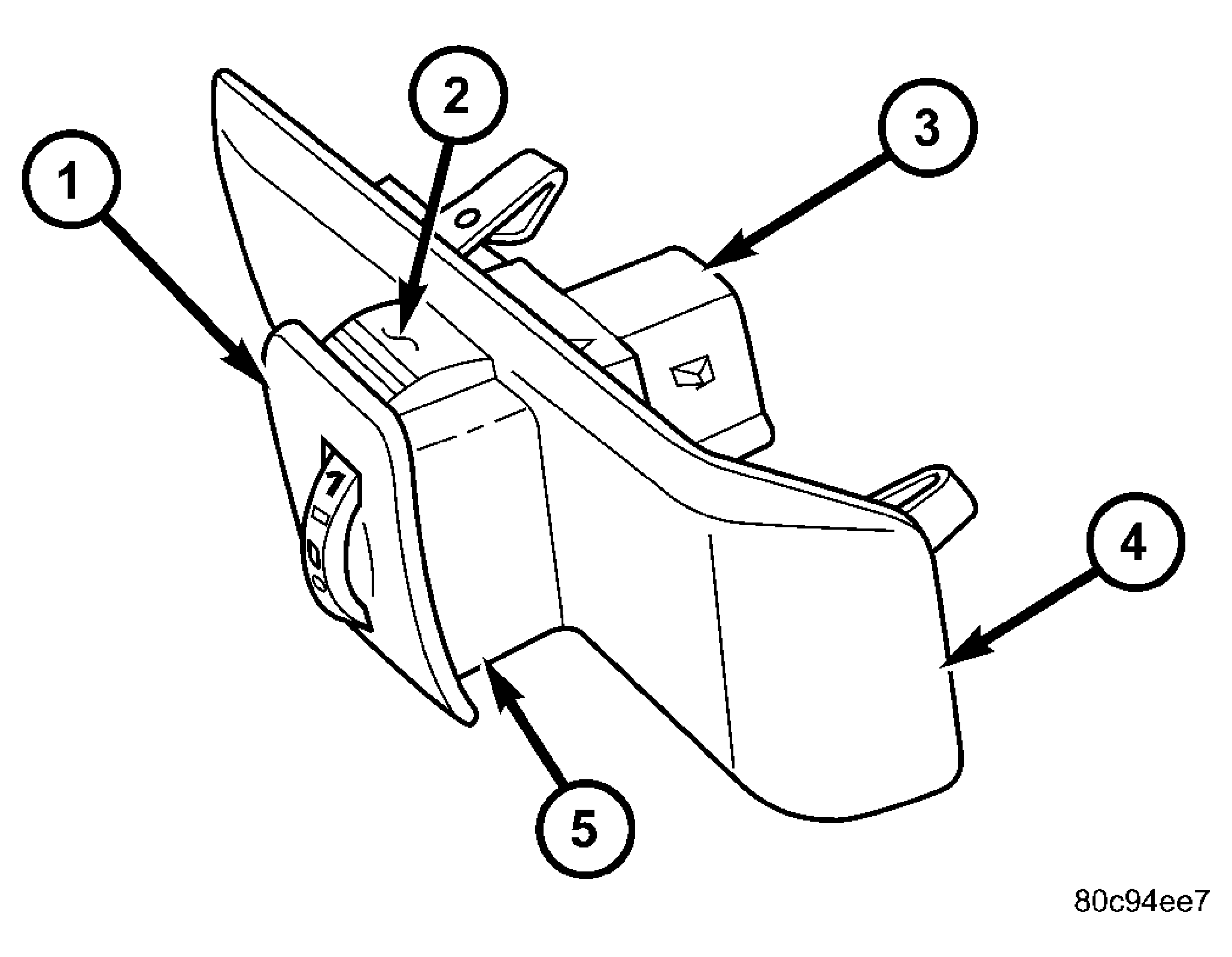

- From the face of the driver side inboard bezel, align the headlamp leveling switch housing to the mounting hole in the bezel. See Figure.
- Push the switch into the mounting hole until it is fully seated and each of the latch features is fully engaged.
- Position the switch and bezel unit to the instrument panel.
- Reconnect the instrument panel wire harness connector to the switch connector receptacle.
- Reinstall the trim bezel and switch unit onto the instrument panel. (Refer to BODY/INSTRUMENT PANEL/INSTRUMENT PANEL DRIVER SIDE BEZEL - INSTALLATION) .
- Reconnect the battery negative cable.
