Lamp - Fascia Mounted

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

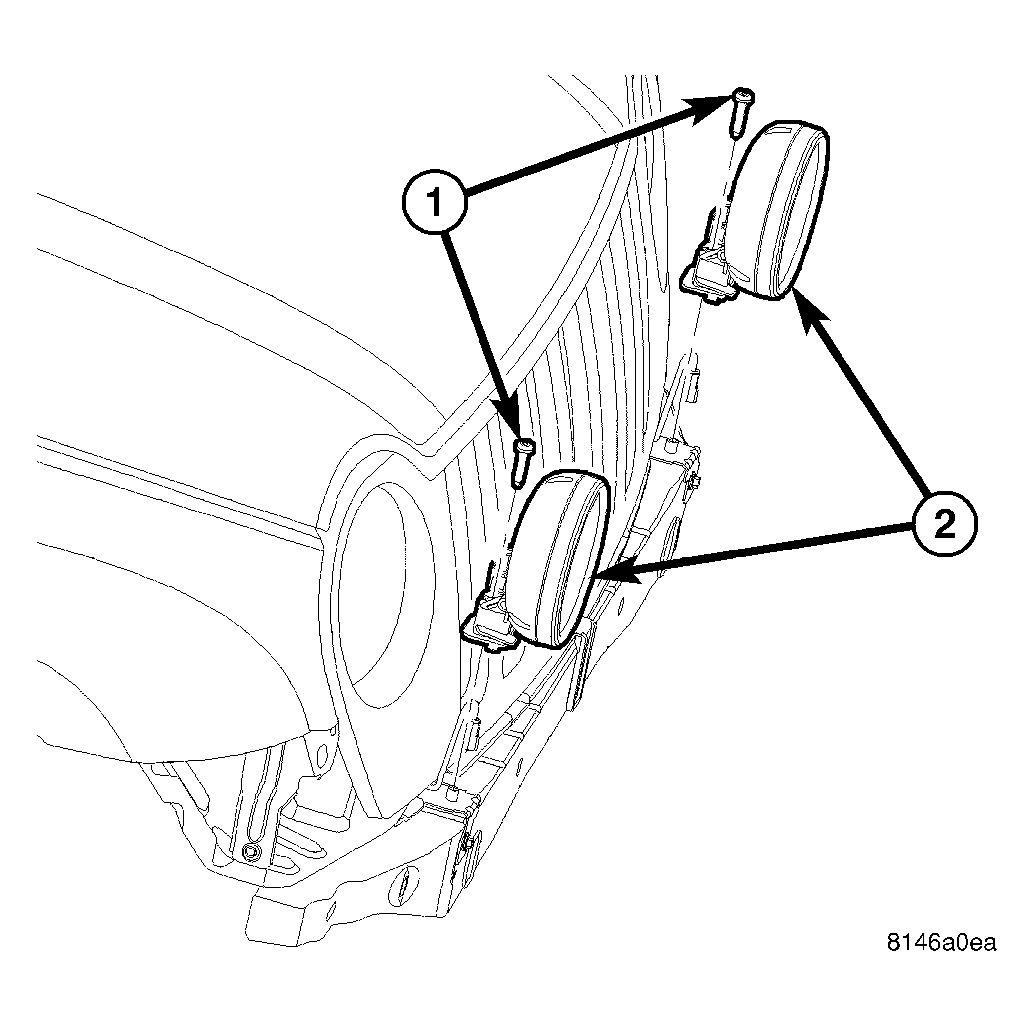

  1. Position the front fog lamp to the bracket on the top of the front bumper fascia. See Figure.
  2. Install and tighten the screw into the mounting bracket that secures the lamp to the fascia. Tighten the screw to 20 N.m (15 ft. lbs.).
  3. Reconnect the lamp pigtail wire to the connector on the grille opening reinforcement.
  4. Reinstall the grille panel onto the front of the grille opening reinforcement. (Refer to BODY/EXTERIOR/GRILLE - INSTALLATION) .
  5. Reconnect the battery negative cable.
  6. Confirm proper front fog lamp alignment. (Refer to ADJUSTMENTS ).
