Planetary GEARTRAIN: Assembly
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Clean and inspect all components. Replace any components which show evidence of excessive wear or scoring.

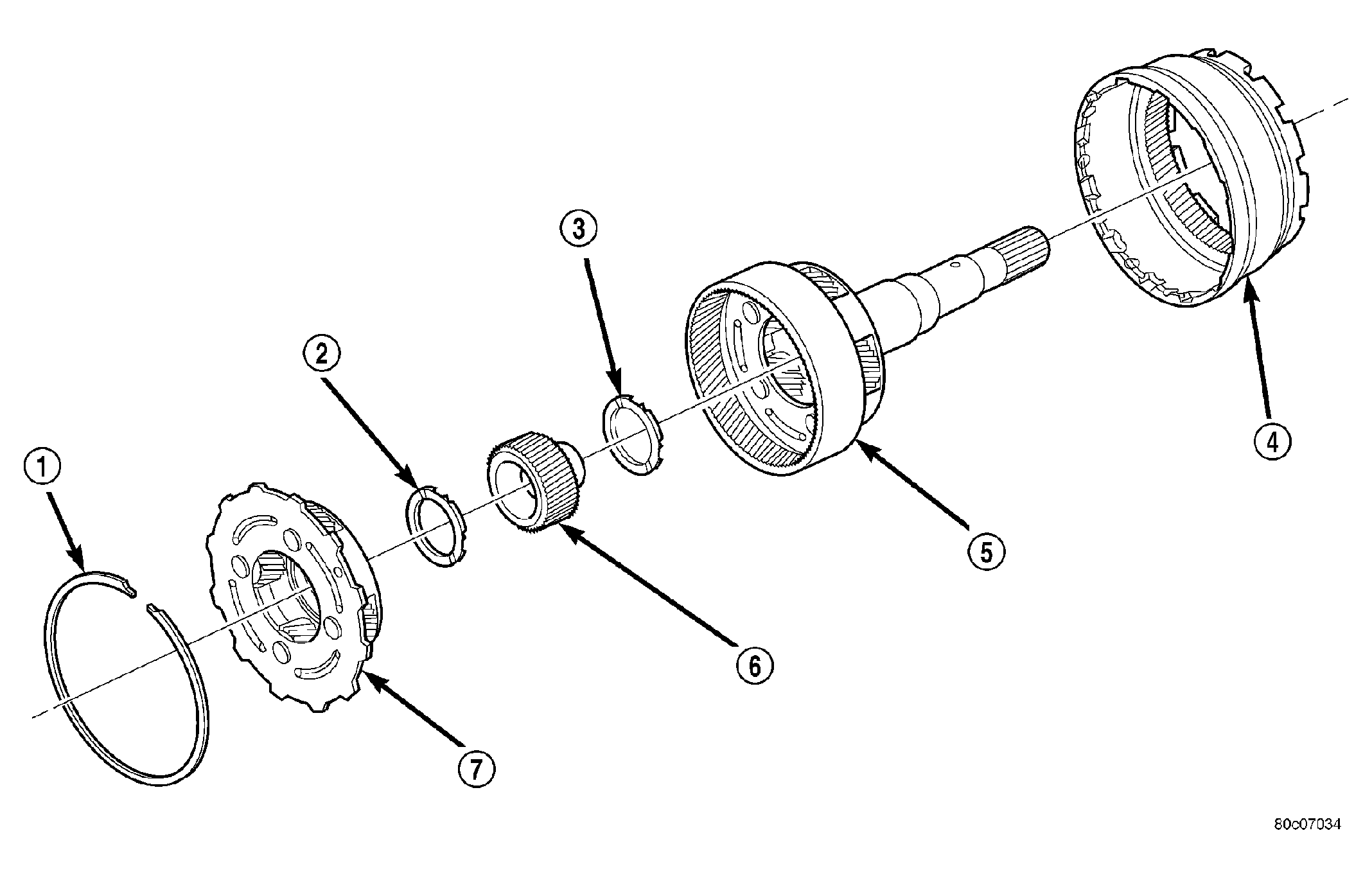

| 1 - SNAP-RING | 5 - INPUT PLANETARY CARRIER |
| 2 - THRUST BEARING NUMBER 10 | 6 - INPUT SUN GEAR |
| 3 - THRUST BEARING NUMBER 11 | 7 - REVERSE PLANETARY CARRIER |
| 4 - INPUT ANNULUS |
- Install the number 11 thrust bearing (3) into the input planetary carrier (5) so that the inner race will be toward the front of the transmission. See Fig 1.
- Install the input sun gear (6) into the input carrier (5). See Fig 1.
- Install the number 10 thrust bearing (2) onto the rear of the reverse planetary carrier (7) with the inner race toward the carrier. See Fig 1.
- Install the number 9 thrust bearing onto the front of the reverse planetary carrier (7) with the outer race toward the carrier and the inner race facing upward. See Fig 1.
- Install the reverse planetary gear carrier (7) into the input carrier (5). See Fig 1.
- Install the input annulus gear (4) into the input carrier (5). See Fig 1.
- Install the snap-ring (1) to hold the input annulus gear (4) into the input carrier (5). See Fig 1.
