Output Speed Sensor: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

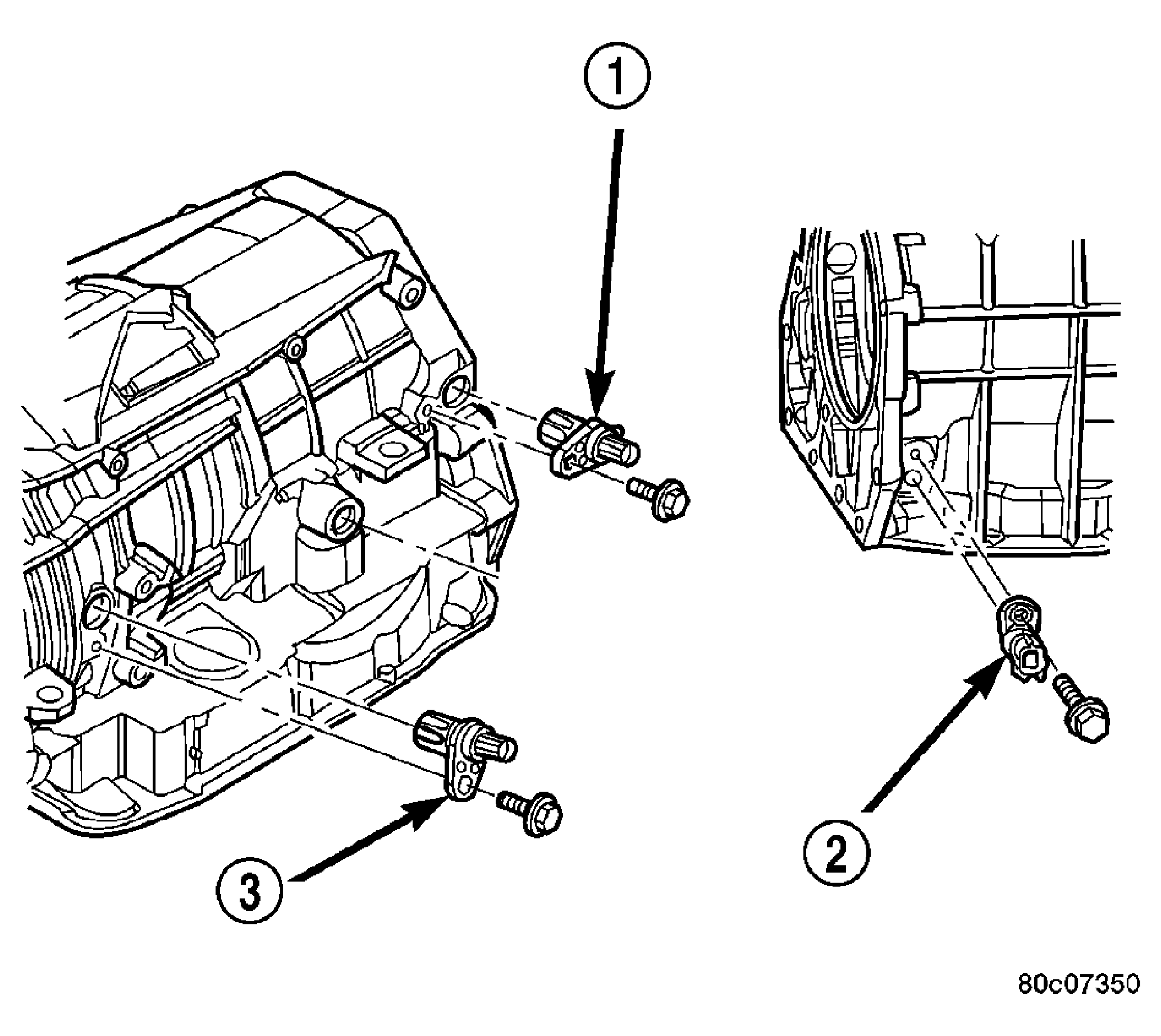

Fig 1: Locating Input Speed, Output Speed and Line Pressure Sensors
GC0005202Courtesy of DAIMLERCHRYSLER CORP.
1 - OUTPUT SPEED SENSOR
2 - LINE PRESSURE SENSOR
3 - INPUT SPEED SENSOR
  1. Raise vehicle.
  2. Place a suitable fluid catch pan under the transmission.
  3. Remove the wiring connector from the output speed sensor (1). See Fig 1.
  4. Remove the bolt holding the output speed sensor (1) to the transmission case.
  5. Remove the output speed sensor (1) from the transmission case.
