Transmission Identification

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

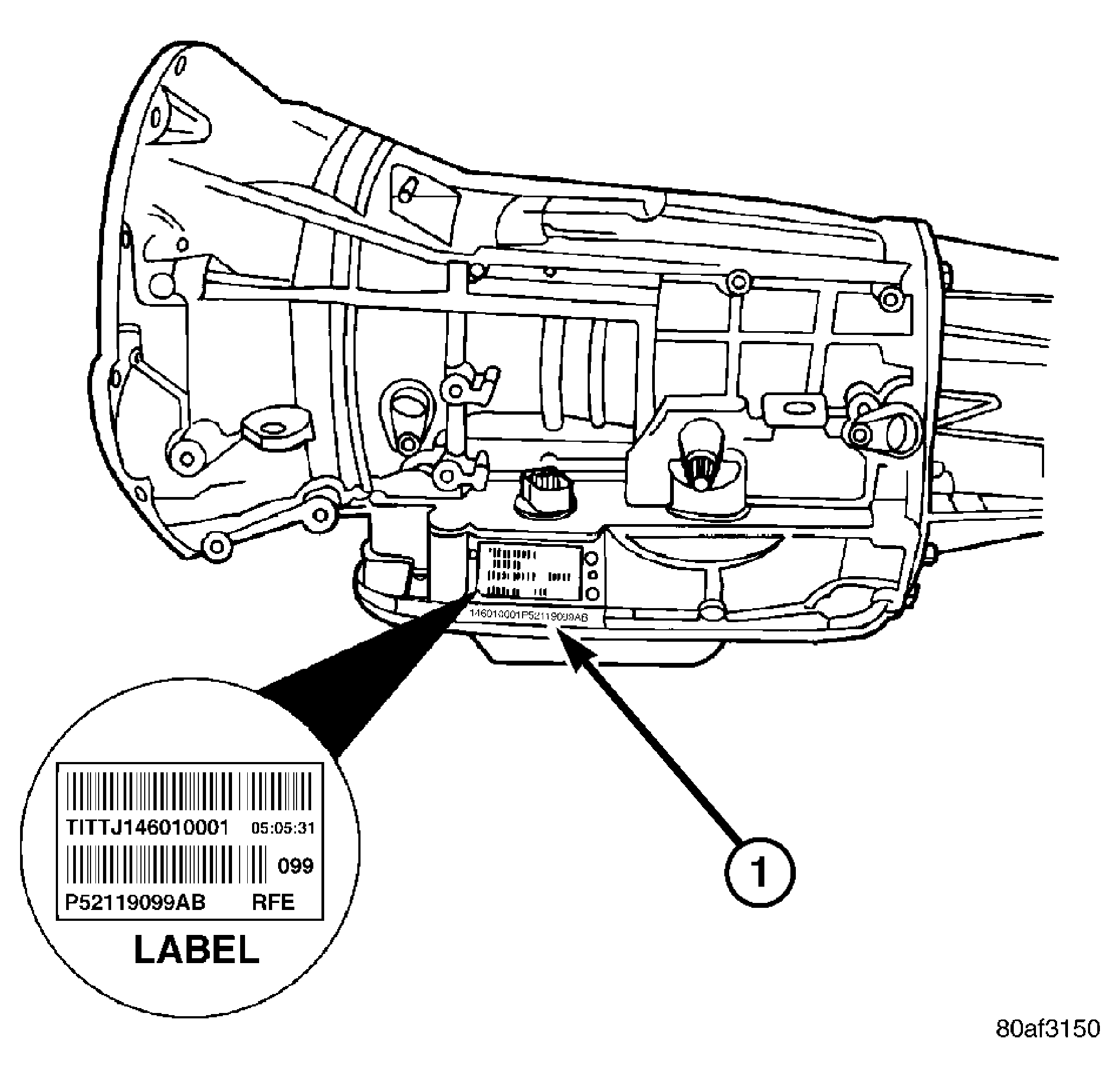

Fig 1: Transmission Part and Serial Number Location

Courtesy of DAIMLERCHRYSLER CORP.

1 - IDENTIFICATION NUMBERS (STAMPED)

Transmission identification numbers (1) are stamped on the left side of the case just above the oil pan sealing surface. See Fig 1. Refer to this information when ordering replacement parts. A label is attached to the transmission case above the stamped numbers. The label gives additional information which may also be necessary for identification purposes.
