Input Gear/Low Range Assembly

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Assemble low range gear, input gear thrust washers, input gear and input gear retainer. See Fig 1.

Install low range gear snap-ring. See Fig 2.

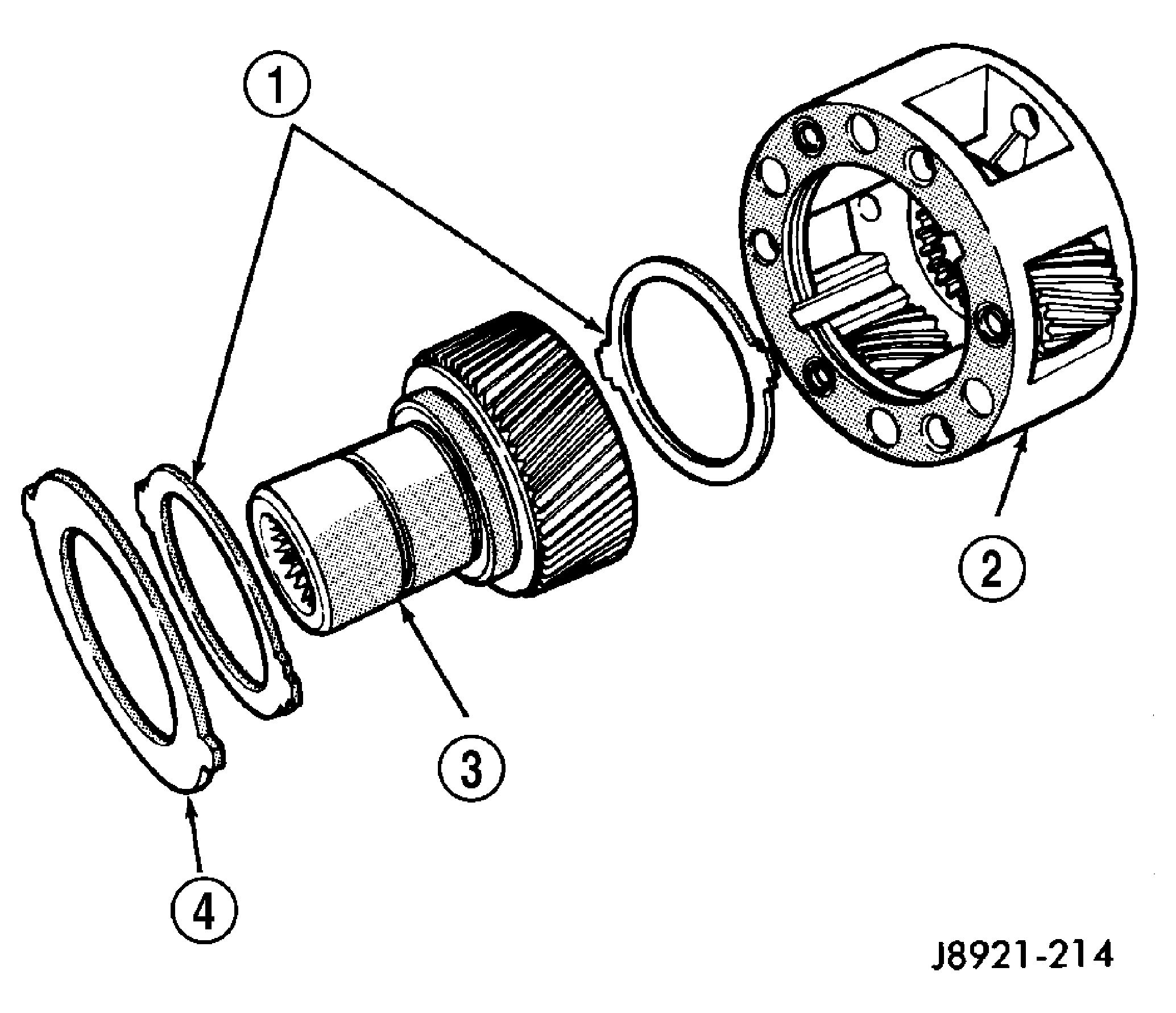

Fig 1: Low Range And Input Gear Assembly

Courtesy of DAIMLERCHRYSLER CORP.

1 - THRUST WASHERS

2 - LOW RANGE GEAR

3 - INPUT GEAR

4 - RETAINER

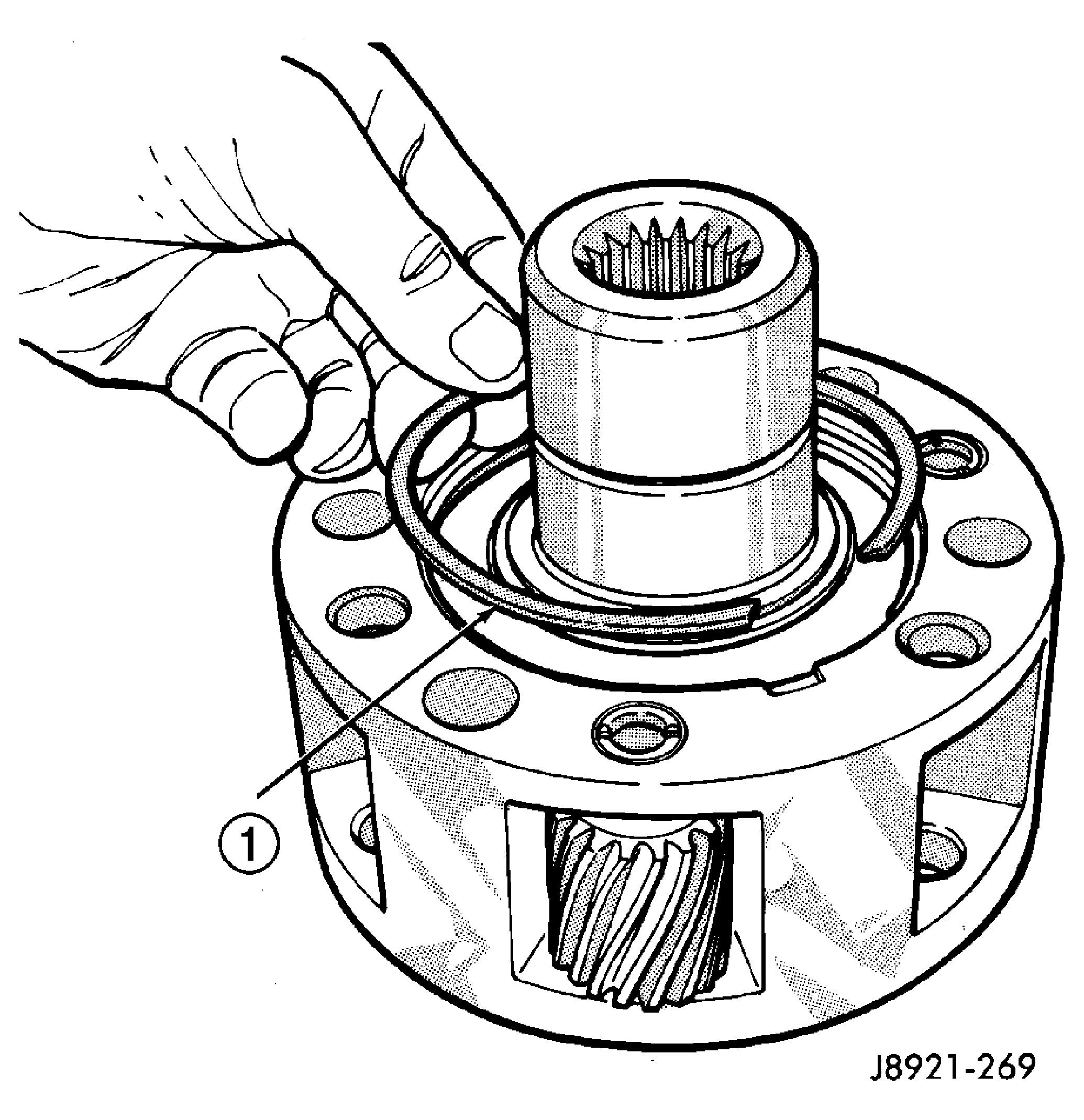

Fig 2: Identifying Low Range Gear Snap-Ring

Courtesy of DAIMLERCHRYSLER CORP.

1 - LOW RANGE GEAR SNAP-RING

Lubricate input gear and low range gears with automatic transmission fluid.
Start input gear shaft into front case bearing.
Press input gear shaft into front bearing.
Install new input gear snap ring. See Fig 3.

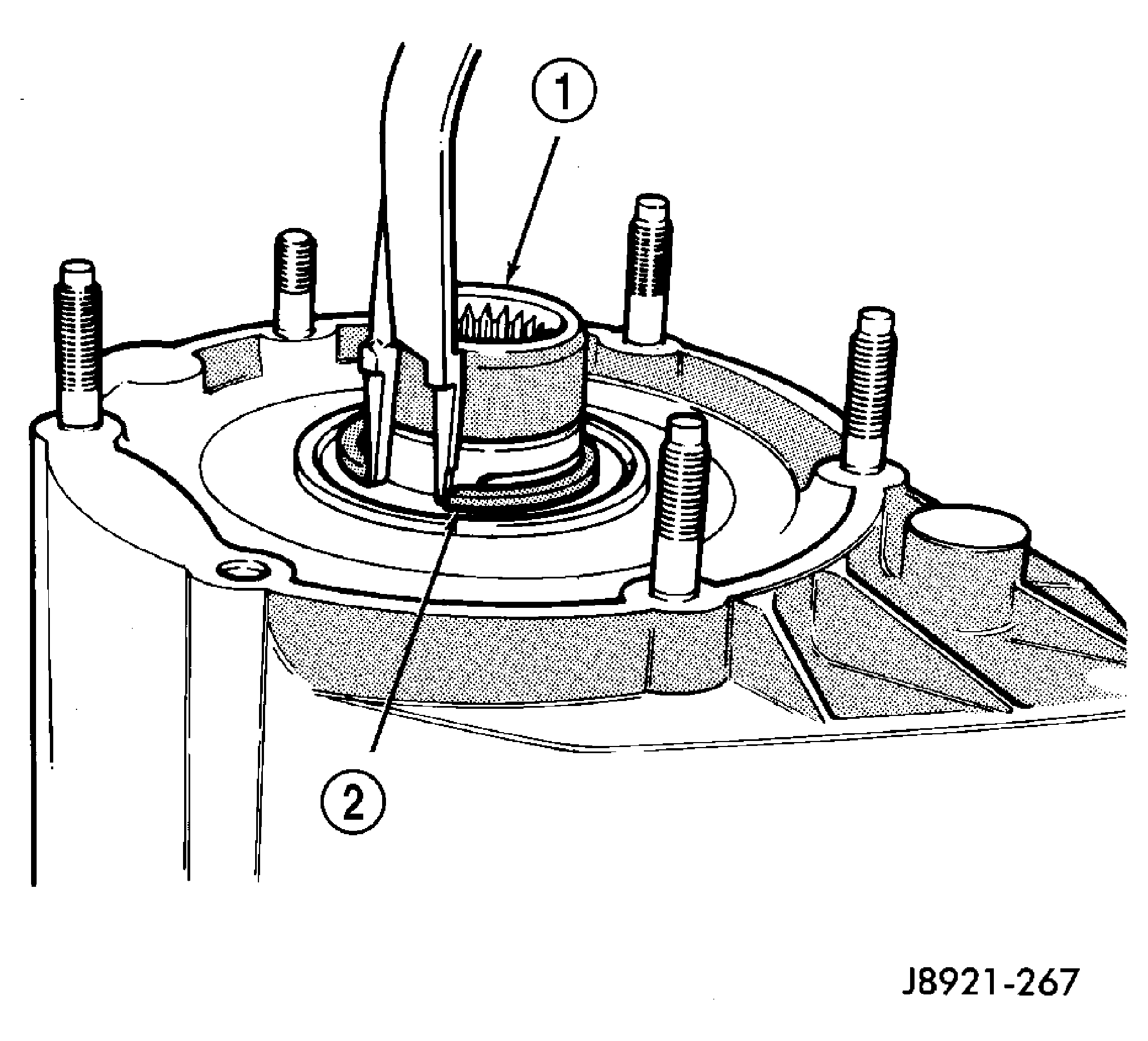

Fig 3: Inspecting Input Gear Snap-Ring
Courtesy of DAIMLERCHRYSLER CORP.

1 - INPUT GEAR

2 - SNAP-RING
Apply 3 mm (1/8 in.) wide bead of Mopar® gasket maker or silicone adhesive sealer to seal surface of front bearing retainer.
Install front bearing retainer. See Fig 4. Tighten retainer bolts to 16 ft. lbs. (21 N.m) torque.

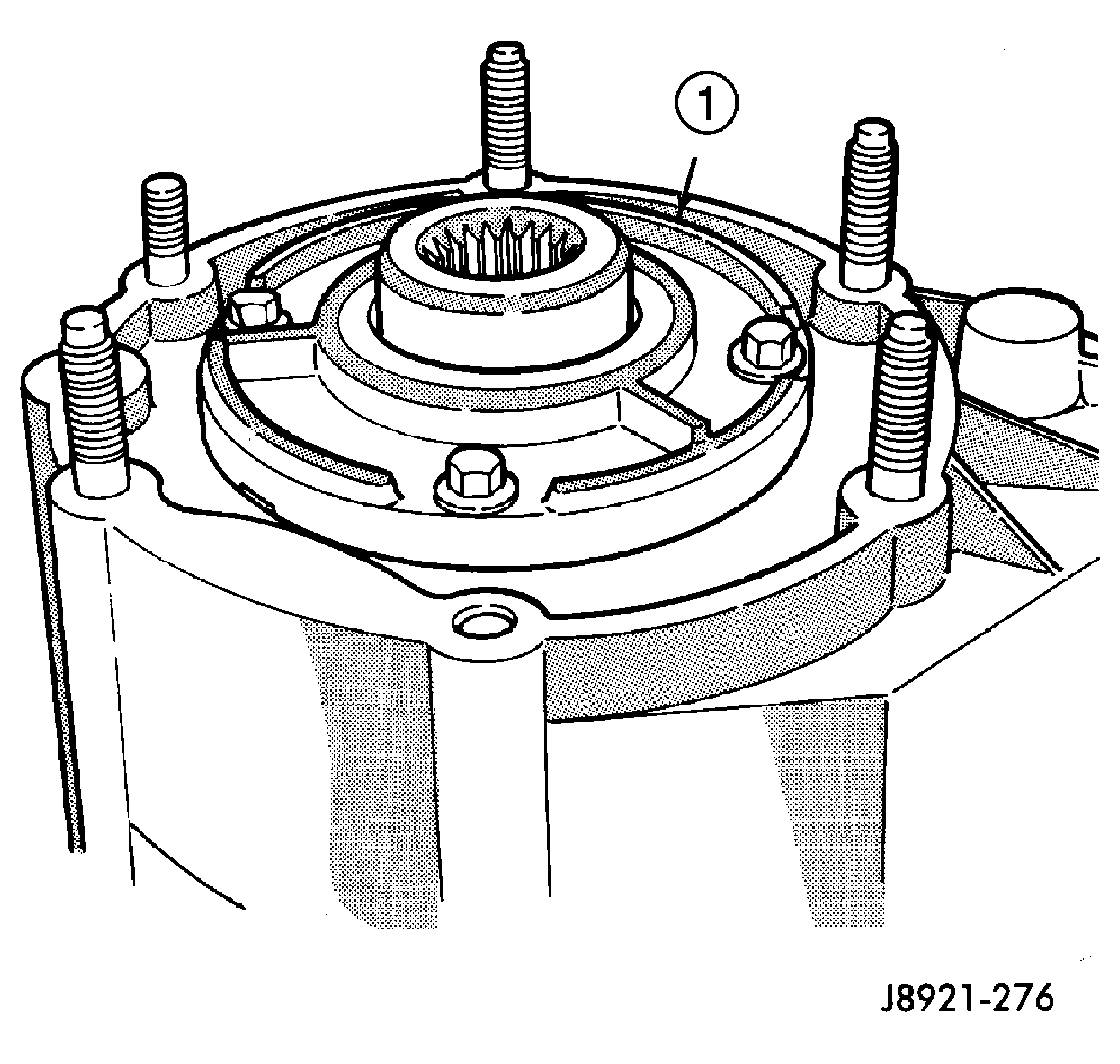

Fig 4: Installing Front Bearing Retainer

Courtesy of DAIMLERCHRYSLER CORP.

1 - FRONT BEARING RETAINER
