Front Output Shaft And Drive Chain

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install front output shaft. See Fig 1.
  2. Install drive chain. See Fig 1. Engage chain with front output shaft sprocket teeth.
  3. Install drive sprocket. See Fig 1. Engage drive sprocket teeth with chain. Then engage sprocket splines with mainshaft splines.

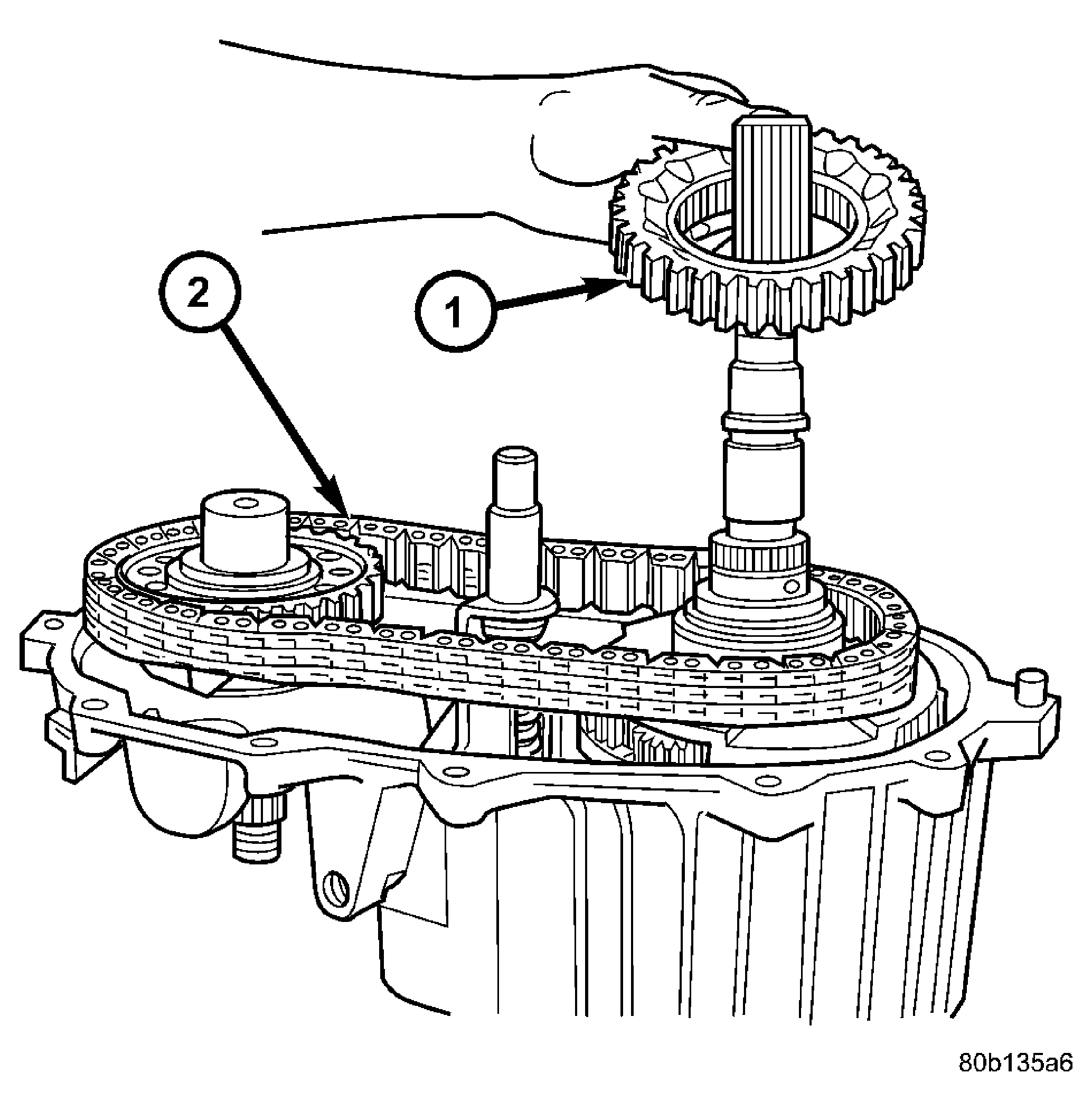

    Fig 1: Identifying Drive Chain And Sprocket
    GC0017421Courtesy of DAIMLERCHRYSLER CORP.
    1 - DRIVE SPROCKET
    2 - DRIVE CHAIN
  4. Install drive sprocket snap-ring. See Fig 2.

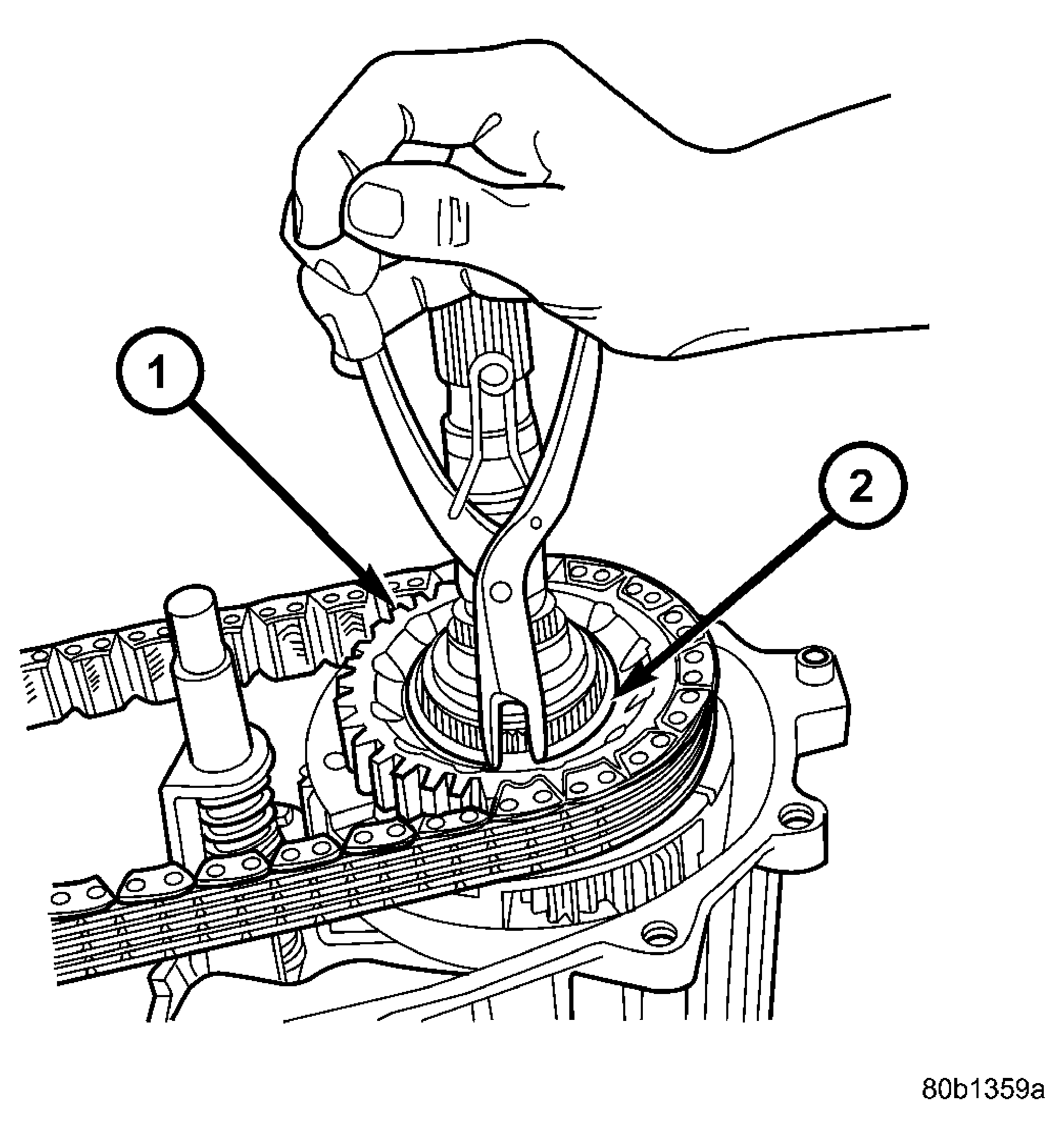

Fig 2: Identifying Drive Sprocket Snap-Ring
GC0017420Courtesy of DAIMLERCHRYSLER CORP.
1 - DRIVE SPROCKET
2 - DRIVE SPROCKET SNAP-RING
