Transfer Case - NV242: Assembly: Differential

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate differential components with automatic transmission fluid.
  2. Install sprocket gear in differential bottom case. See Fig 1.

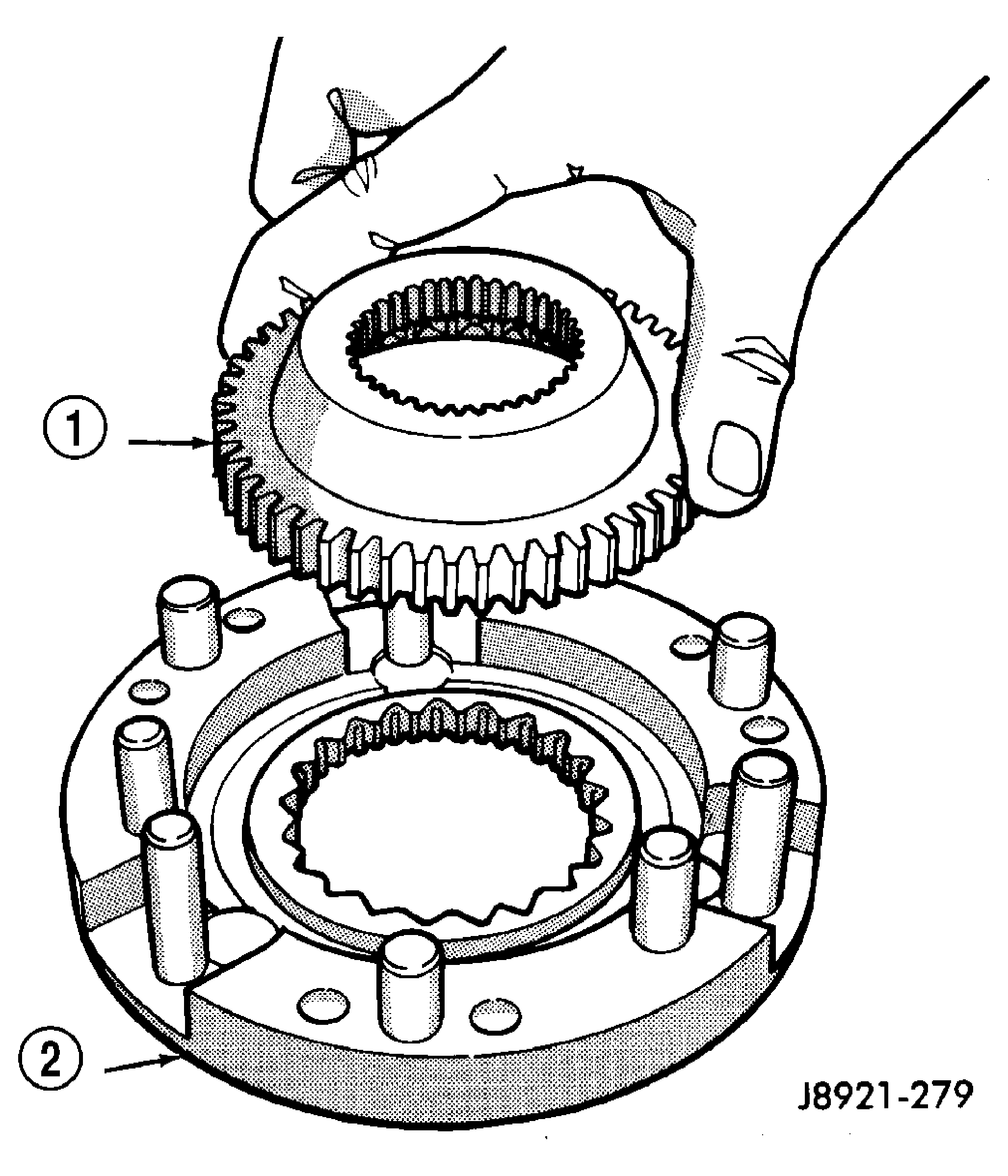

    Fig 1: Installing Differential Sprocket Gear
    GC0017447Courtesy of DAIMLERCHRYSLER CORP.
    1 - SPROCKET GEAR
    2 - BOTTOM CASE
  3. Install differential planet gears and new thrust washers. See Fig 2. Be sure thrust washers are installed at top and bottom of each planet gear.
  4. Install differential mainshaft gear. See Fig 2.
  5. Align and position differential top case on bottom case. See Fig 3. Align using scribe marks made at disassembly.
  6. While holding differential case halves together, invert the differential and start the differential case bolts.
  7. Tighten differential case bolts to specified torque.

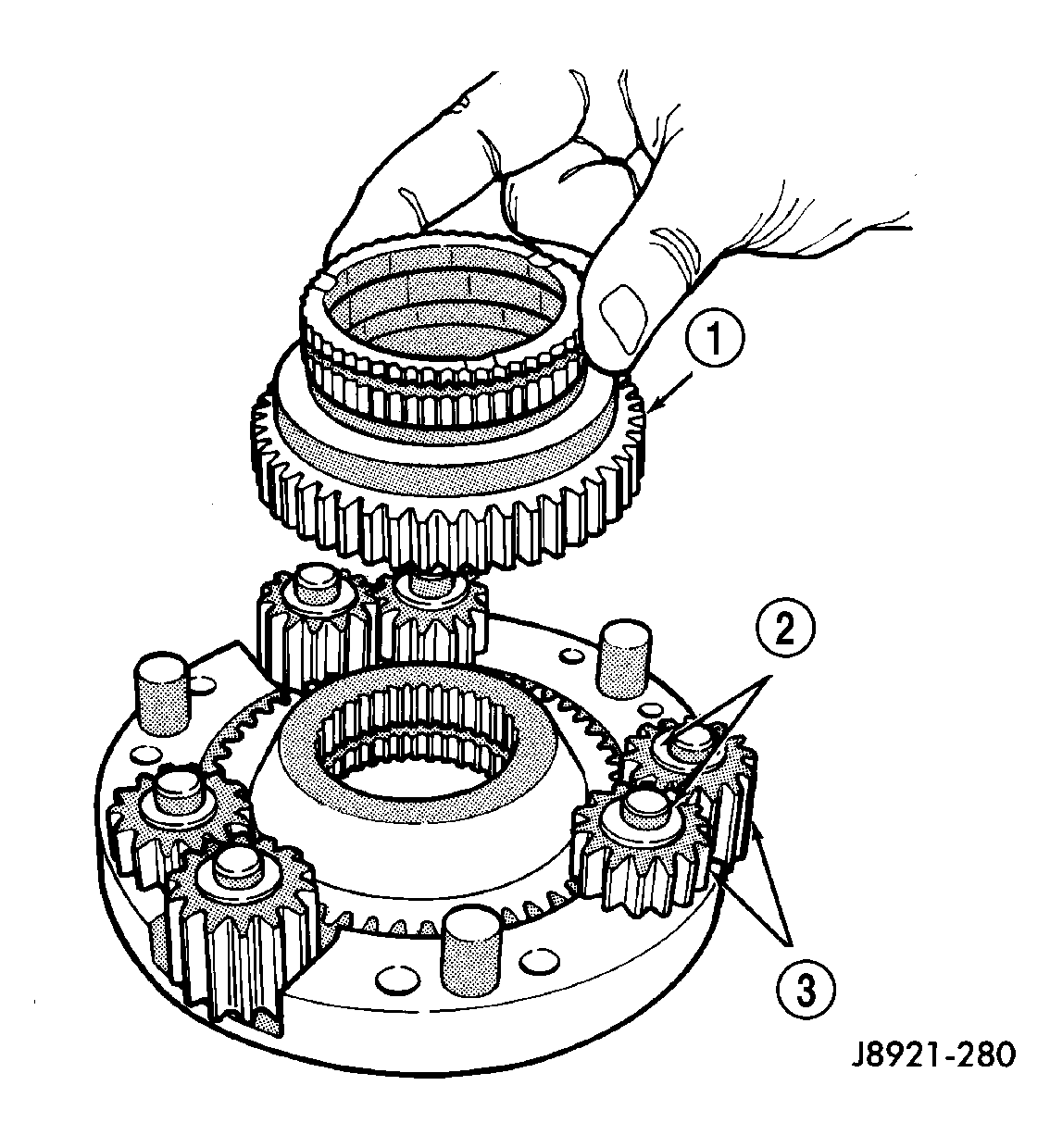

Fig 2: Installing Mainshaft And Planet Gears
GC0017448Courtesy of DAIMLERCHRYSLER CORP.
1 - MAINSHAFT GEAR
2 - THRUST WASHERS (12)
3 - PLANET GEARS (6)

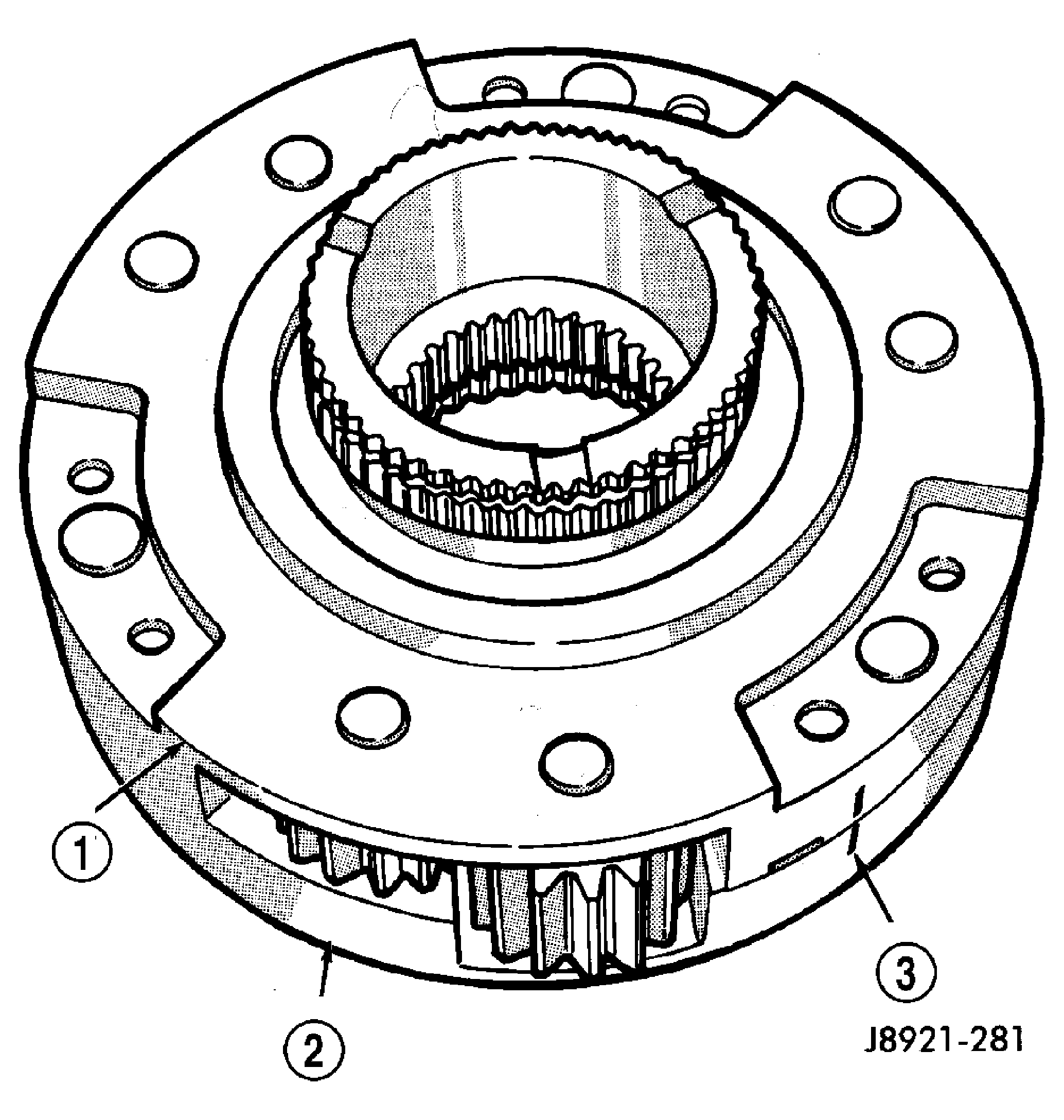

Fig 3: Differential Case Assembly
GC0017449Courtesy of DAIMLERCHRYSLER CORP.
1 - TOP CASE
2 - BOTTOM CASE
3 - CASE ALIGNMENT MARKS
