Position Sensor: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Disengage the transfer case position sensor connector from the position sensor. See Fig 1.
Remove the position sensor from the transfer case.

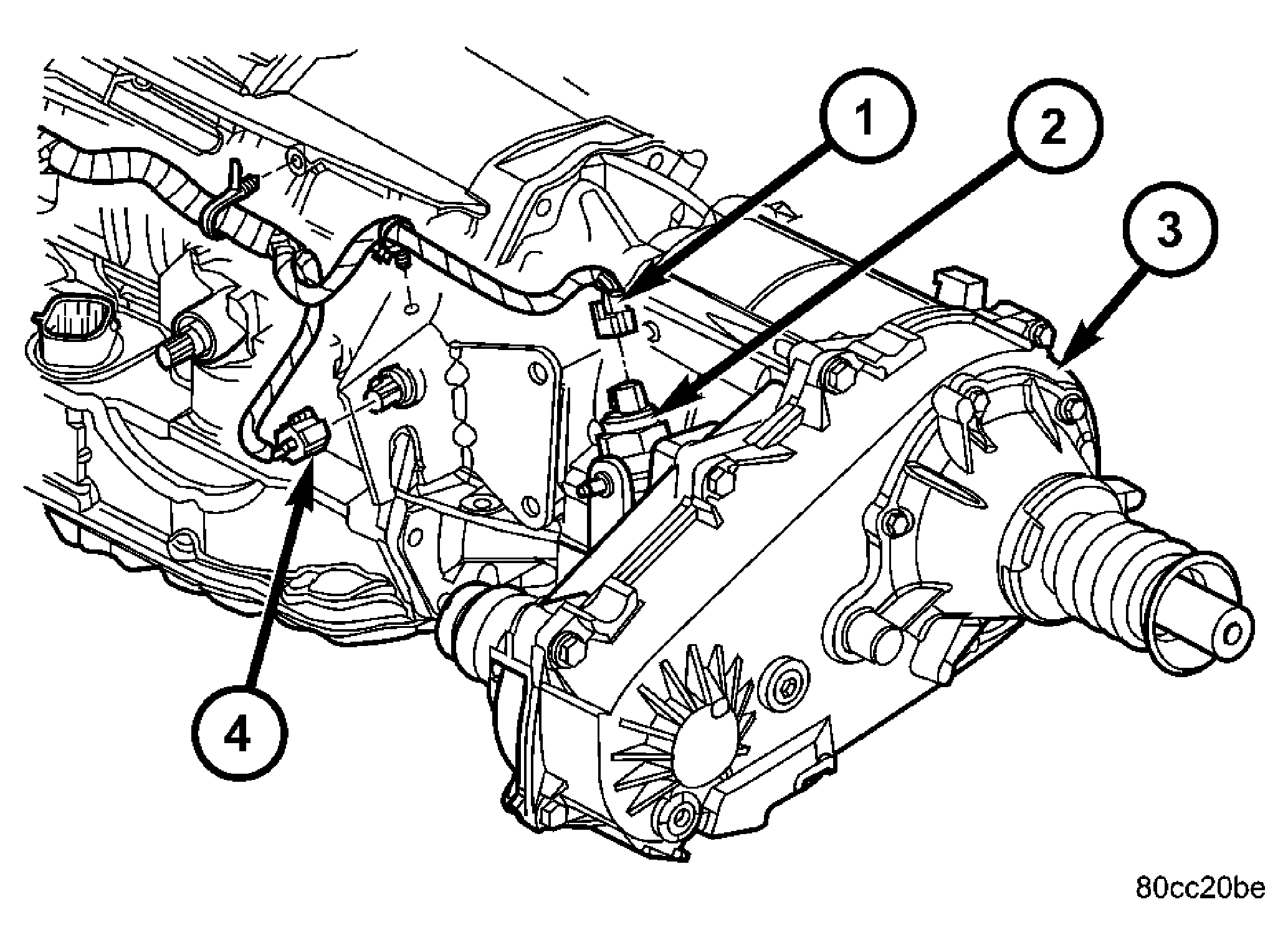

Fig 1: Transfer Case Position Sensor and Connector

Courtesy of DAIMLERCHRYSLER CORP.

1 - TRANSFER CASE POSITION SENSOR CONNECTOR

2 - TRANSFER CASE POSITION SENSOR

3 - TRANSFER CASE

4 - OUTPUT SPEED SENSOR CONNECTOR
