Front Output Shaft Seal: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

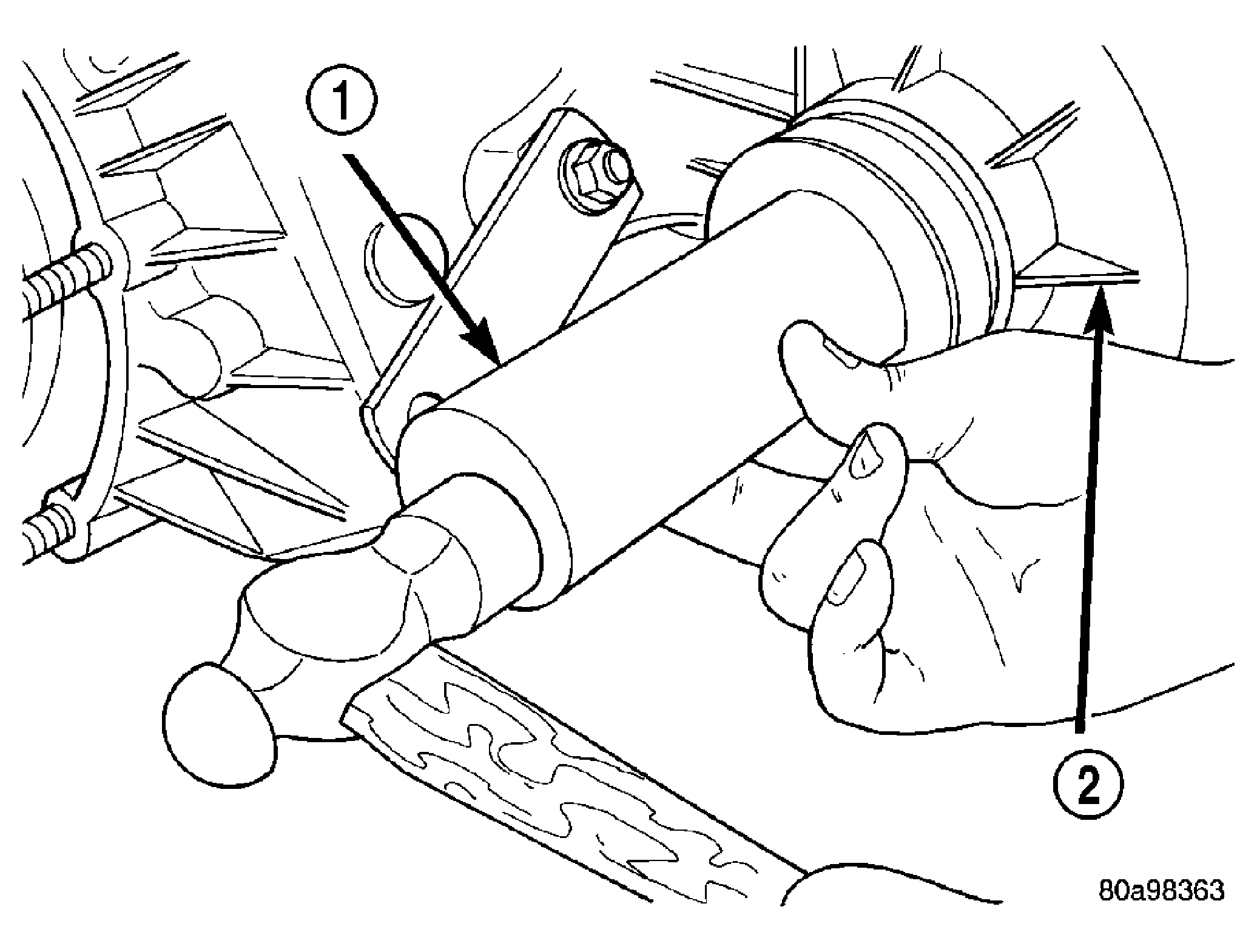

Fig 1: Install Front Output Shaft Seal - Typical

Courtesy of DAIMLERCHRYSLER CORP.

1 - INSTALLER 6952-A

2 - TRANSFER CASE

Install new front output seal in front case (2) with Installer Tool 6952-A (1) as follows: See Fig 1.
- Place new seal on tool. Garter spring on seal goes toward interior of case.
- Start seal in bore with light taps from hammer. Once seal is started, continue tapping seal into bore until installer tool seats against case.
Install the front output shaft companion flange.
Install the front propeller shaft. (Refer to DIFFERENTIAL & DRIVELINE/PROPELLER SHAFT/PROPELLER SHAFT - INSTALLATION)
