Rear Extension

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

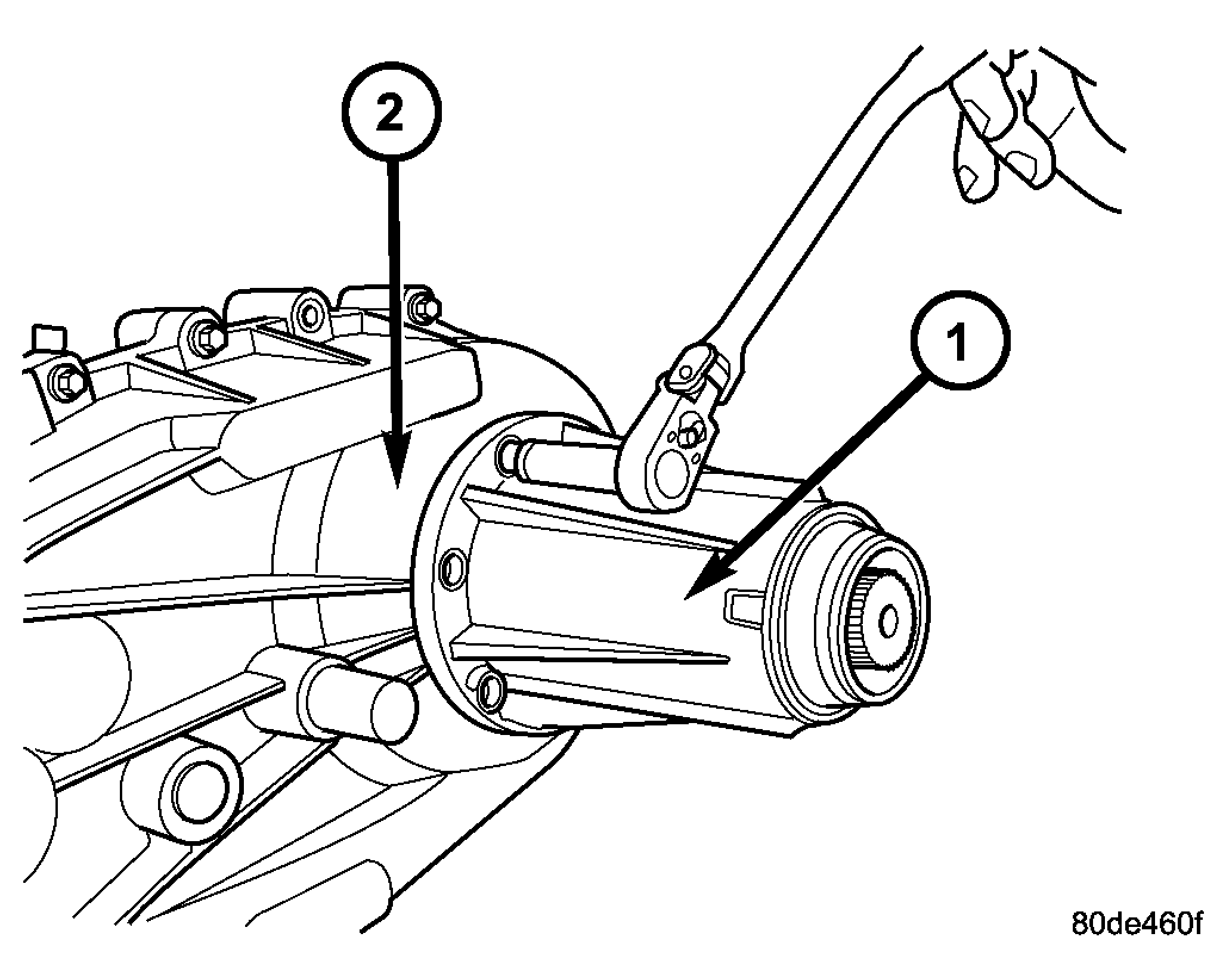

Fig 1: Removing/Installing Rear Extension Bolts

Courtesy of DAIMLERCHRYSLER CORP.

1 - EXTENSION HOUSING

2 - TRANSFER CASE

Remove rear extension (1) bolts. See Fig 1.

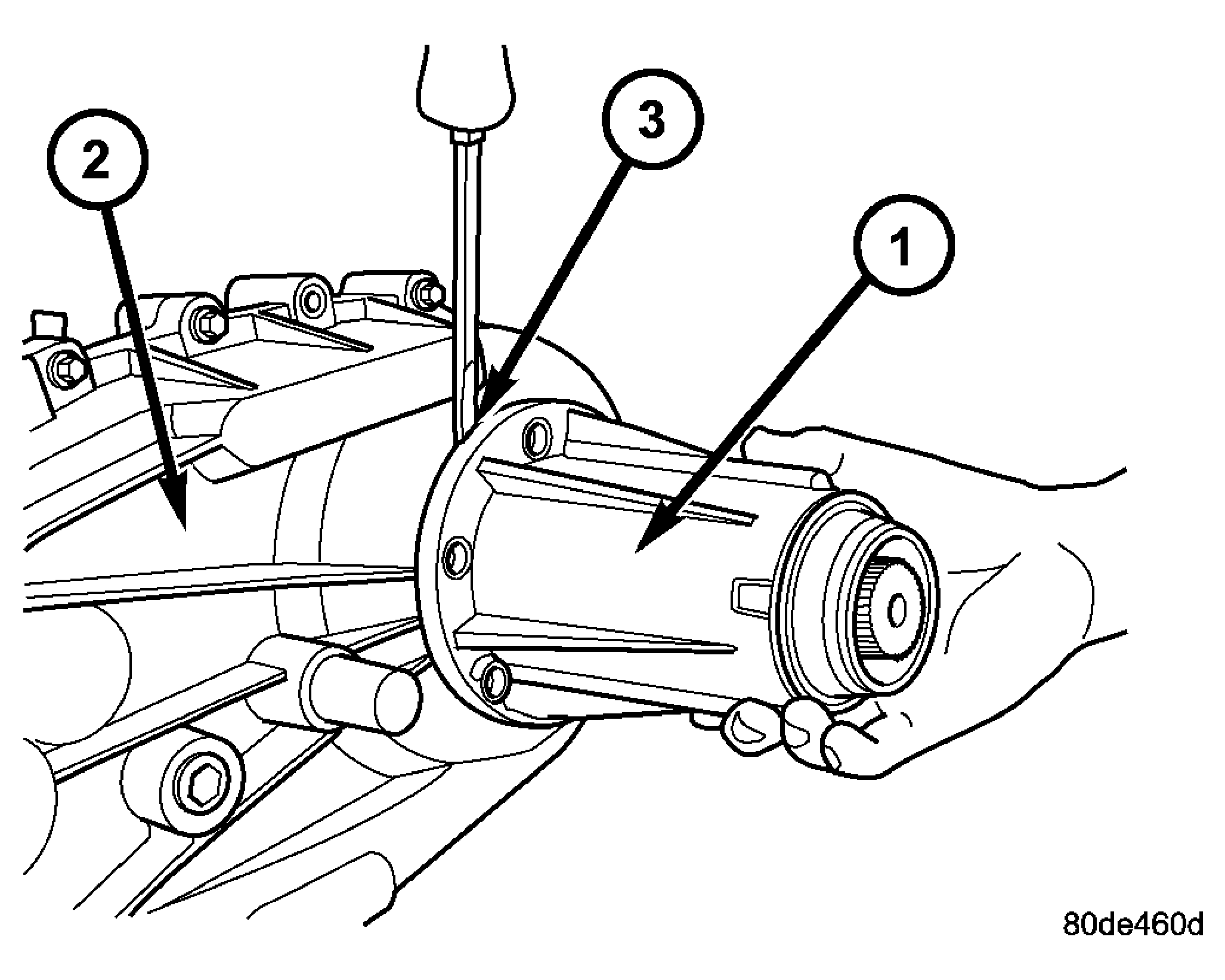

Fig 2: Remove Rear Extension

Courtesy of DAIMLERCHRYSLER CORP.

1 - EXTENSION HOUSING

2 - TRANSFER CASE

3 - PRY SLOT

Remove rear extension housing (1). See Fig 2. Tap extension once or twice with a plastic mallet to break sealer bead and loosen it.

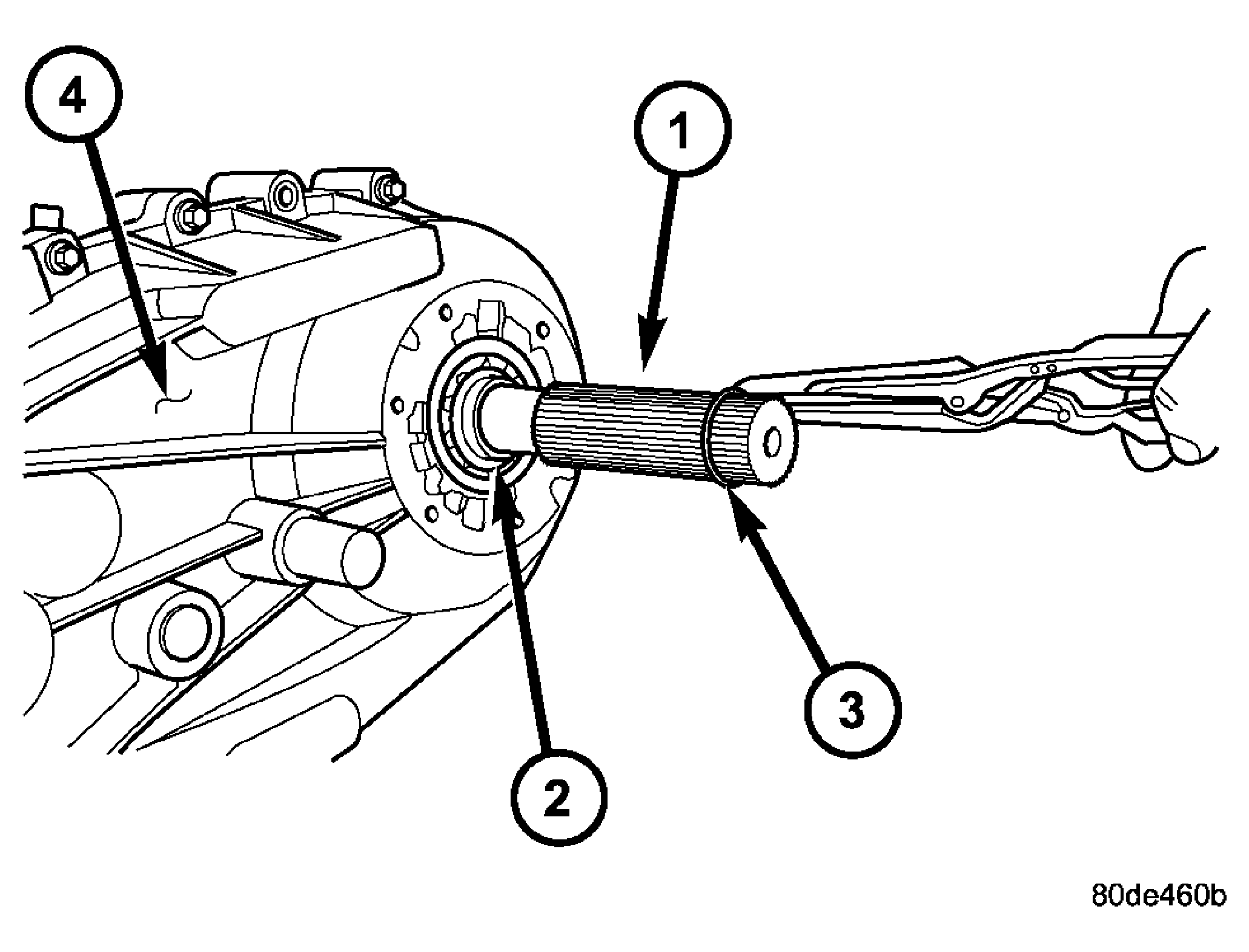

Fig 3: Removing/Installing Output Shaft Retaining Ring

Courtesy of DAIMLERCHRYSLER CORP.

1 - REAR OUTPUT SHAFT

2 - OUTPUT SHAFT BEARING

3 - RETAINING RING

4 - TRANSFER CASE

Remove output bearing (2) retaining ring (3) with heavy duty snap-ring pliers. See Fig 3.
