Torque Converter: Description: Stator

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

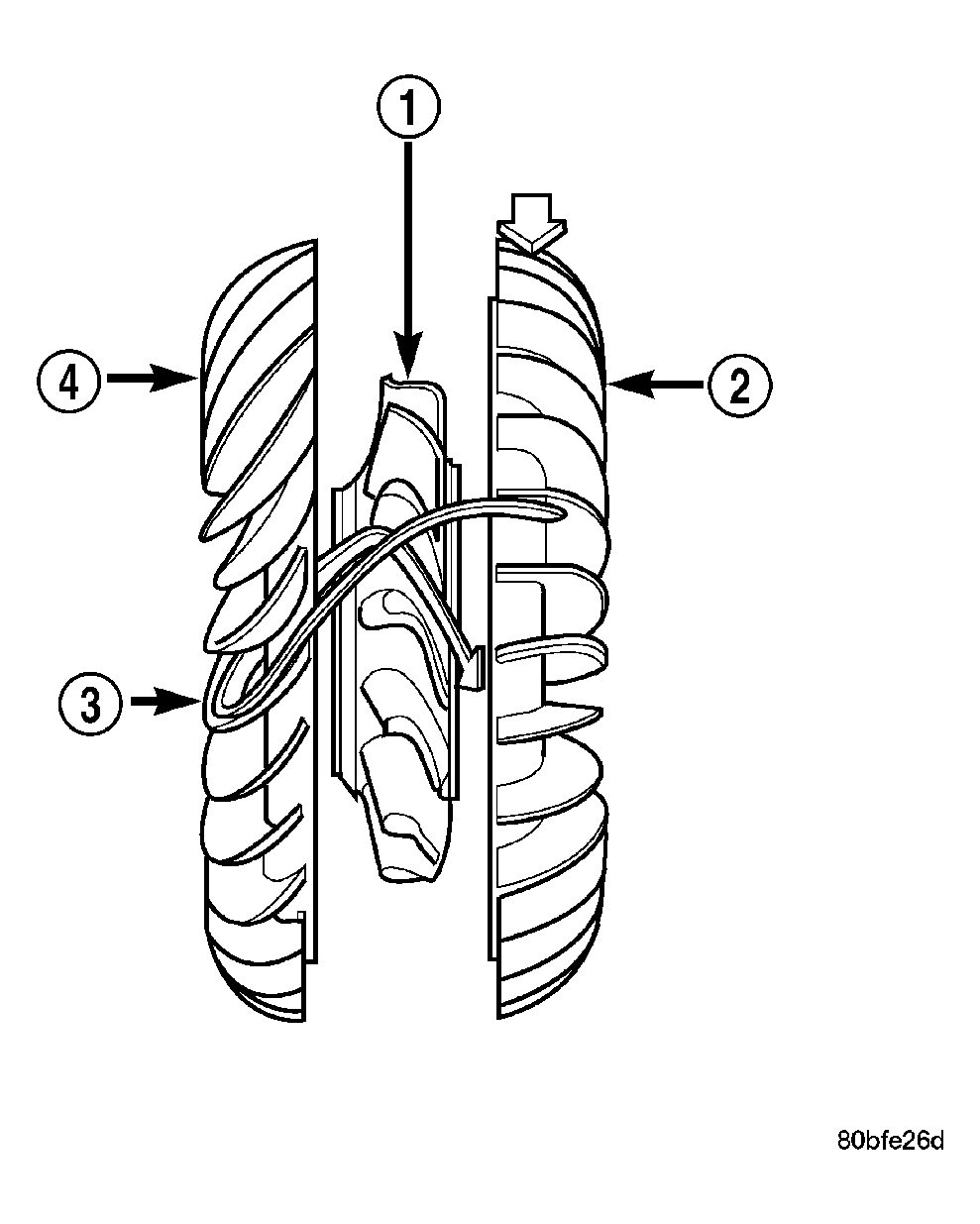

Fig 1: Stator Location

Courtesy of DAIMLERCHRYSLER CORP.

1 - STATOR

2 - IMPELLER

3 - FLUID FLOW

4 - TURBINE

The stator assembly is mounted on a stationary shaft which is an integral part of the oil pump. The stator (1) is located between the impeller (2) and the turbine (4) within the torque converter case. See Fig 1.

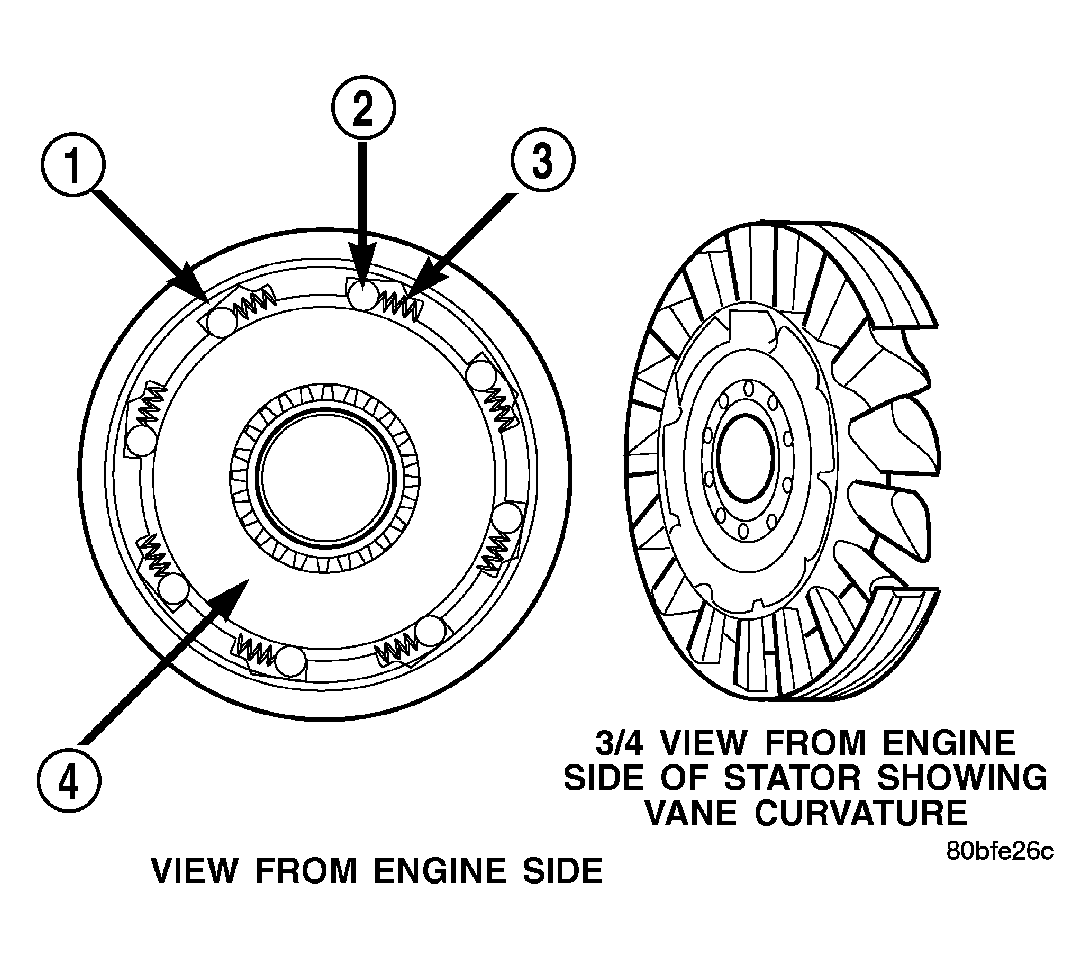

Fig 2: Stator Components

Courtesy of DAIMLERCHRYSLER CORP.

1 - CAM (OUTER RACE)

2 - ROLLER

3 - SPRING

4 - INNER RACE

The stator contains an over-running clutch (1-4), which allows the stator to rotate only in a clockwise direction. When the stator is locked against the over-running clutch, the torque multiplication feature of the torque converter is operational. See Fig 2.
