Extension Housing Seal: Installation

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

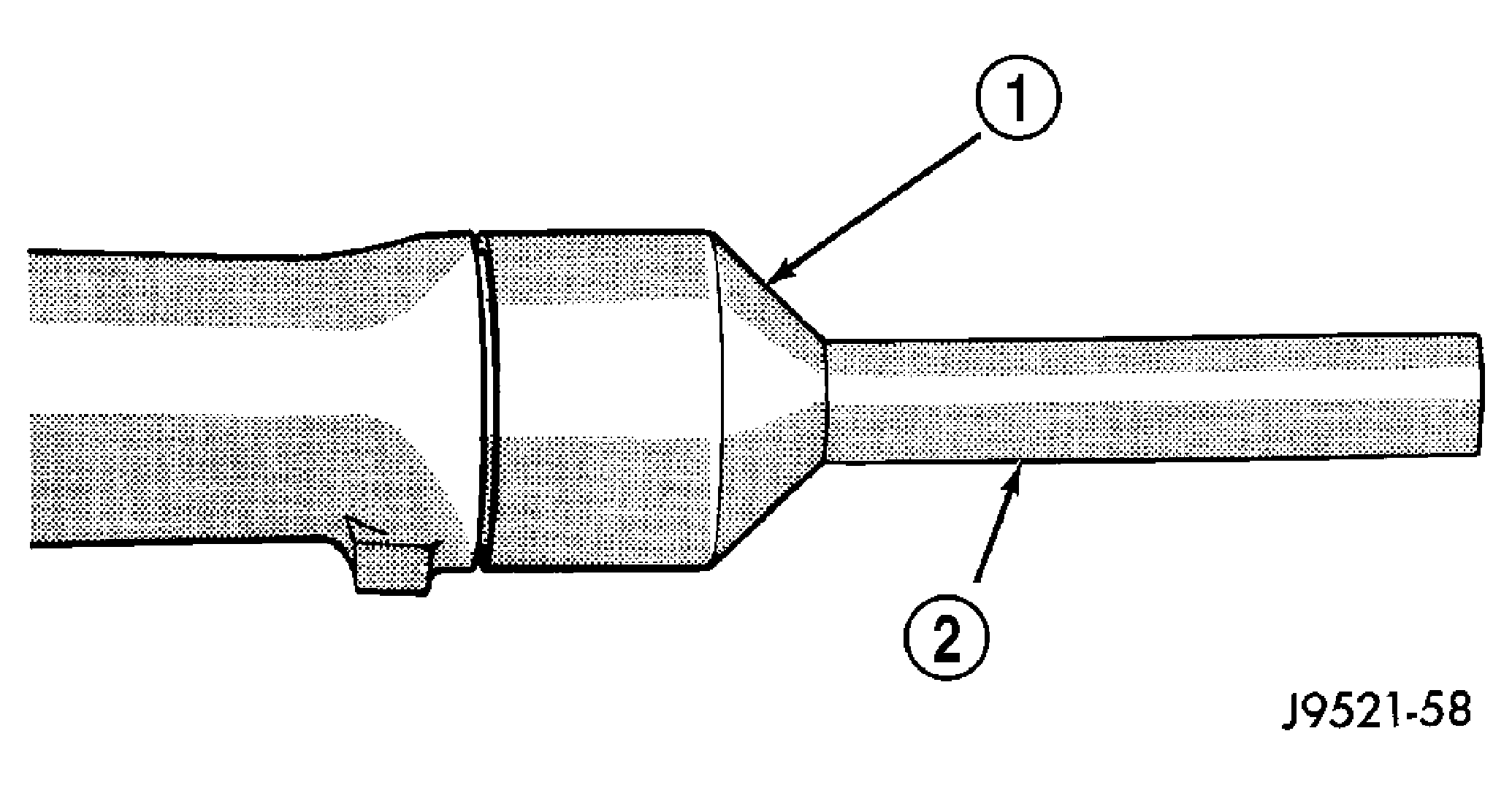

Fig 1: Installing Transmission Housing Seal

Courtesy of DAIMLERCHRYSLER CORP.

1 - SPECIAL TOOL C-3995-A OR C-3972-A

2 - SPECIAL TOOL C-4471

Place seal in position on overdrive housing.
Drive seal into overdrive housing with Seal Installer C-3995-A (1). See Fig 1.
Carefully guide propeller shaft slip yoke into housing and onto output shaft splines. Align marks made at removal and connect propeller shaft to rear axle pinion yoke.
