Section 510 (Tires & Wheels): Studs: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Do not use a hammer to remove wheel studs.
- Raise and support vehicle.
- Remove wheel and tire assembly.
- Remove brake caliper, caliper adapter and rotor, (Refer to BRAKES/HYDRAULIC/MECHANICAL/DISC BRAKE CALIPERS - REMOVAL) .

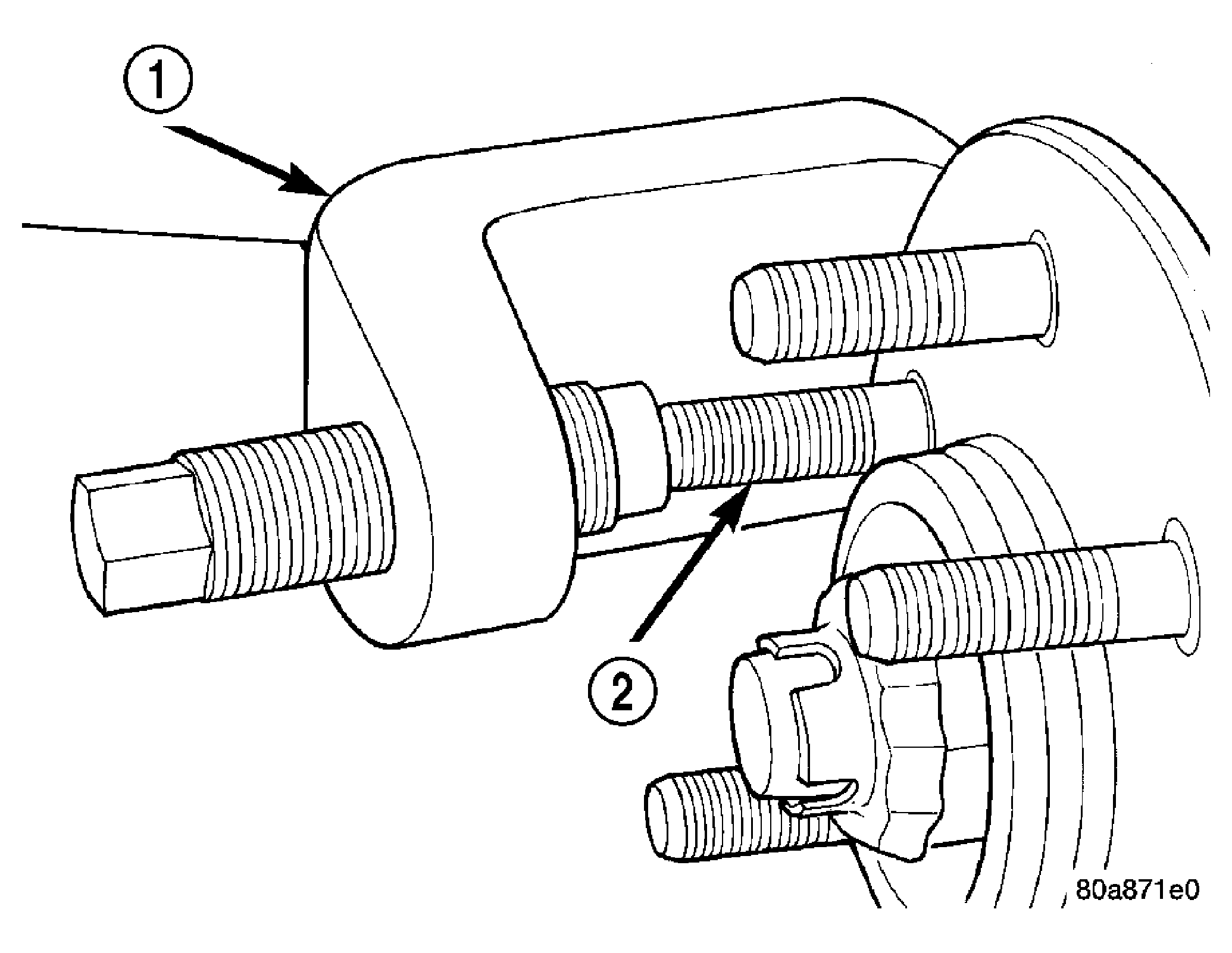

- Remove stud from hub with Remover C-4150A. See Fig 1.
| 1 - REMOVER |
| 2 - WHEEL STUD |
