Ride Height

The vehicle suspension height should be measured before performing wheel alignment procedure. Also when front suspension components have been replaced. This measure must be performed with the vehicle supporting it's own weight and taken on both sides of the vehicle.

Front and rear ride heights are not adjustable. The spring selections at assembly determine ride height for acceptable appearance of the vehicle. Ride height dimensions assume full fluids (including fuel) and zero passengers. Refer to the table below for front ride height dimensions.

Vehicle ride height audits should be performed utilizing the following procedure:

1. Drive the vehicle straight and forward on a non-tacky surface for a minimum of 20 feet to neutralize track width.
2. Bounce the front of the vehicle five times.
3. Measure and record the dimensions

FRONT RIDE HEIGHT

Front ride height is defined by the relative vertical distance between the spindle center line and the rear pivot point of the front lower control arm to cradle attachment. The spindle center line is to be measured at the outer wheel face (point A). The rear pivot point is to be measured at the center of the cam/pivot bolt (point B) at its rearward most end (nut end). See Fig 1

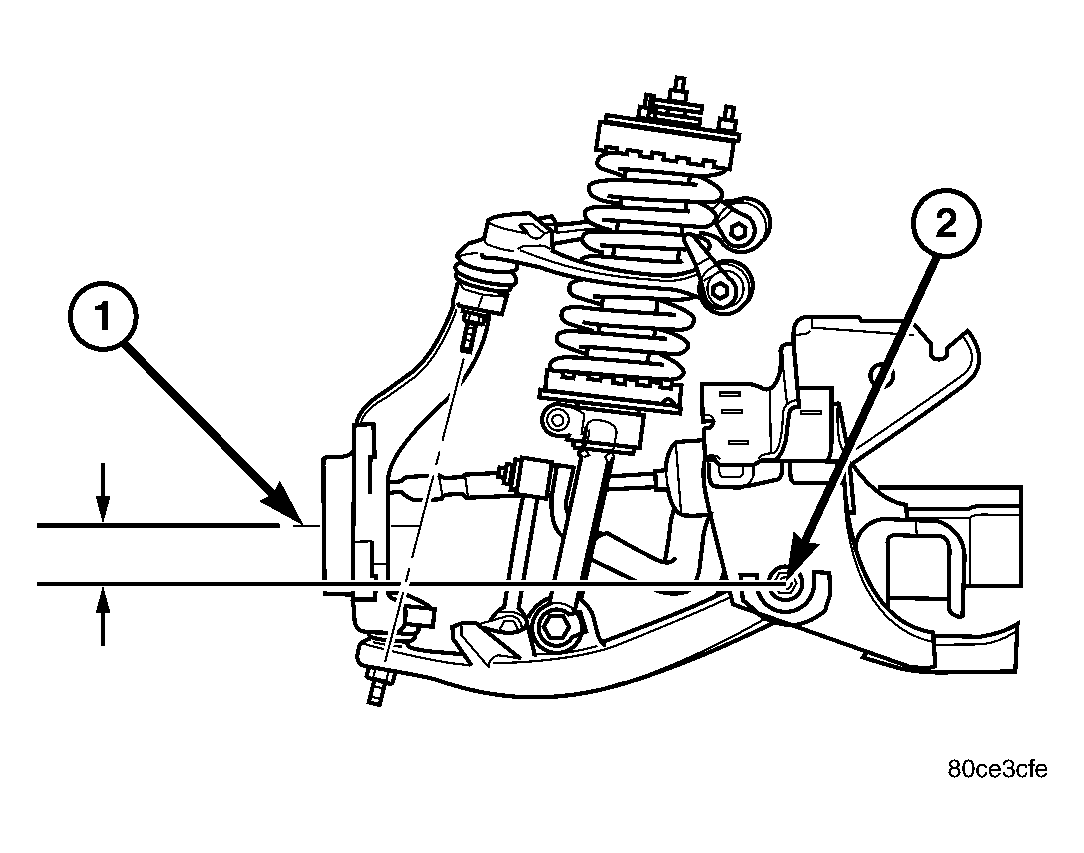

Fig 1: Front Ride Height Measurement

Courtesy of DAIMLERCHRYSLER CORP.

REAR RIDE HEIGHT

Rear ride height is defined by the relative vertical distance between the top of the lower spring seat strike surface and the bottom of the jounce cup (true metal to metal jounce travel). This is to be measured vertically inside the coil from the point intersecting the inboard edge and the for/aft center of the jounce cup (point C) down to the strike surface (point D). See Fig 2

Fig 2: Rear Ride Height Measurement

Courtesy of DAIMLERCHRYSLER CORP.
