Stabilizer Bar: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove the stabilizer bar bolts from the lower suspension arm. See Fig 1.
Remove the stabilizer bar.

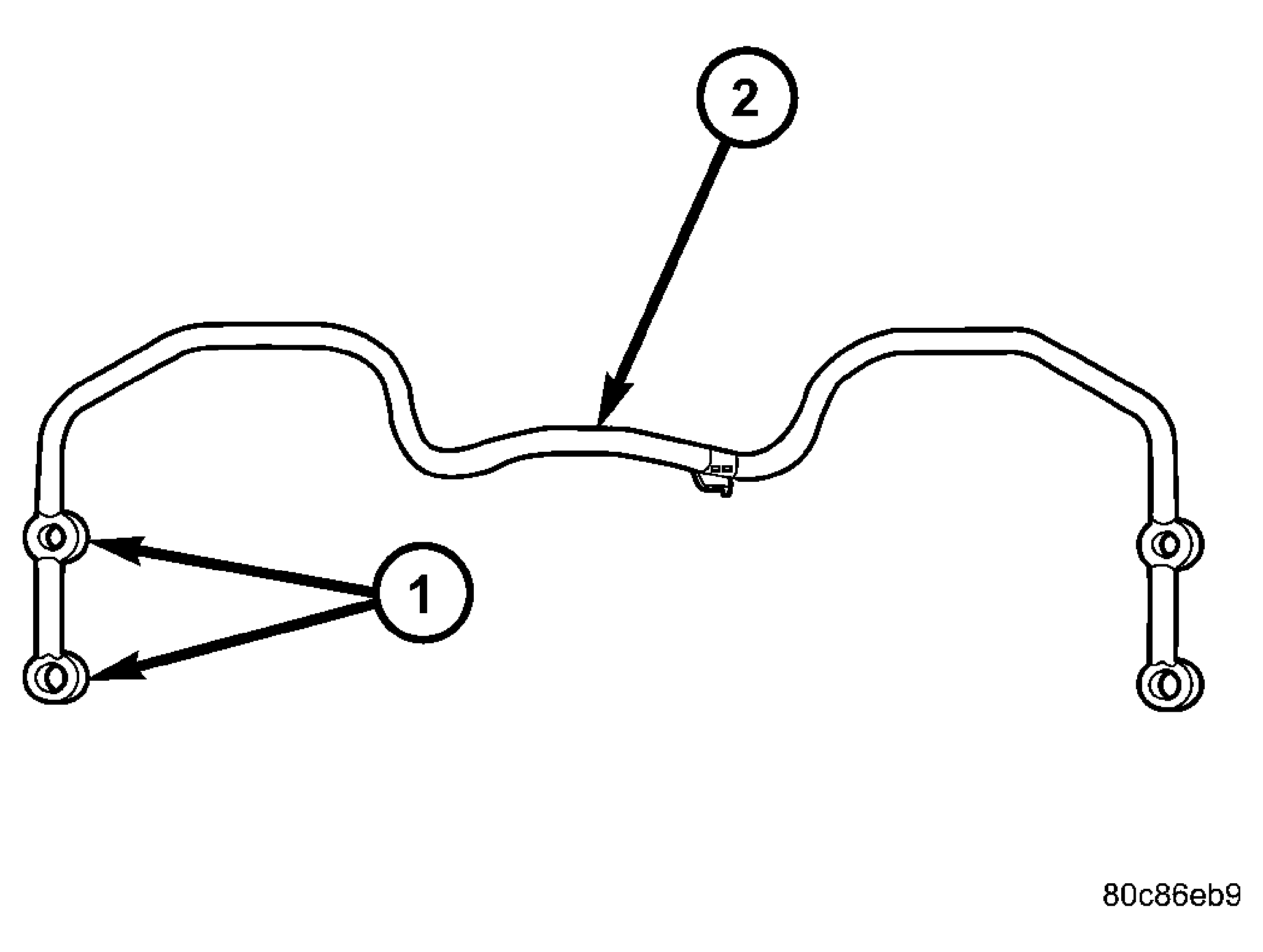

Fig 1: Rear Stabilizer Bar

Courtesy of DAIMLERCHRYSLER CORP.

1 - MOUNTING HOLES

2 - STABILIZER BAR
