Stabilizer Link: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle.
Remove the tire and wheel assembly.
Remove the lower stabilizer link bolt at the lower control arm.
Remove the upper stabilizer link bolt at the stabilizer bar.
Remove the stabilizer link. See Fig 1

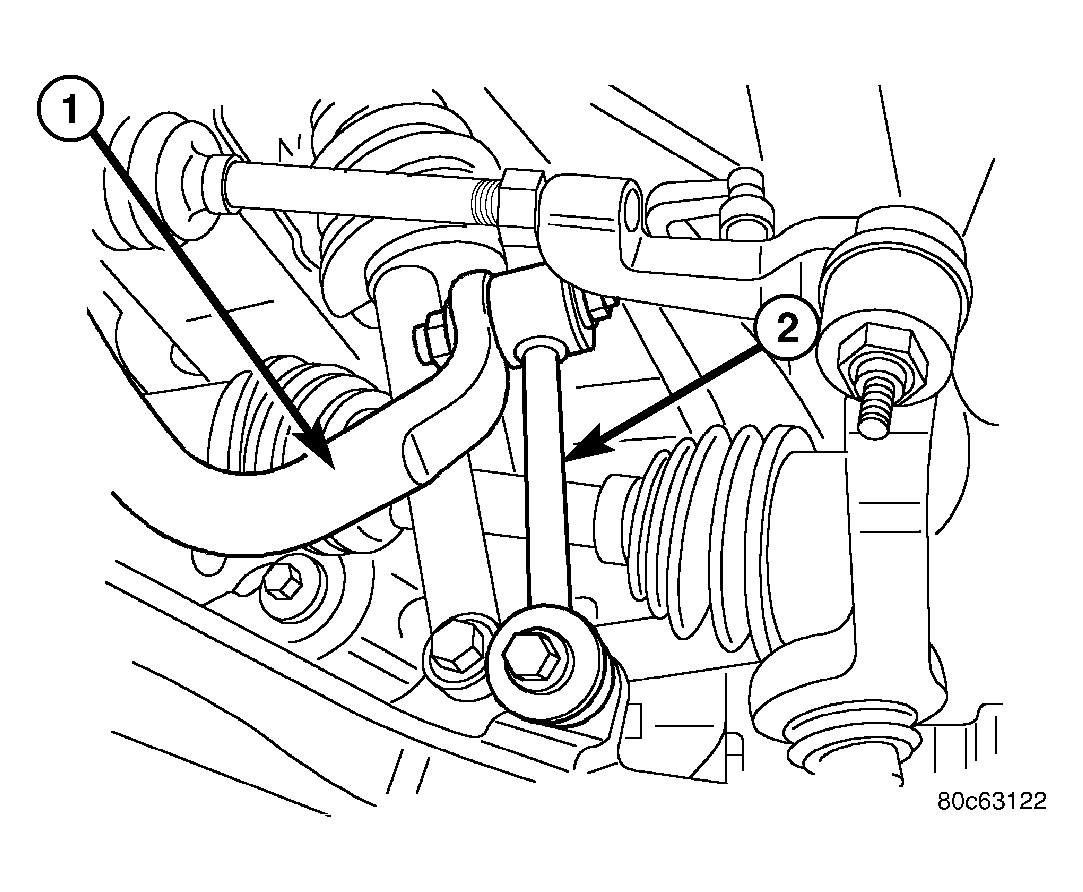

Fig 1: STABILIZER BAR LINK

Courtesy of DAIMLERCHRYSLER CORP.

1 - STABILIZER BAR

2 - STABILIZER BAR LINK
