Removal - Lower Control Arm Bushing

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the lower control arm (Refer to SUSPENSION/FRONT/LOWER CONTROL ARM - REMOVAL) .
Secure the control arm in a vise.
NOTE: Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.
Press the bushing out using special tools 8858-5 (Receiver), 8858-6 (Driver) and 8839 with the threaded rod and the bearing as shown. See Fig 1

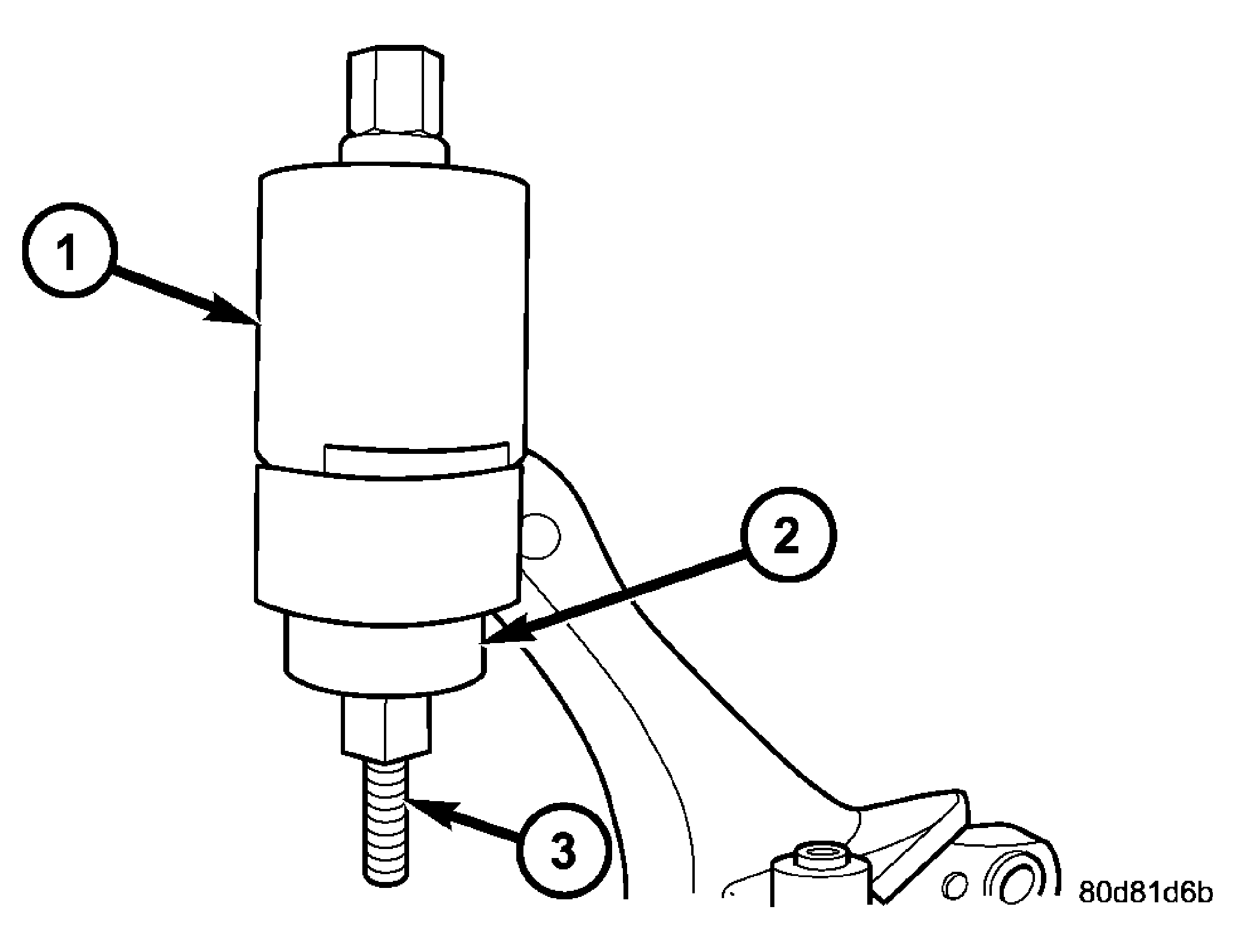

Fig 1: Lower Control Arm Bushing - Removal

Courtesy of DAIMLERCHRYSLER CORP.

1 - 8858-5 RECEIVER

2 - 8858-6 DRIVER

3 - 8839 THREADED ROD
