Removal - Clevis Bracket Bushing

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the clevis bracket from the shock (Refer to SUSPENSION/FRONT/CLEVIS BRACKET - REMOVAL) .
NOTE: Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.
Press the bushing out using special tools 8858-1 (receiver), 8858-3 (driver) and 8839 with the threaded rod 8839 and the bearing as shown. See Fig 1

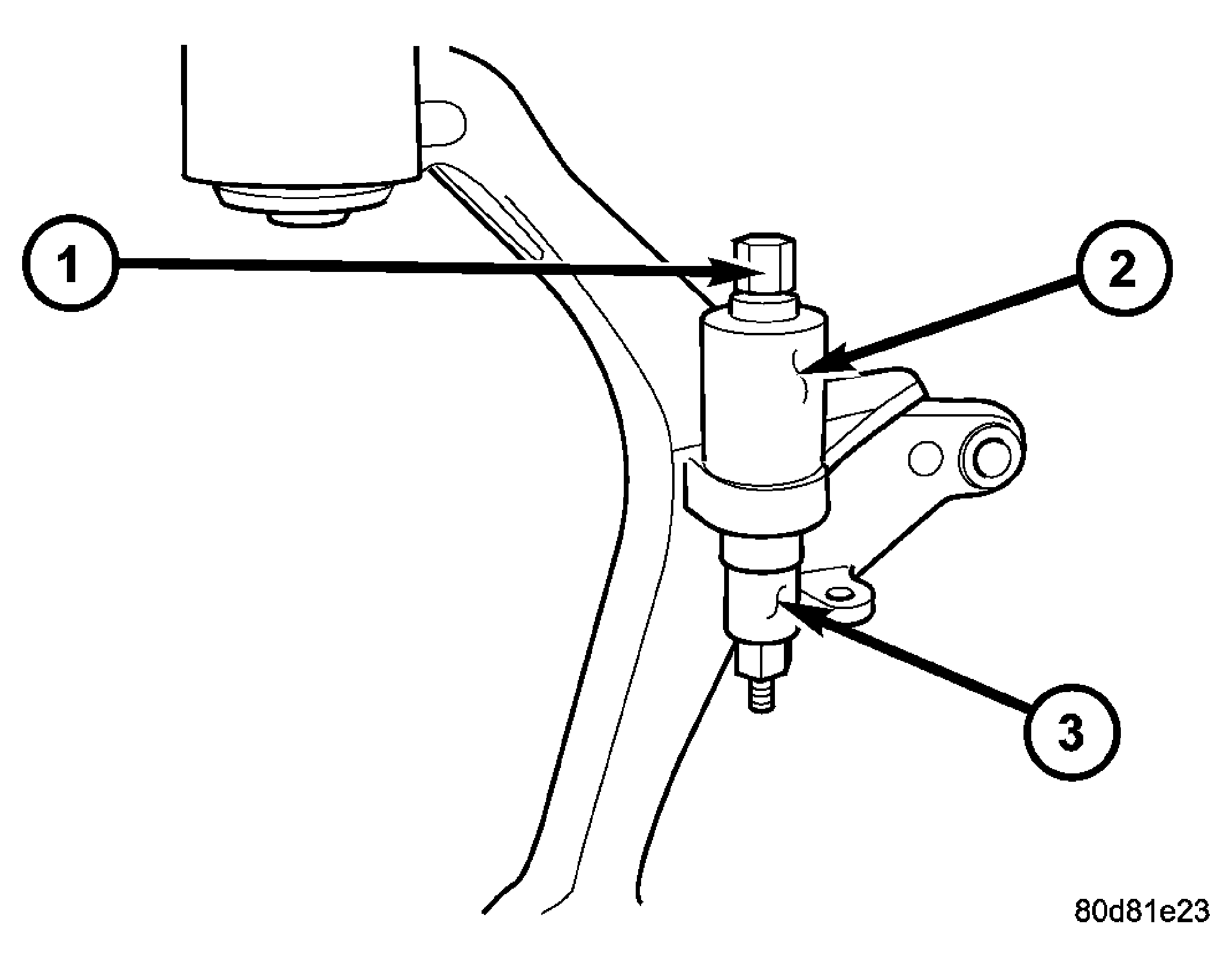

Fig 1: Clevis Bracket Bushing

Courtesy of DAIMLERCHRYSLER CORP.

1 - 8839 THREADED ROD

2 - 8858-1 RECEIVER

3 - 8858-3 DRIVER
