Installation - Lower Control Arm Bushing

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Extreme pressure lubrication must be used on the threaded portions of the tool. This will increase the longevity of the tool and insure proper operation during the removal and installation process.

Install the new lower control arm bushings into the lower control arm using tools 8858-5 (driver), 8858-6 (receiver) and the bearing with the threaded rod 8839 making sure to properly orient the bushing in the control. See Fig 1.

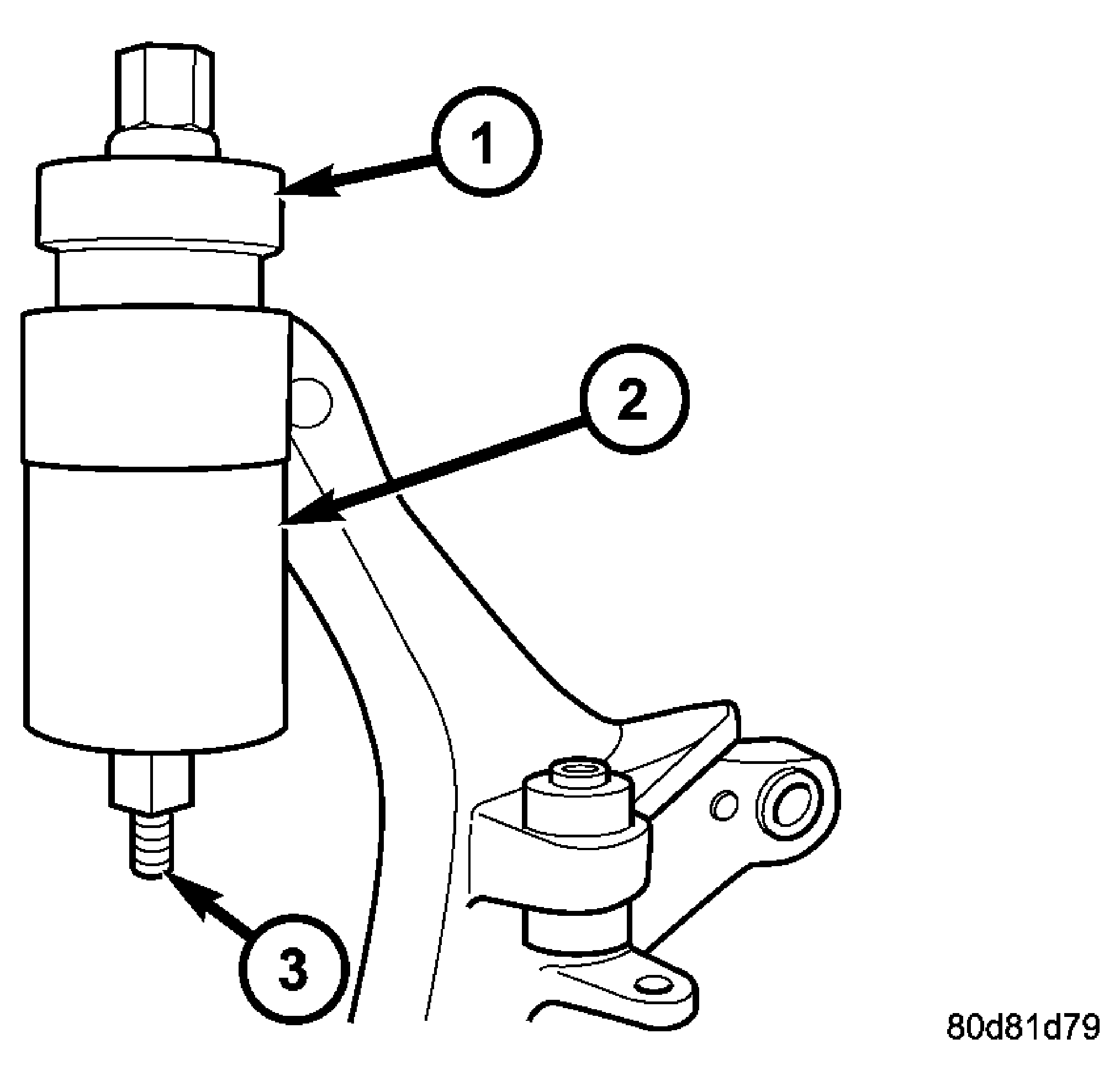

Fig 1: Lower Control Arm Bushing - Installation

Courtesy of DAIMLERCHRYSLER CORP.

1 - 8858-5 DRIVER

2 - 8858-6 RECEIVER

3 - 8839 THREADED ROD

Remove the control arm from the vise.
Install the lower control arm (Refer to SUSPENSION/FRONT/LOWER CONTROL ARM - INSTALLATION) .
Reset the vehicle ride height (Refer to SUSPENSION/WHEEL ALIGNMENT - STANDARD PROCEDURE) .
Perform a wheel alignment (Refer to SUSPENSION/WHEEL ALIGNMENT - STANDARD PROCEDURE) .
