Transfer Case Skid Plate: Removal

WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolts and remove the skid plate. See Fig 1.

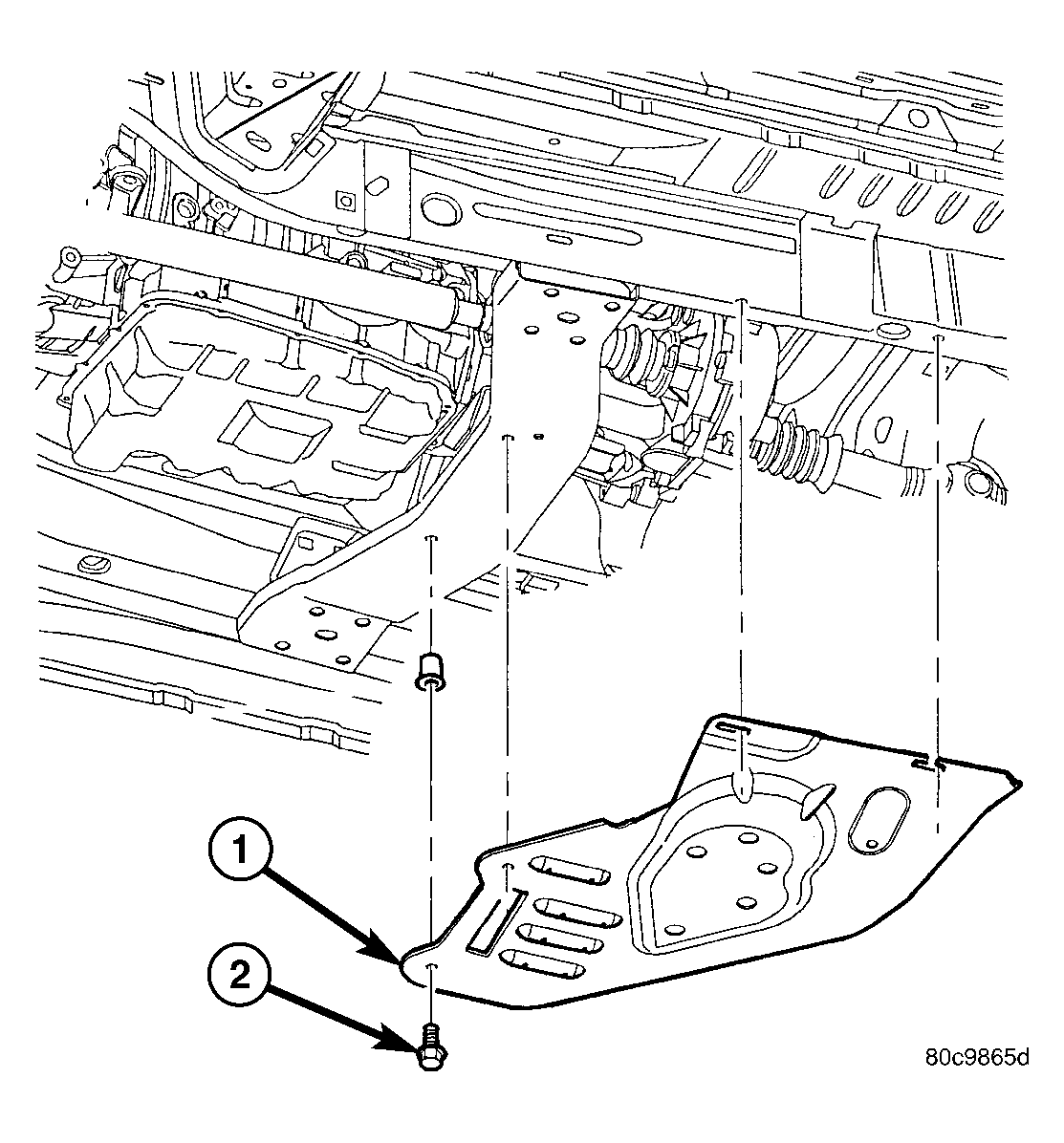

Fig 1: Skid Plate

Courtesy of DAIMLERCHRYSLER CORP.

1 - SKID PLATE

2 - BOLTS
