Trailer Hitch: Removal
WARNING: This page is about a different car, the 2005 Jeep Liberty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the tow hooks, if equipped. (Refer to FRAME & BUMPERS/FRAME/REAR TOW HOOK - REMOVAL)
- Disconnect trailer electrical connector.
- Support the hitch with a suitable lifting device.

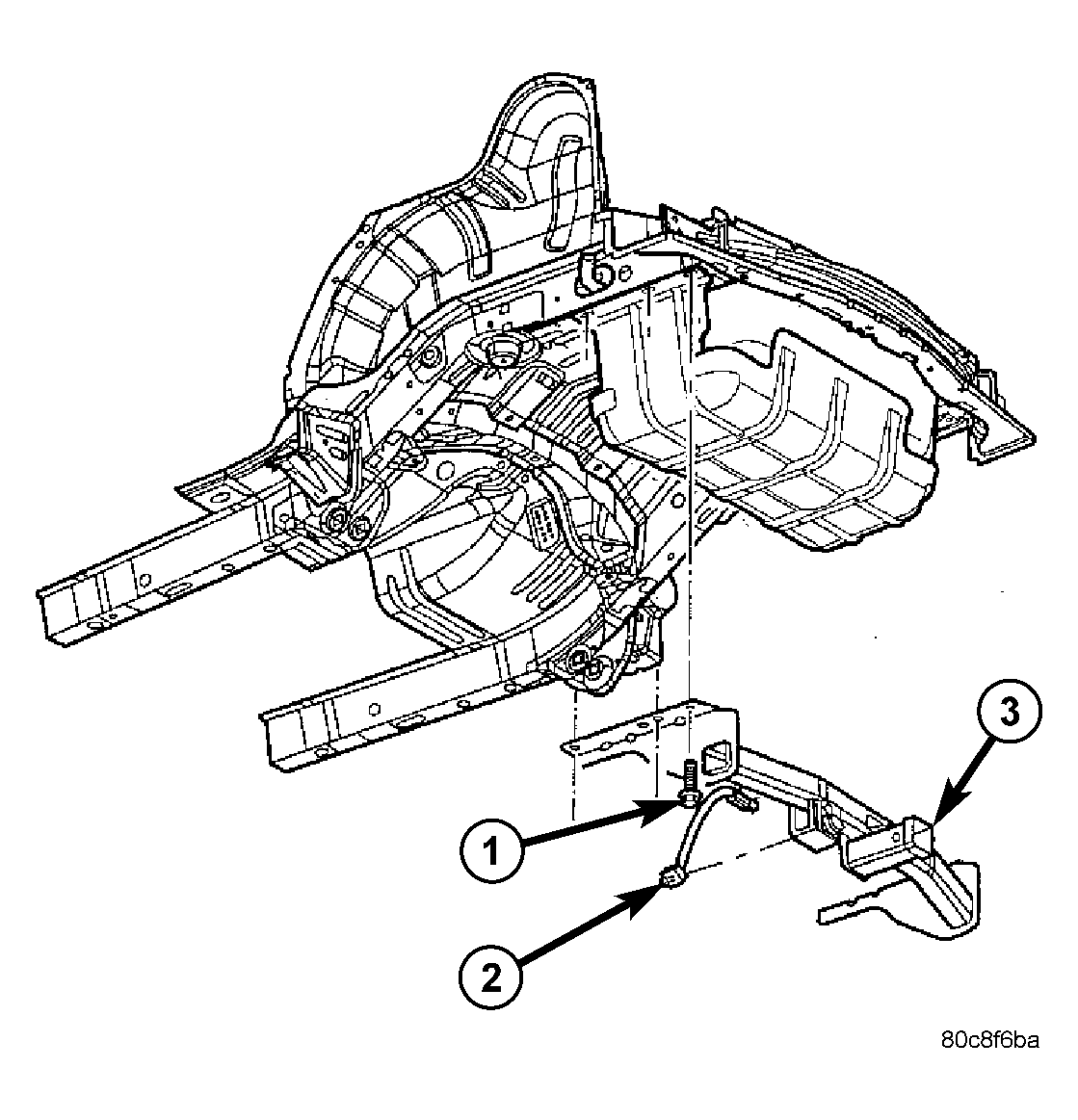

- Remove the bolts and remove the trailer hitch. See Fig 1.
| 1 - BOLTS |
| 2 - TRAILER LIGHTS ELECTRICAL CONNECTOR |
| 3 - TRAILER HITCH |
